€799,00 €899,00
  • Estimated Delivery:Dec 10 - Dec 14

Free Gift Included
  • FREE
    Front Rack
    €49.00
  • ENJOY €50 OFF Buy One U3
    CODE BF50
    ENJOY €100 OFF Buy Two U3
    CODE BFS100
    Color: Green
    Green
    Black
    White
    Type: Bike Only
    Bike Only
    WIth Front And Back Baskets
    With Waterproof Bike Rack Bag
    With Helmet
    Note

    U3 is expected to ship around December 16th

    保修.png__PID:4ab603a5-1fc4-4a08-8550-36f626fca5d4

    12-Month Warranty

    01运输中、物流-线性.png__PID:7e96a0c9-6515-4330-bdd4-4c4654b6947a

    Free Shipping

    免费保修 (1).png__PID:65156330-3dd4-4c46-94b6-947ab52c8e6f

    30 Days Return

    客服.png__PID:d44c4654-b694-4ab5-ac8e-6f6ddab22067

    24-hour Fast Response

    A Milestone in Urban Commuting.

    Not just for your daily routine, but a gateway to a healthier lifestyle

    1

    28 MPH

    Throttle Speed

    2

    750W/1056W

    Rated/Peak Motor

    3

    48V 13AH

    Battery

    路线.png__PID:b9ce603f-efea-482b-8b63-12a955026e43

    48-73 Km

    Range Per Charge
     (Estimate)

    充电器.png__PID:e38bbfc8-bdc5-4043-9abc-19ab8d5b621c

    5-6 Hours

    Charging Time

    齿轮,设置,设定.png__PID:baabe81e-1387-44b6-9262-a42e132799ca

    7 Speed

    Gear Shifting System

    More Convenient Options

    The U3 was developed in response to consumer demand. With the success and popularity of the U7 model in the market, in order to make Step-thru e-bikes available to more customers, we launched the more cost-effective U3. Unlike the U7 2.0, this model features a more affordable configuration for short trips and commuting, helping consumers to get a lighter and more portable e-bike with a lower budget.

    黑色.jpg__PID:8543f766-652b-4e0d-b25c-54d6ae3eb699
    U3电机2.gif__PID:711bb569-f79e-4103-b996-c49217911db8

    1056W Peak Brushless Motor

    Powered by a 750W brushless rear hub motor (1056W peak).75Nm of torque delivers plenty of power, faster starting speeds, and higher hill climbing ability. In electric-only throttle mode, the top speed is up to 28MPH, giving you a silky smooth ride!

    48V 13ah High-capacity Removable Battery

    Long-lasting performance with a 48V 13ah removable battery that can be easily installed and removed for charging when you need it. You can ride 48-73 Km in 5-6 hours per charge.

    电池、.jpg__PID:66652bae-0df2-4c54-96ae-3eb69919a381
    前叉.jpg__PID:6d91e5bc-24c1-4ae6-90d7-0b5d7f2e8fbb

    Front Fork And Seatpost Suspension

    Allows you to tackle uneven surfaces and rough terrain with confidence, a smooth and comfortable ride welcomes easy riding

    LCD Display

    Tracking your speed, pedal assist level, battery level and other ride essentials ensures you stay informed and in control throughout your journey.

    仪表.jpg__PID:929f3ad1-3900-484c-a1c3-3201809b3049
    前轮.jpg__PID:eacdd4f0-aa5b-4b1b-8b03-f4e953edbed6

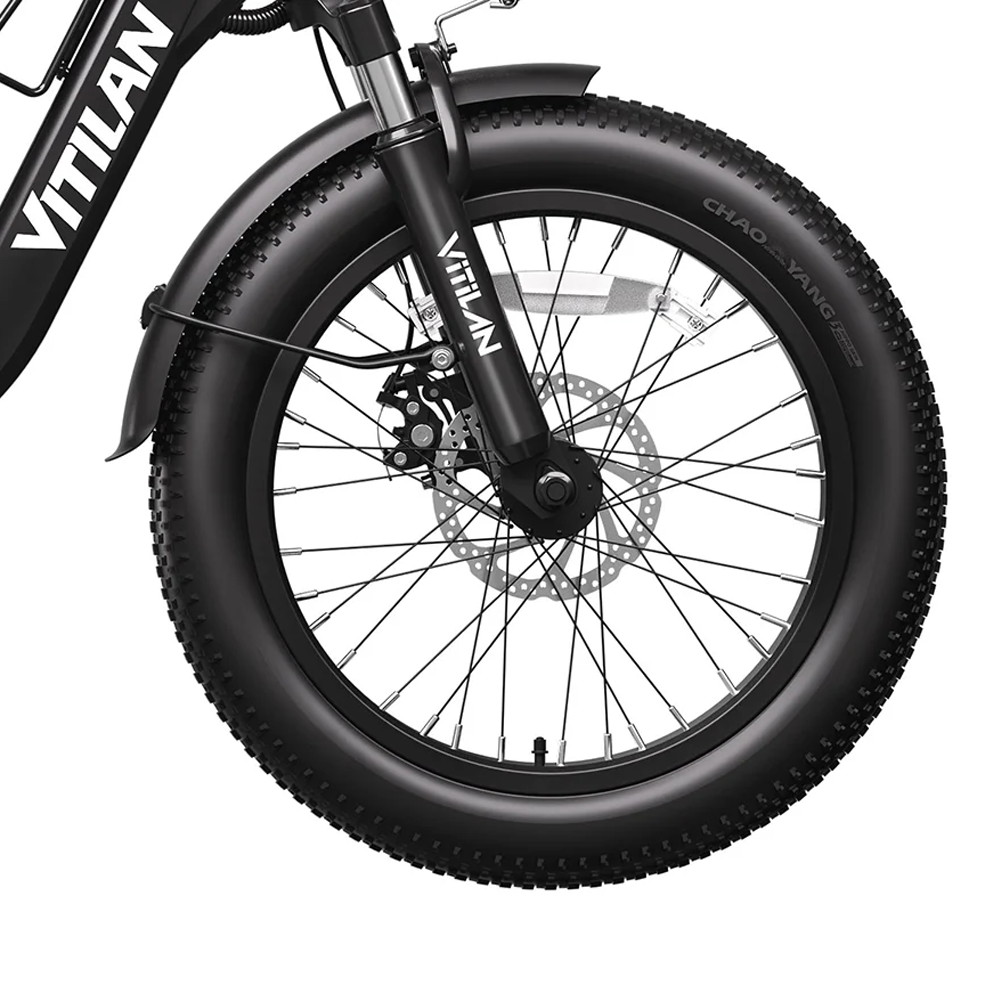

    20"*3" Spoked Wheels

    The 20*3.0 fat tires with granular pattern grip the ground more powerfully and anti-skid

    油门.jpg__PID:2afa3388-94d5-4d5b-9dae-b15810573774

    Pedal Assist & Throttle

    1-5 level pedal assist saving time and energy, even without hard pedaling, you can still keep up with the traffic easily,no worry of rush hour and being late for work anymore.

    变速.jpg__PID:49bc86a8-e936-43cc-a102-a77c3a467116

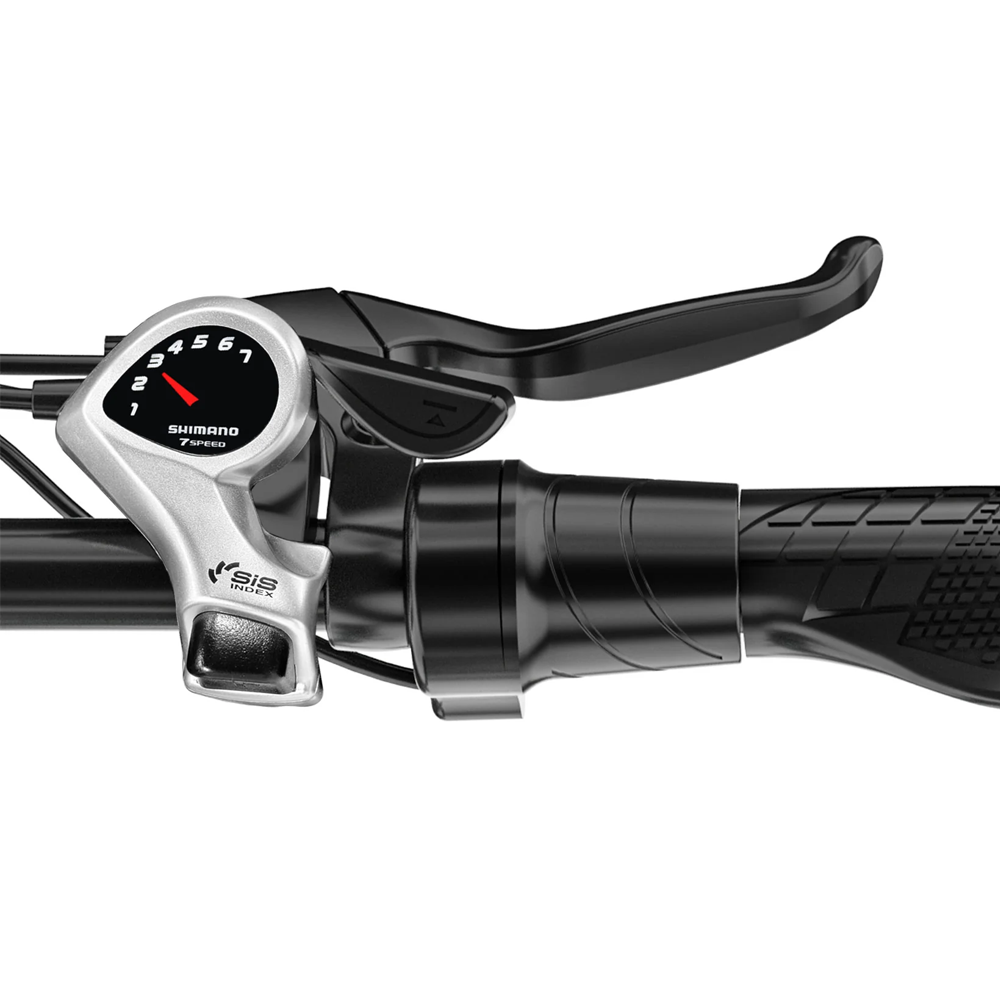

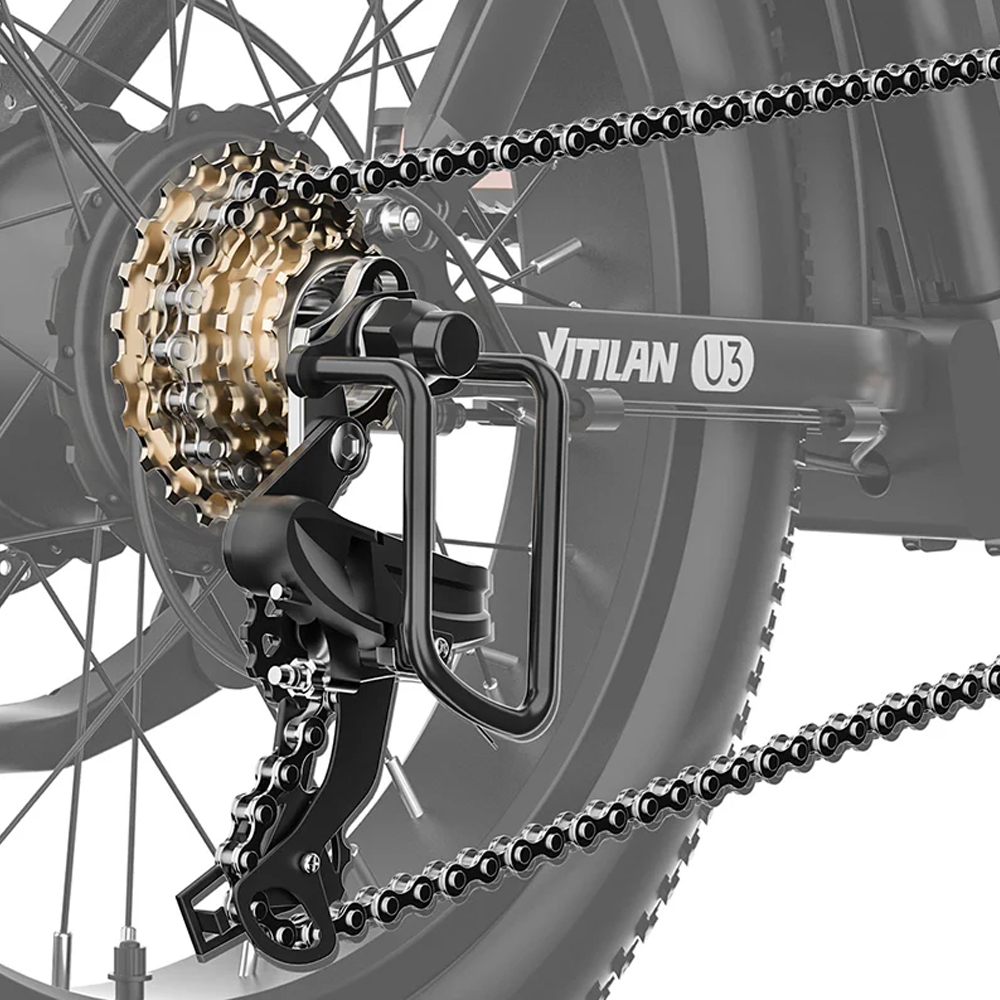

    Shimano 7 Speed

    You can choose different gears according to the road conditions, giving you a more comfortable riding experience.

    折叠.jpg__PID:aa5bbb1b-8b03-44e9-93ed-bed676f2ea60

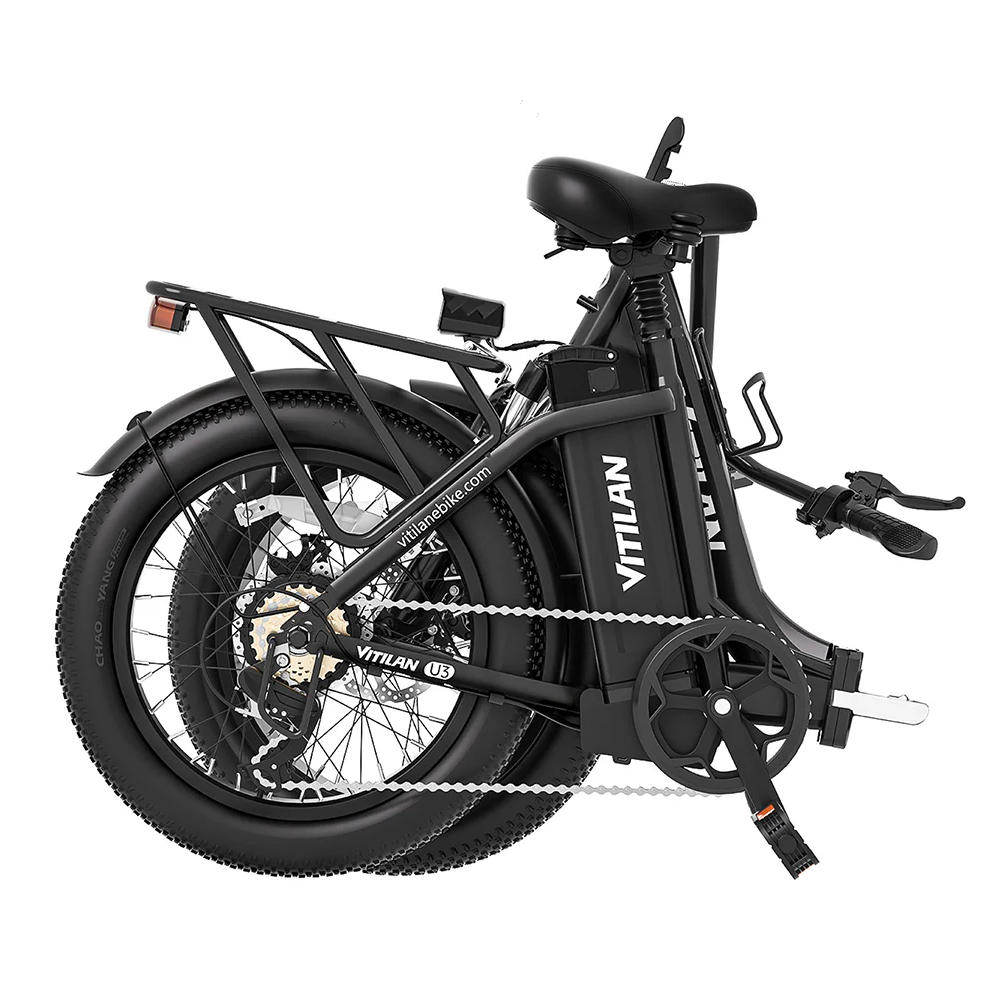

    Simple and easy to fold design

    Fold for storage and unfold the bike when you're ready to hit the streets or ride.

    刹车盘.jpg__PID:d4f0aa5b-bb1b-4b03-b4e9-53edbed676f2

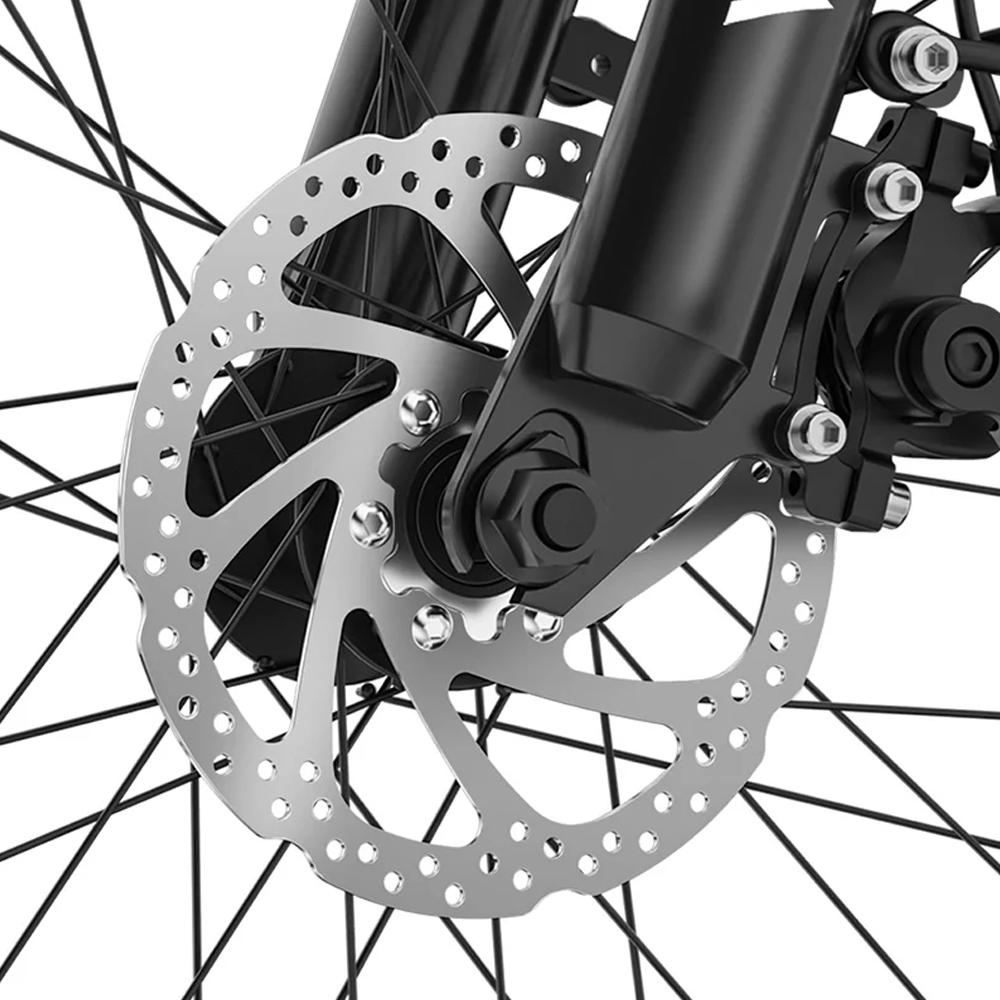

    160 mm Mechanical Brake

    Provides reliable braking power to give you peace of mind when travelling over different terrains.

    前后灯.jpg__PID:338894d5-bd5b-4dae-b158-10573774913c

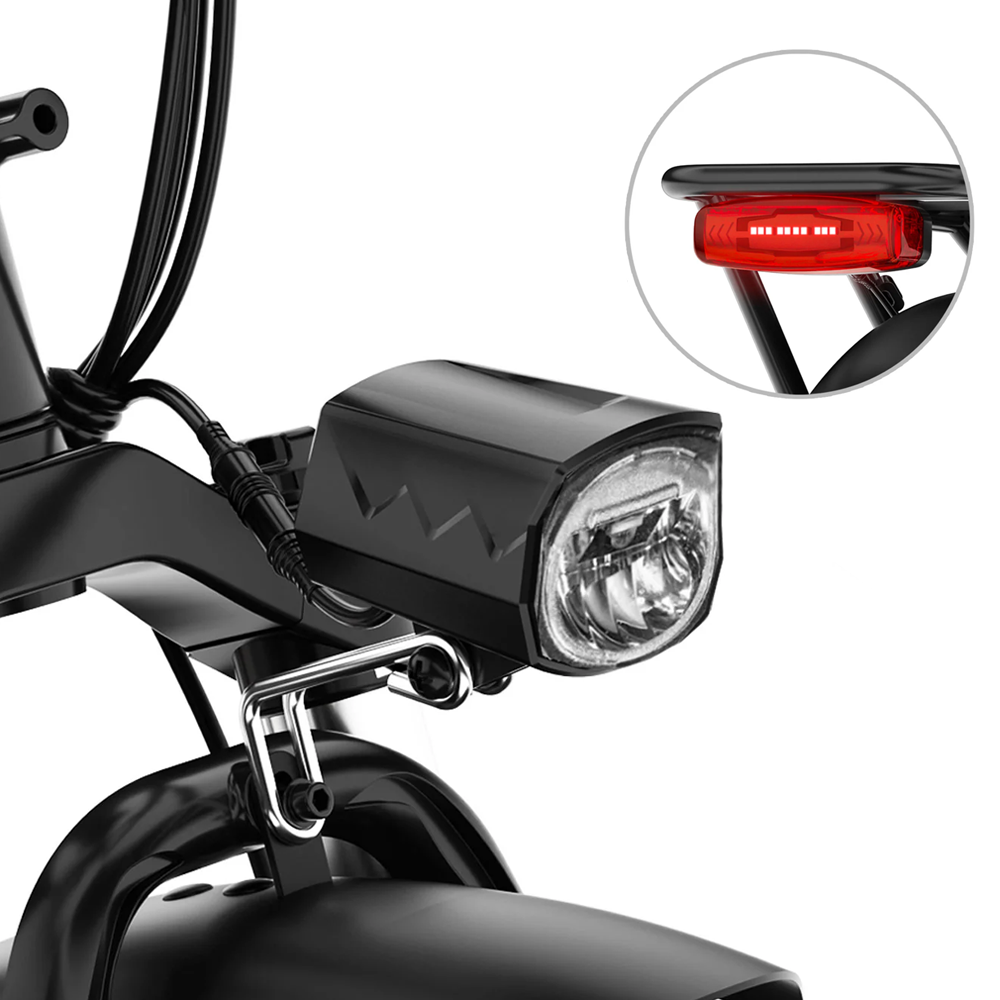

    Front and rear lights

    Illuminates and improves visibility on the road ahead in low light and dark conditions.

    The Main Features

    More detailed feature introduction for the U3 electric bicycle

    Compare

    ModelU3U7 2.0
    Price€899,00€1199,00
    Max Range 48 km(pure electric)
    /73 km(pedal assist)
    48 km(pure electric)
    /73 km(pedal assist)
    Ebike ClassClass 3 Class 3
    Battery Capacity 48V 13AhSAM-SUNG 48V 20Ah
    Gears 7-Speed Shimano7-Speed Shimano
    TireCHAOYANG 20" x 3" tiresCST 20" x 4" Puncture-Proof  Fat tires
    Brakes160MM Mechanical Disc Brakes180mm Hydraulic Disc Brake
    Motor 750W(Peak Motor: 1056W) 750W(Peak Motor: 1200W)
    Display LCD S2+ dsiplay
    FoldableYESYES
    SuspensionDual SuspensionDual Suspension
    Pedal Assist Mode1-5 Level Pedal Assist1-5 Level Pedal Assist
    Suggested Rider Height5'3"-6'5"5'3"-6'5"
    Charger54.6V 2.0A54.6V 3.0A
    Weight29.8 KG 32.9 KG
    Seat To FloorMinimum 34.25"
    / Maximum 39.3"
    Minimum 34.25"
    /Maximum 39.3"
    Suggested Rider Height5'3"-6'5"5'3"-6'5"
    Warranty12 Months18 Months
    Best ForAll TerrainAll Terrain
    ThrottleTwist Grip ThrottleTwist Grip Throttle
    Specification
    • Battery:  48V 13Ah
    • Range 48-73 Km
    • Hub Motor 1056W Brushless Gear Motor
    • Total Payload Capacity: 330 lbs
    • Suspension With Locking and Adjustment Functions
    • E-bike Class: Class 3
    • Bell/Horn: Electric Horn
    • Twist Grip Throttle
    • IP level IPX6
    • Recommended Rider Heights: 5'3" ~ 6'5"
    • Tires 20" x 3" Fat Tires
    • Gear Shifting System: Shimano 7 Speed Gear
    • Pedal Assist Intelligent 0~5 Level Pedal Assist
    • Frame Material ‎Aluminum
    • Controller 48V / 22A
    • Rear Light: Signal Turn Light/48V LED Light
    • Display: 48V LCD Display
    • Fender: Included

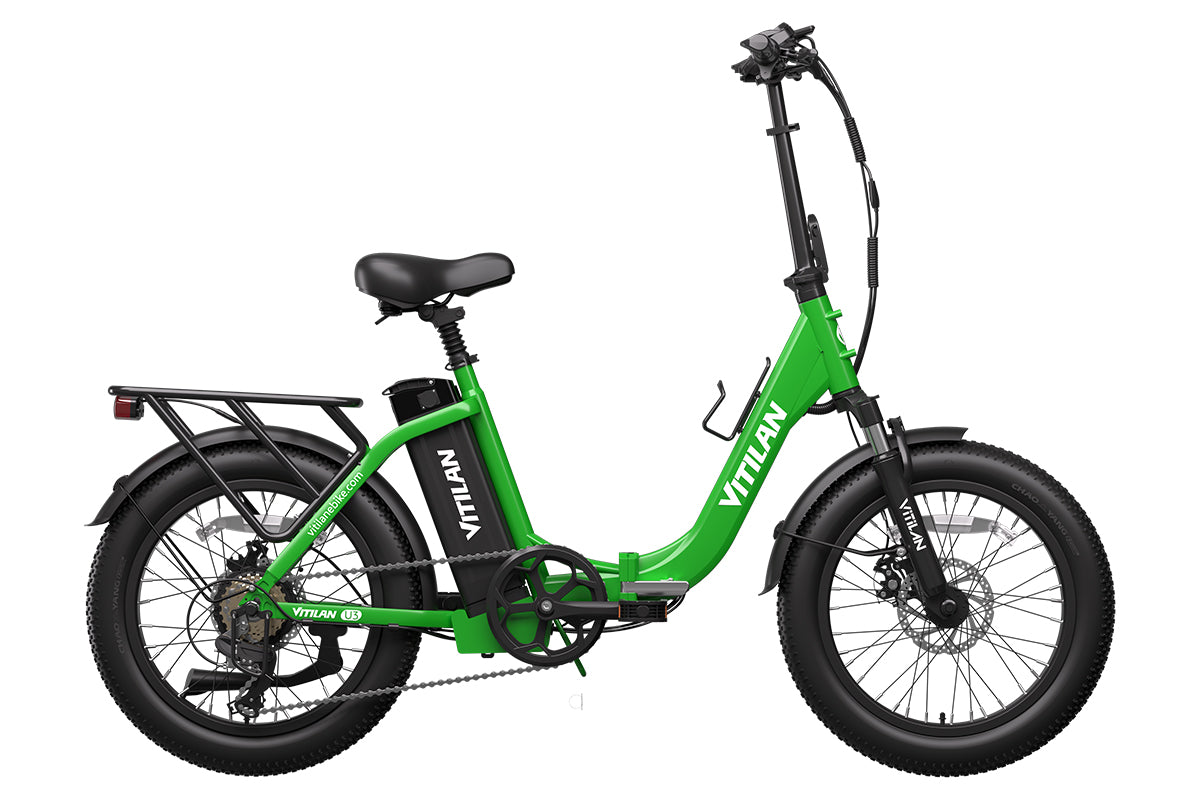

    Geometry
    12.jpg__PID:5f0d666d-ec6d-4e6e-b22b-09489bc396be
    • A: Total length 66.92"
    • B :Handlebar height 49.21"
    • C: Rear shelf height 24.4''
    • D: Lowest seat to floor 33.46"
    • E: Limit height of seat bag 38.18"
    • F: Top tube length 22.83"
    • G: Frame to ground height 13.58''
    • H: Handlebar length 24.4"
    • І: Head tube length 16.73"
    • J: Wheelbase 49.21"
    折叠尺寸.jpg__PID:10b9d3ea-7b82-4e25-a83b-b031d3377f7f
    • A Height: 35.82 inches (910mm)
    • B Length: 30.51inches (775mm)
    • C Width: 16.14 inches (410mm)

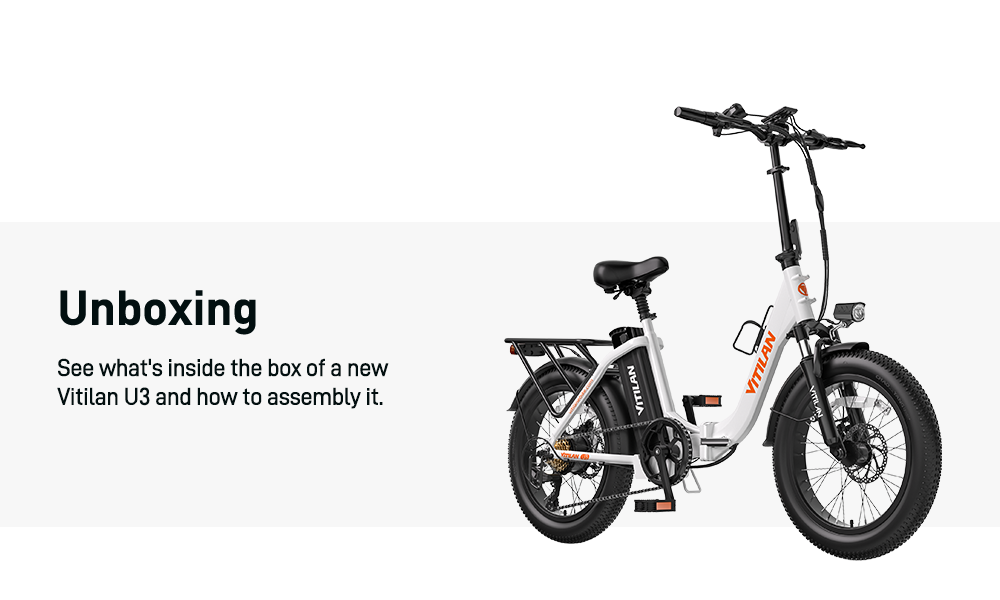

    Installation & Use
    U3.jpg__PID:9449e254-1c18-4f22-98d2-3f732ef3eee6
    FAQS
    When can I expect it to ship?

    The U3 is currently a pre-order model and is expected to ship on August 19th, upon arrival we will ship it to you within 24 hours and expect it to arrive at your address in 3-7 business days.

    Does my Jasion ebike come pre-assembled?

    Your e-bike arrives 90% assembled. There are just a few pieces to put into place once you take the bike out of the box. For unboxing and setup instructions, please follow the guides on our U3 manual.

    What is the maximum speed of each PAS level?
    • PAS1 Top speed 16mph
    • PAS2 Top speed 18mph
    • PAS3 Top speed 20mph
    • PAS4 Top speed 23mph
    • PAS5 Top speed 28mph
