More Features
Technical Specifications:
Motor Hub:
52V 1000*2W(peak 1500*2W), max torque 75Nm
Battery:
52V, 25Ah, 1300Wh Battery
Charger:
58.8V 2.8A DC2.1 charging head
Display:
With Fahrenheit temperature display,with Lishui controller Adjustablesteering gear shift Adjustable cruise contol
Throttle Assist:
Thumb Throttle
Headlight:
High output Integrated LED, IPx6
Pedal Assist Range:
97 KM
Throttle Range:
80 KM
Pedal Assist:
I-5 Level, Cadence Sensor
Charging Time:
0-80% 4 Hours, 0-100% 6 Hours
Power & Energy:
Peak Motor
1000/1500W
Top Speed
25KM/H
Max Range
80-97 KM
Battery
52V 25Ah
Gear Shifting System
7 Speed
Charging Time
8-9 Hours
Size
Standard: 5’3”-6’5”
SIZE
Wheelbase
44.09"
Total length
70.86"
Handlebar height
43.3"
Frame to ground height
29.53''
Lowest seat to floor
31.1"
Maximum seat to floor
38.1"

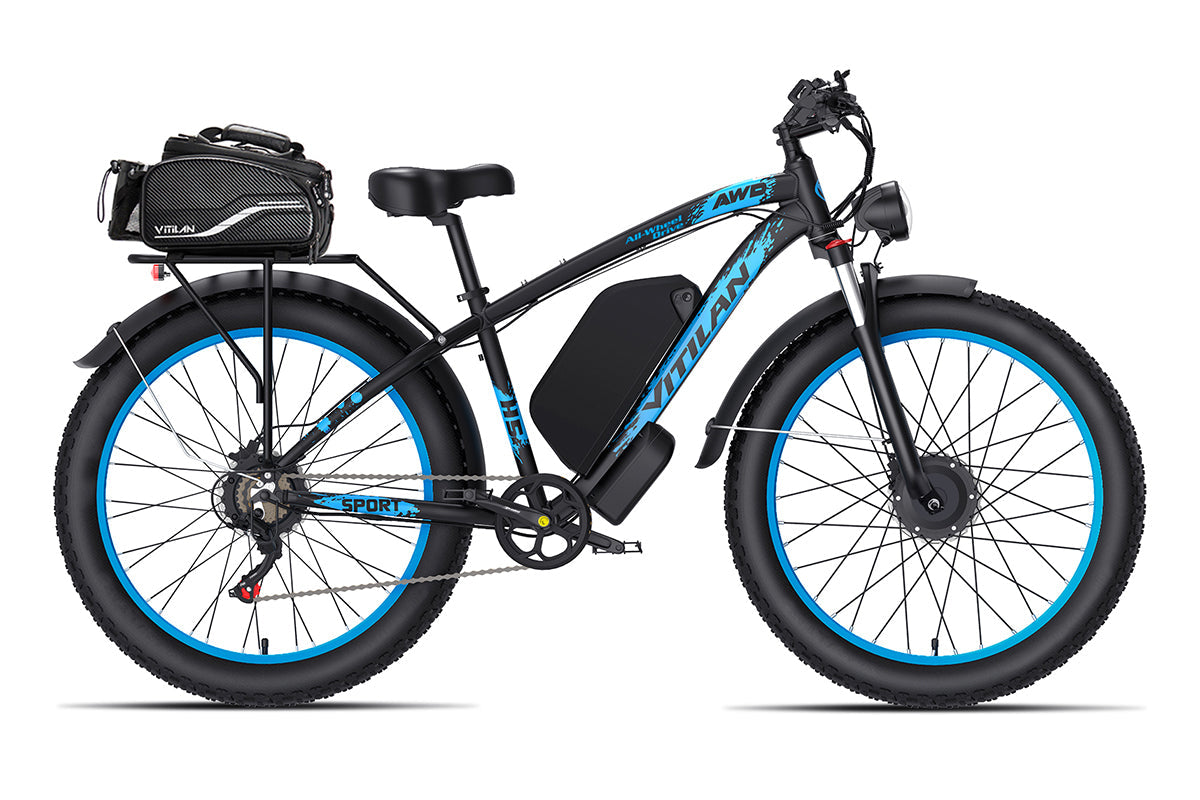

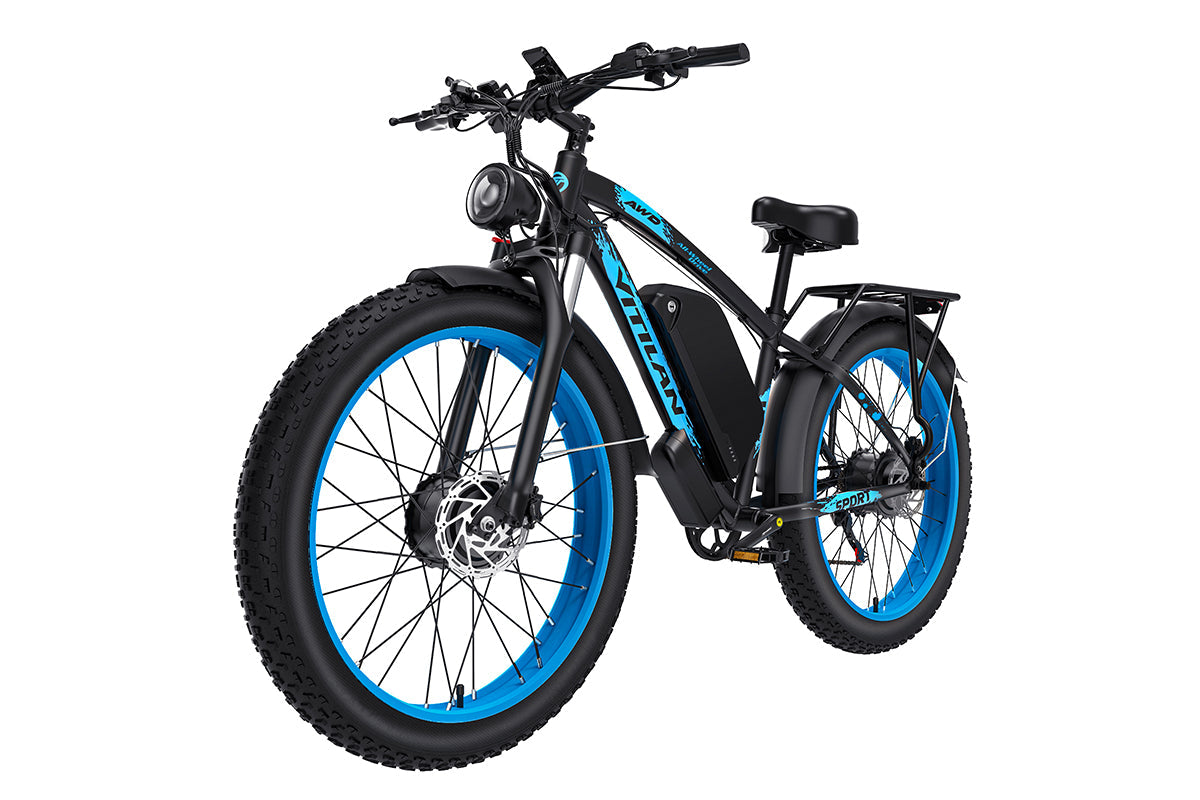

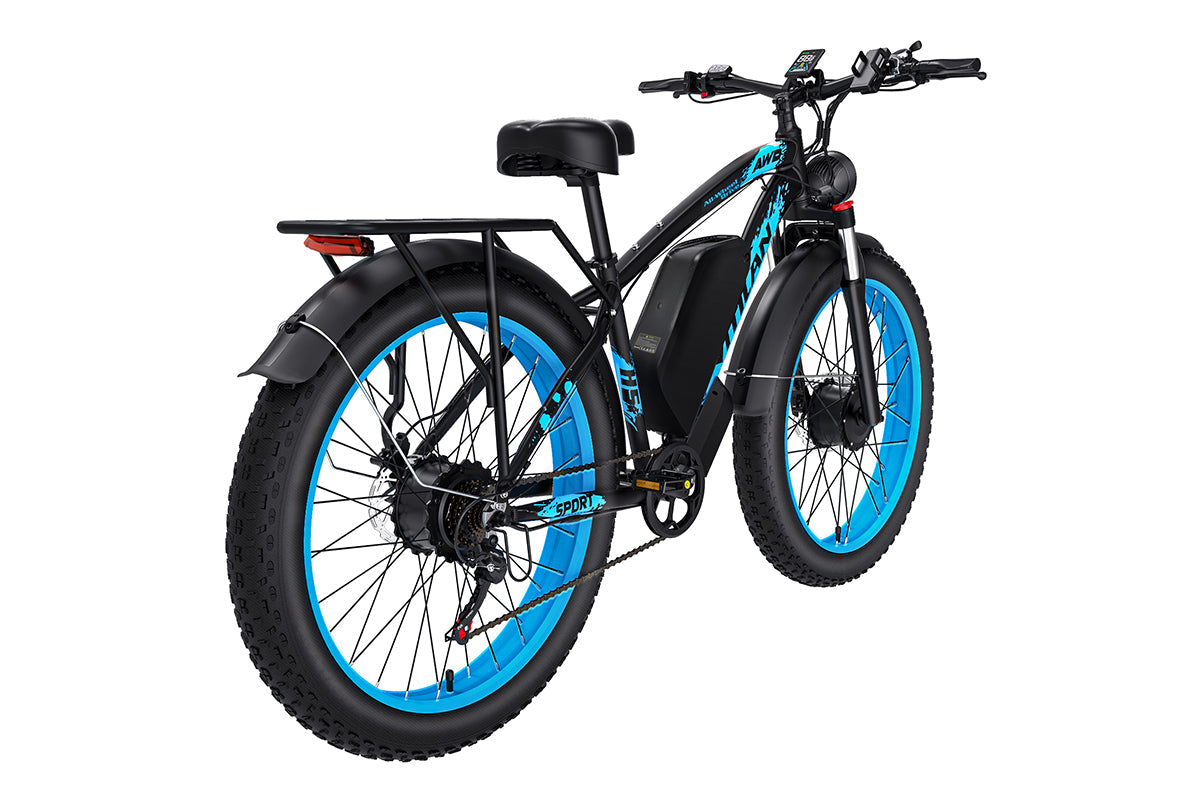

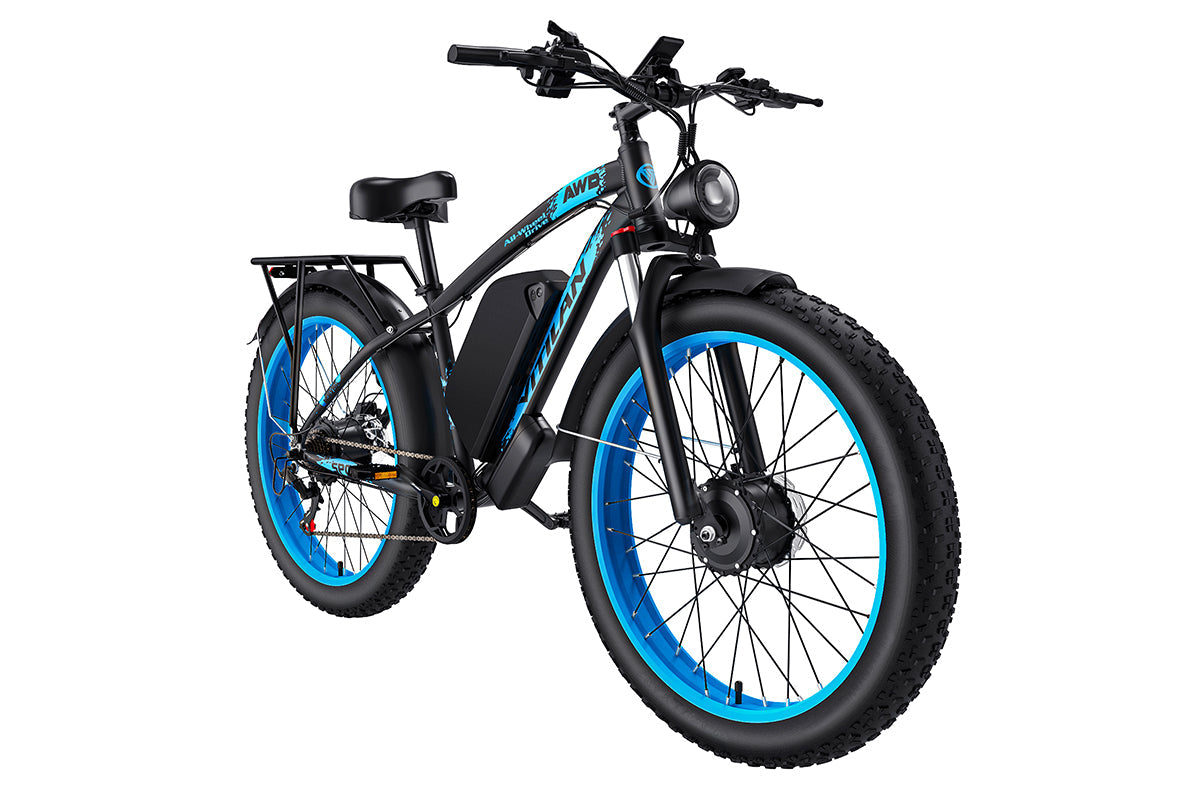

More Power for All Terrains
With its CHAO YANG 24-inch × 4.0-inch wide tyres, powerful 3000W dual motors, upgraded 25Ah high-capacity battery and frame design, the H5 is a powerful electric bike that can effortlessly tackle any terrain. Feel the wind on your cheeks, turning every ride into a liberating and exhilarating adventure.
This model has an initial speed of 25 km/h; customers may remove the speed limit according to their requirements.

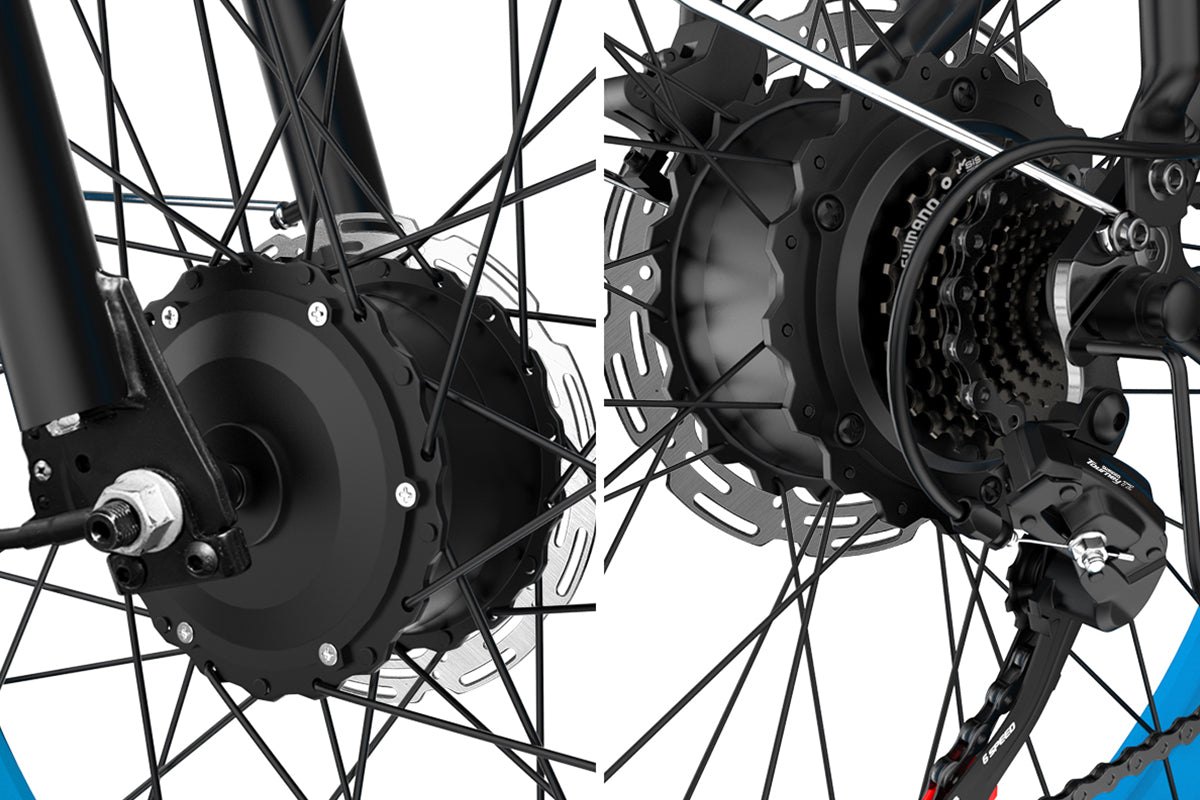

High-power dual motors
Powered by dual 1000W brushless rear hub motors with a combined peak output of 3000W, this e-bike delivers an impressive 75Nm*2 of torque for explosive acceleration and outstanding climbing performance. Reach speeds of up to 65 km/h in electric-only throttle mode while enjoying a silky-smooth and stable ride. From mountains and trails to desert, sand, and city streets—no terrain is out of reach.
3000W
Motor Power
65 KM/H
Default Speed
75Nm*2
Torque Provided

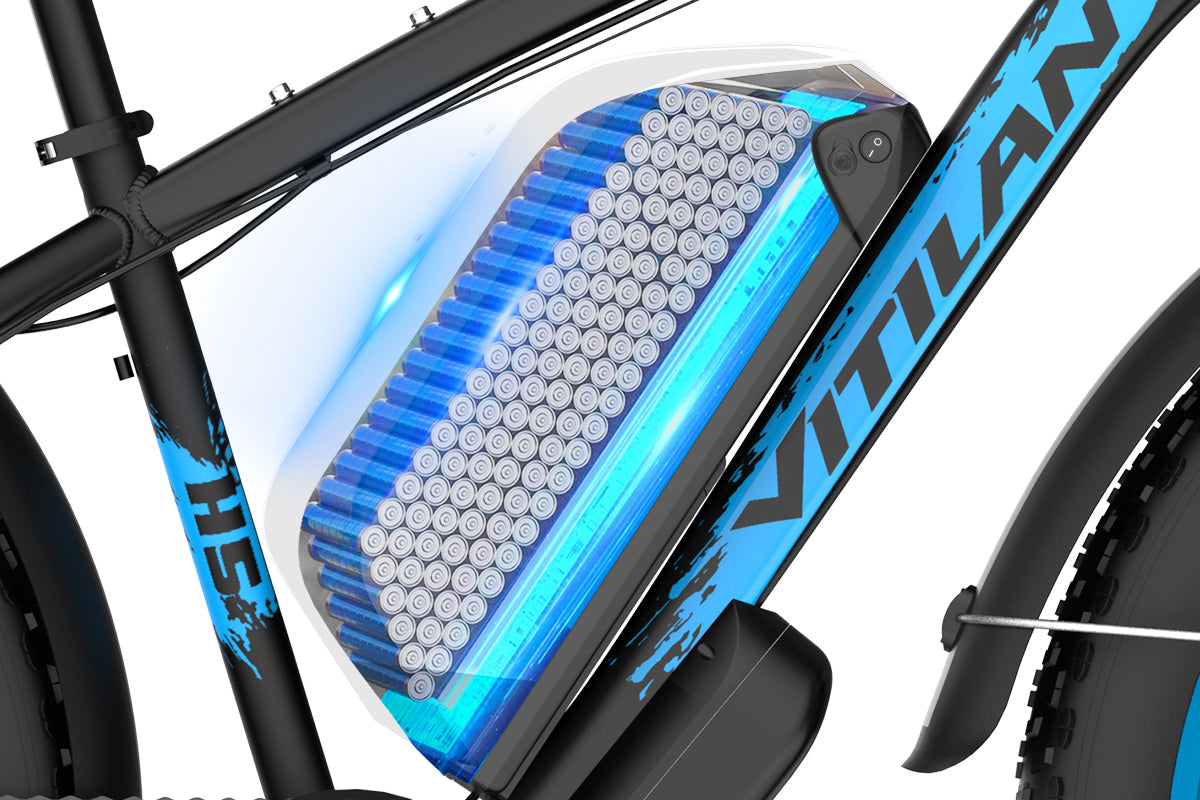

High-Capacity Removable Battery
Equipped with a powerful 52V 25Ah removable battery, this e-bike delivers long-lasting and reliable performance. The battery can be easily removed for convenient charging at home or in the office. With a single charge, ride 80–97 km and enjoy 8–10 hours of uninterrupted adventure, making every trip worry-free and more liberating.
1300 W
Battery Capacity
80-105 KM
Miles Per Charge
8-9 Hours
Charging Time
Suspension Fork with Lock
The suspension fork absorbs shocks from uneven surfaces and rough terrain, giving you a smooth and comfortable ride. With the lock feature, you can adjust firmness for stability on flat roads or maximum comfort on trails, making every ride effortless and enjoyable.

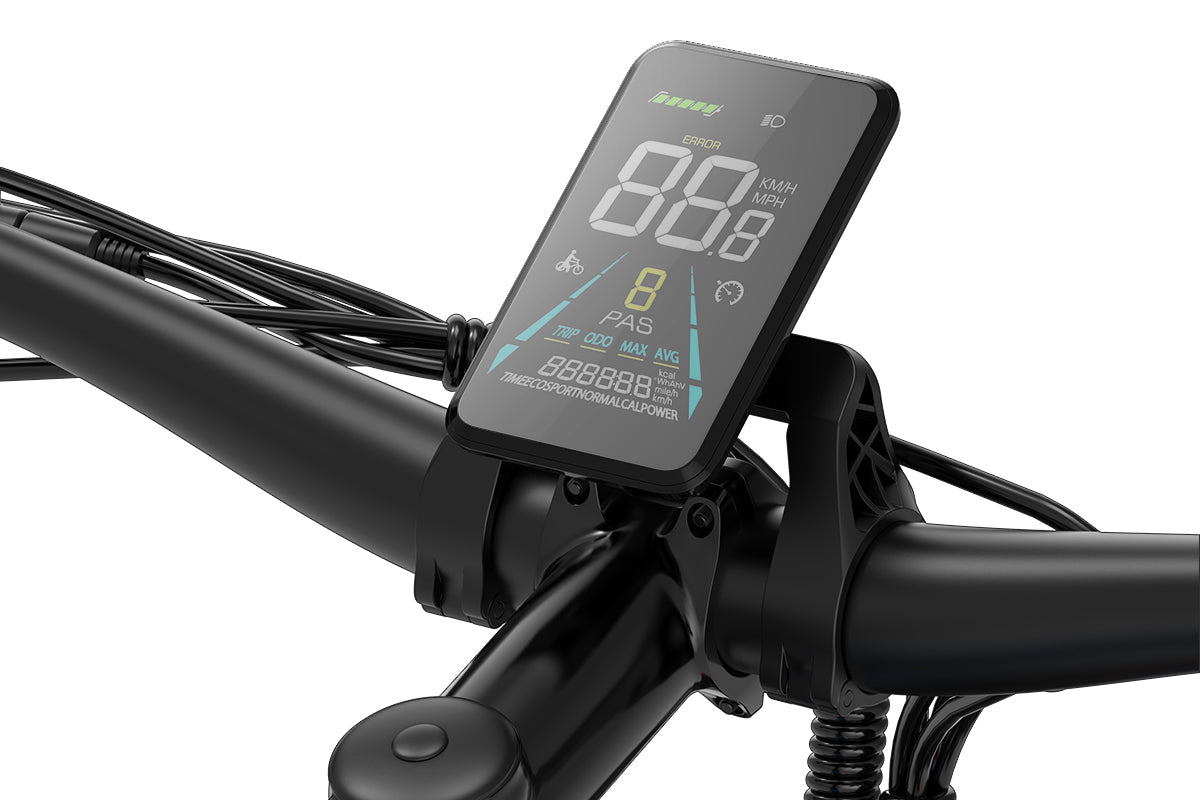

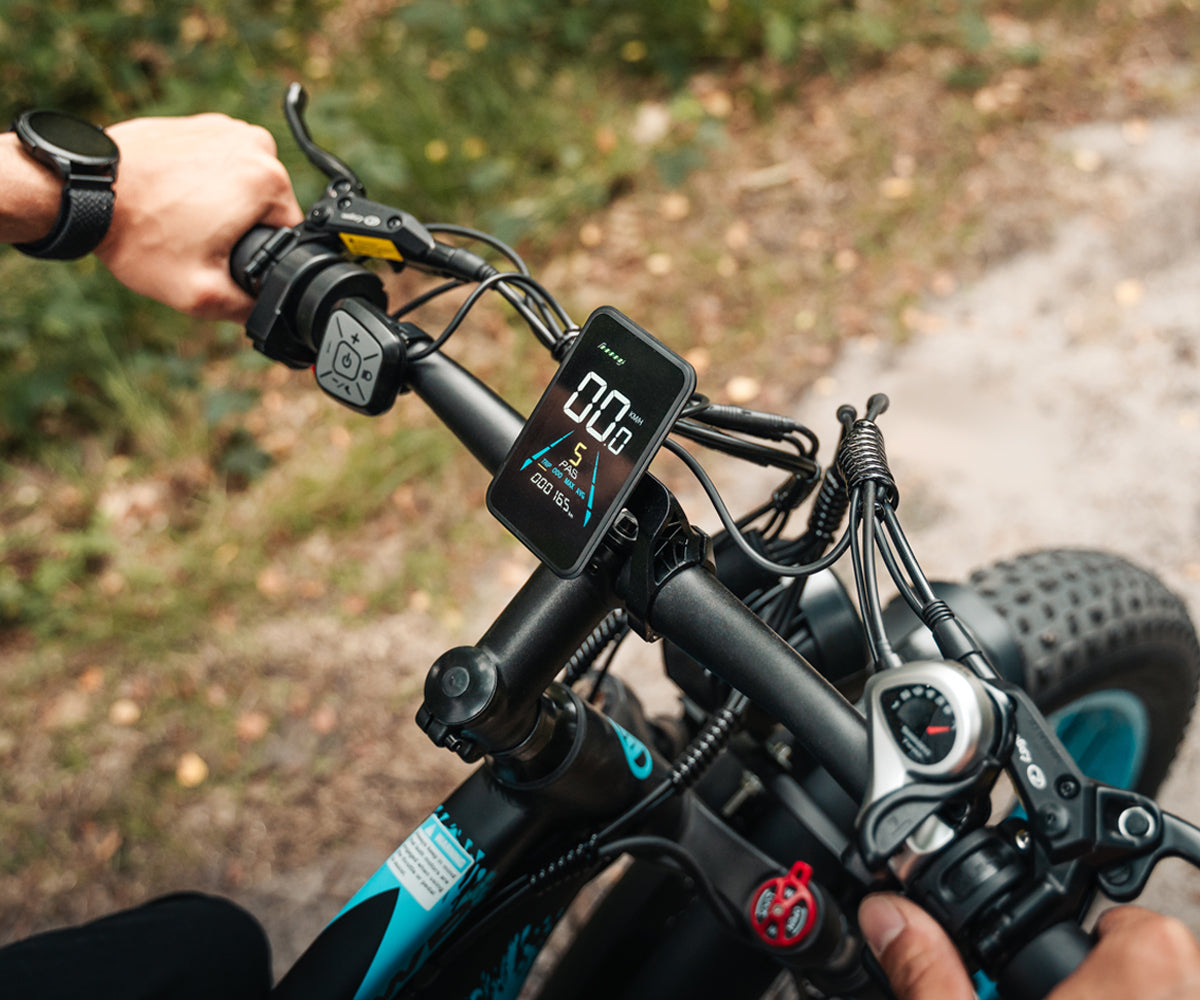

LCD Display
The clear LCD display keeps you fully informed and in control by showing speed, pedal assist level, battery status, and other essential ride data. Easily monitor your performance and ride with confidence, knowing you have all the information you need at a glance.
Electronic Control PAS Levels
PAS Levels Corresponding Speed and Range
PAS-1
PAS-2
PAS-3
PAS-4
PAS-5
Test results based on a 170 lbs rider on flat roads at 33°C. Actual range may vary based on terrain and riding conditions.
More Features
Pedal Assist & Throttle
With 1–5 levels of pedal assist, you can save time and energy while riding. Even without strenuous pedaling, you can easily keep up with traffic and glide through rush hour—no more worrying about being late for work. The throttle provides instant power whenever you need a boost, making every ride effortless and efficient.

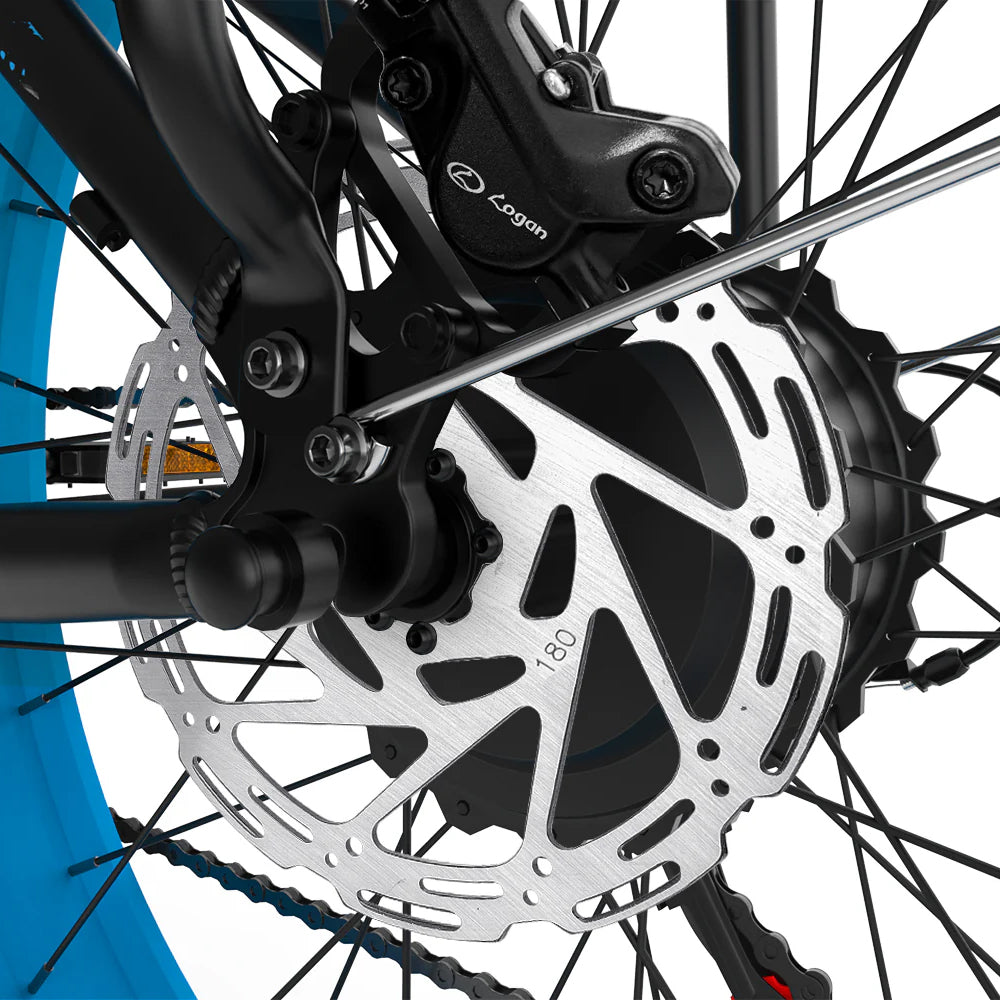

LOGAN Hydraulic Brake
Delivering strong and reliable braking power, LOGAN hydraulic brakes give you confidence and control on every ride. Whether navigating city streets, rugged trails, or slippery surfaces, stop safely and smoothly, ride after ride.

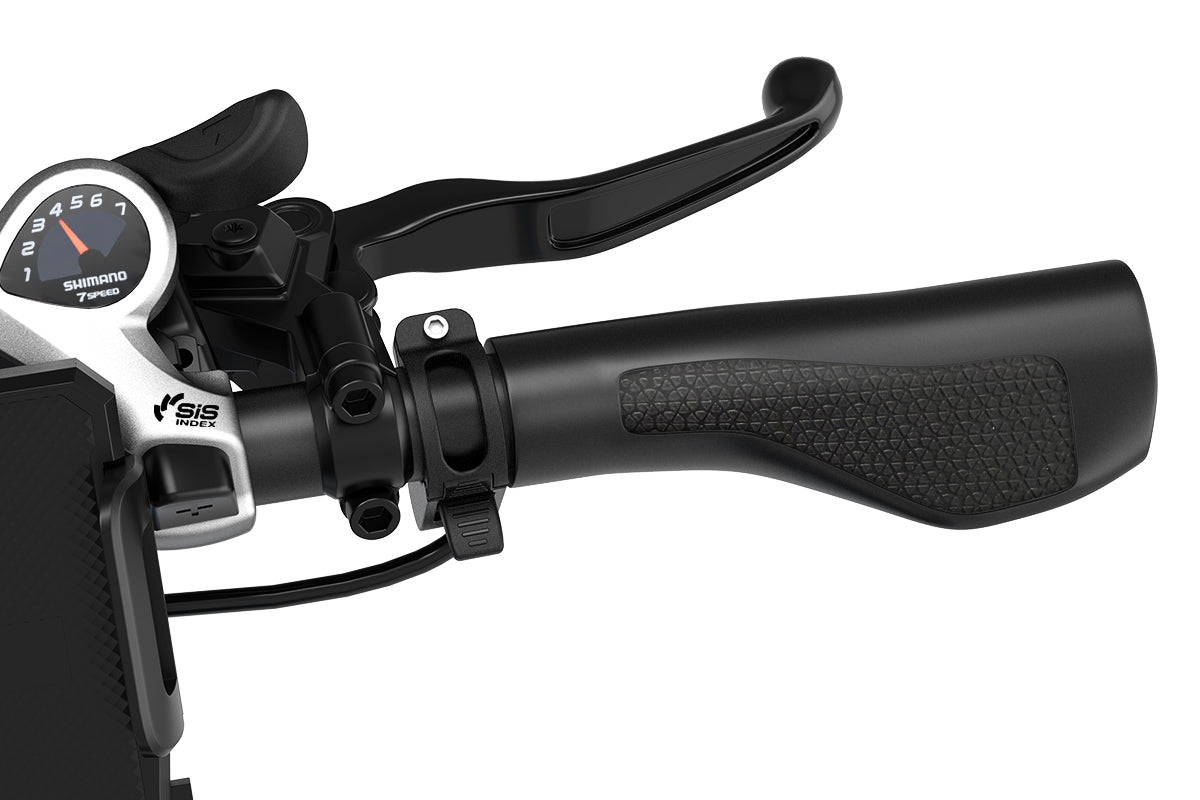

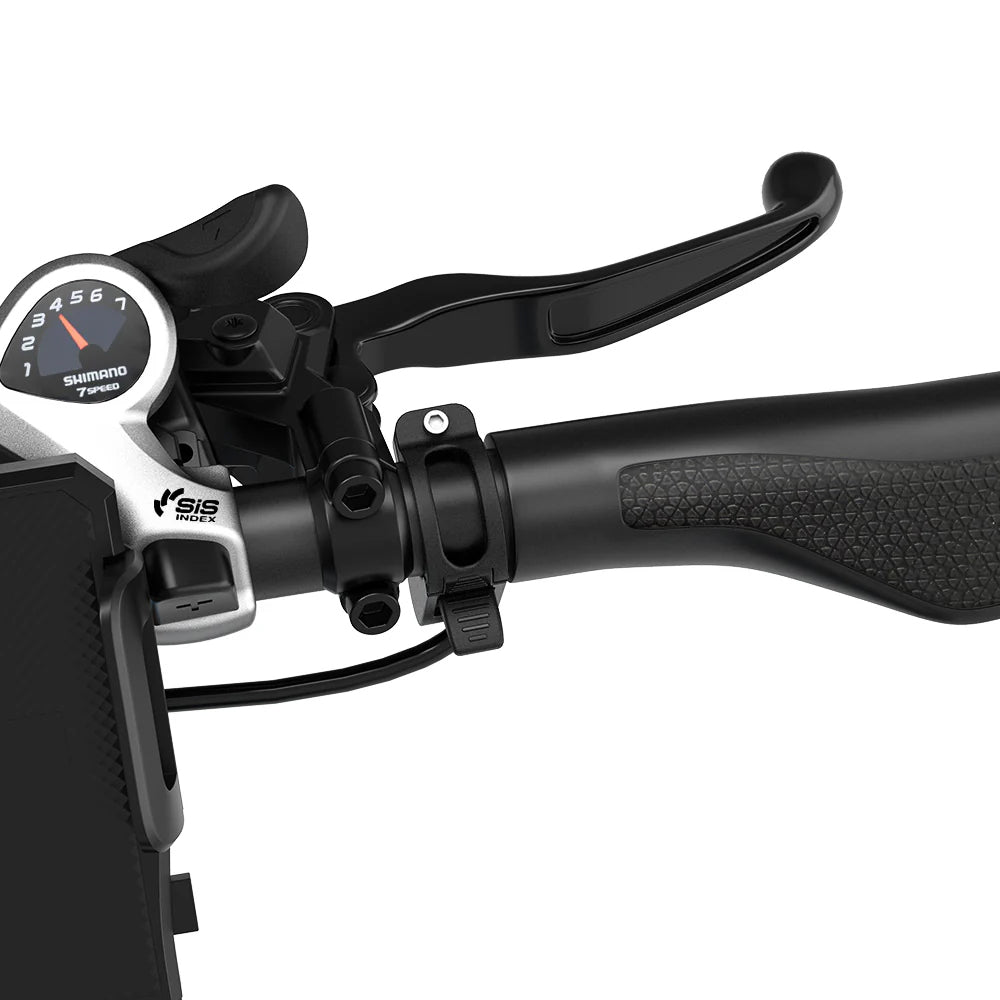

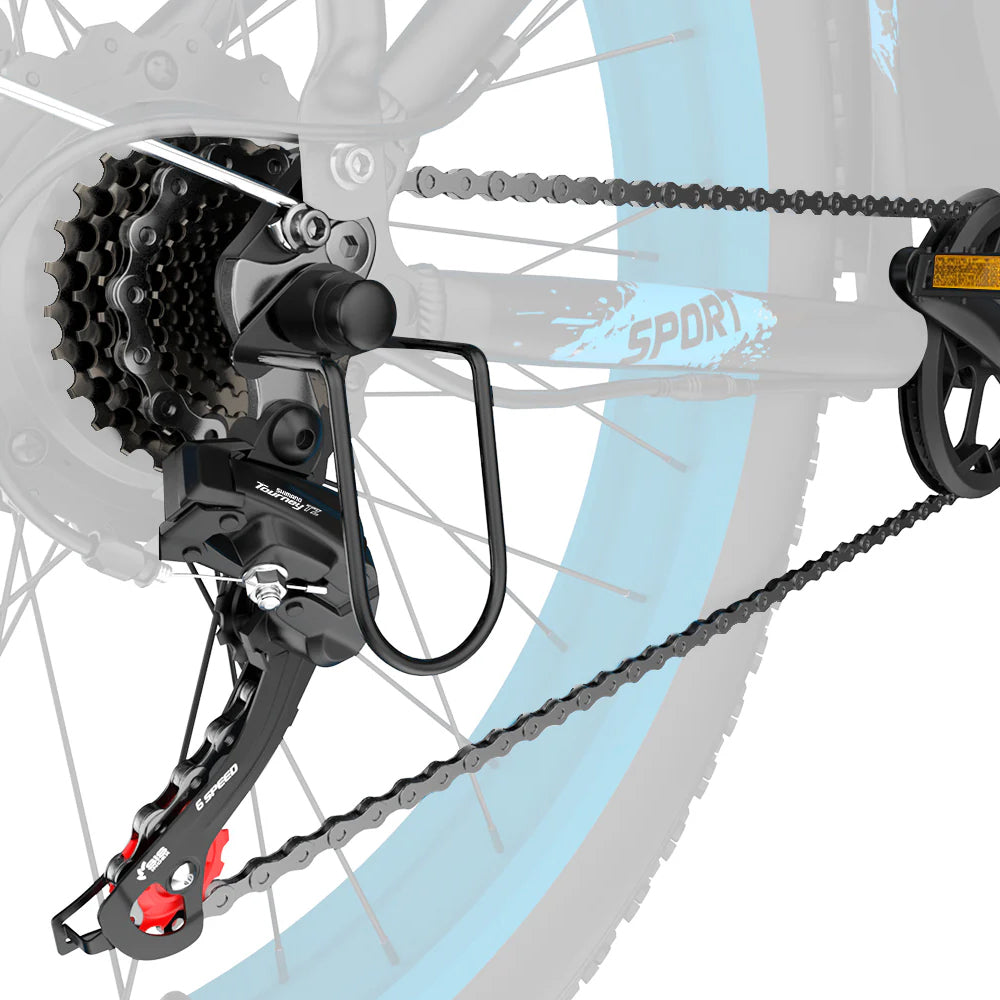

Shimano 7-Speed Gear System
Easily switch between 7 gears to match any road condition, giving you smooth, efficient, and comfortable rides. Whether climbing hills, cruising city streets, or tackling trails, enjoy precise control and a more enjoyable cycling experience.

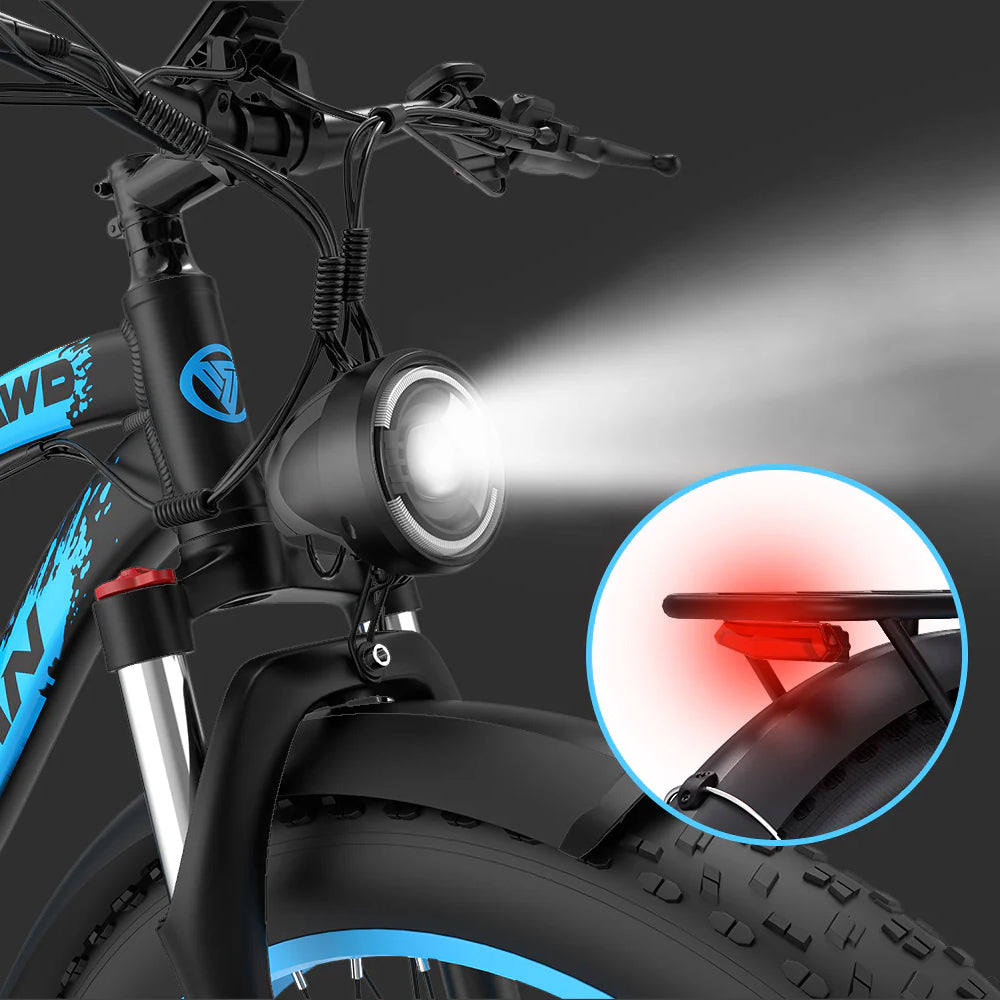

Front and Rear Lights
Bright front and rear lights enhance visibility in low-light or dark conditions, keeping you safe and seen on every ride. Whether commuting at night or exploring off-road trails, enjoy confident, worry-free riding anytime.

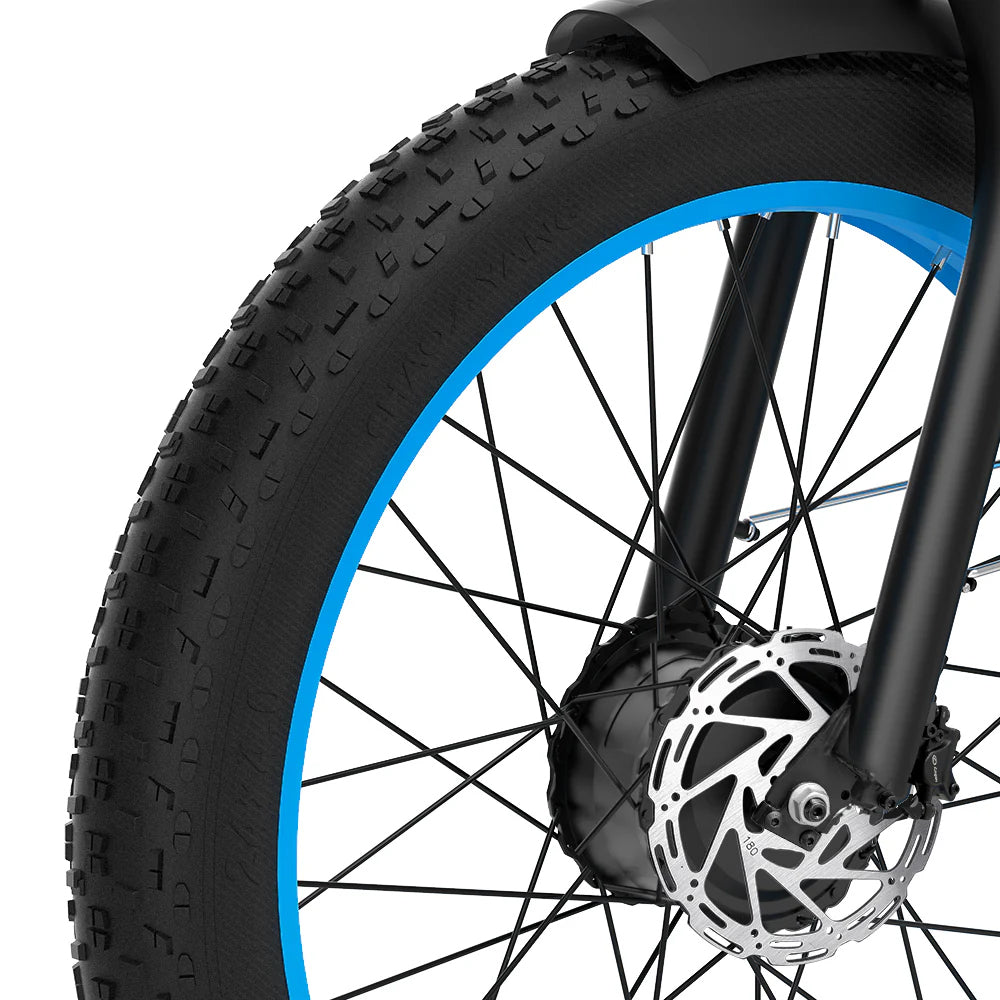

CHAO YANG 24" x 4.0" Fat Tires
The 24" x 4.0" CHAO YANG fat tires feature a rugged, granular tread that grips the ground firmly for superior traction and anti-skid performance. Conquer diverse terrains—whether sand, mud, gravel, or city streets—with confidence and stability on every ride.

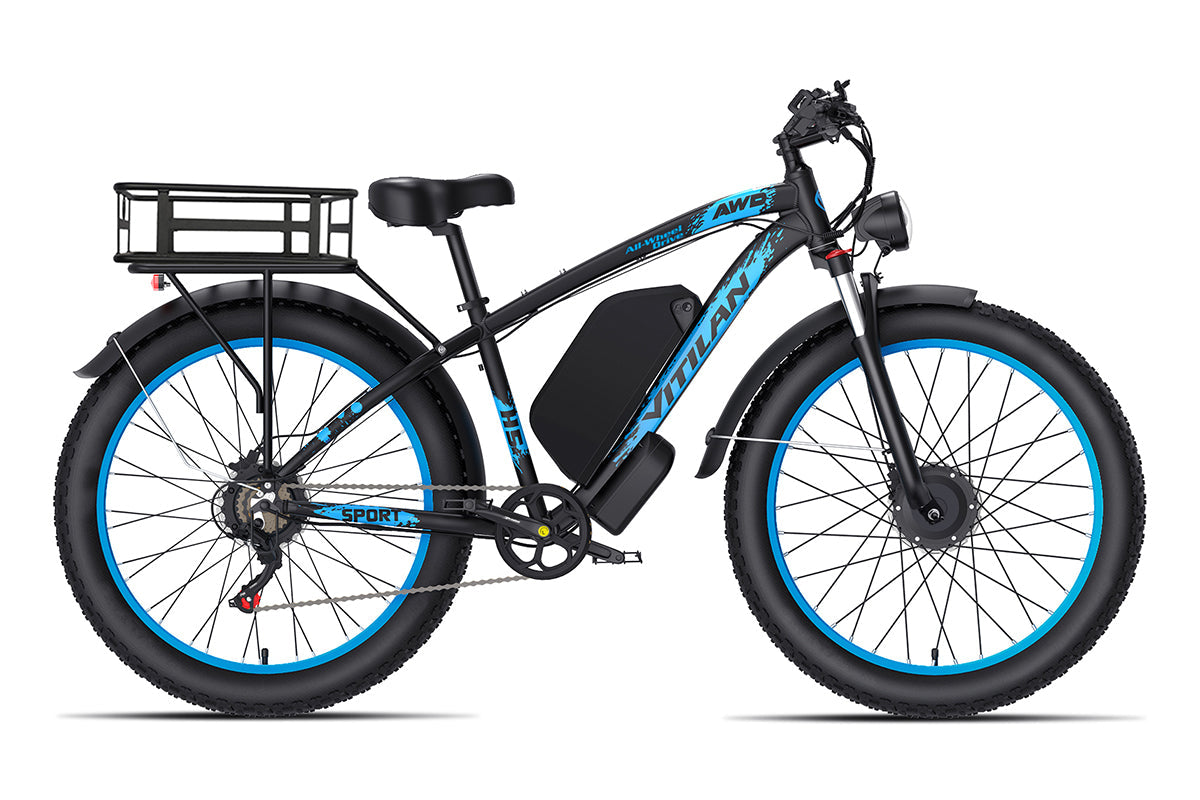

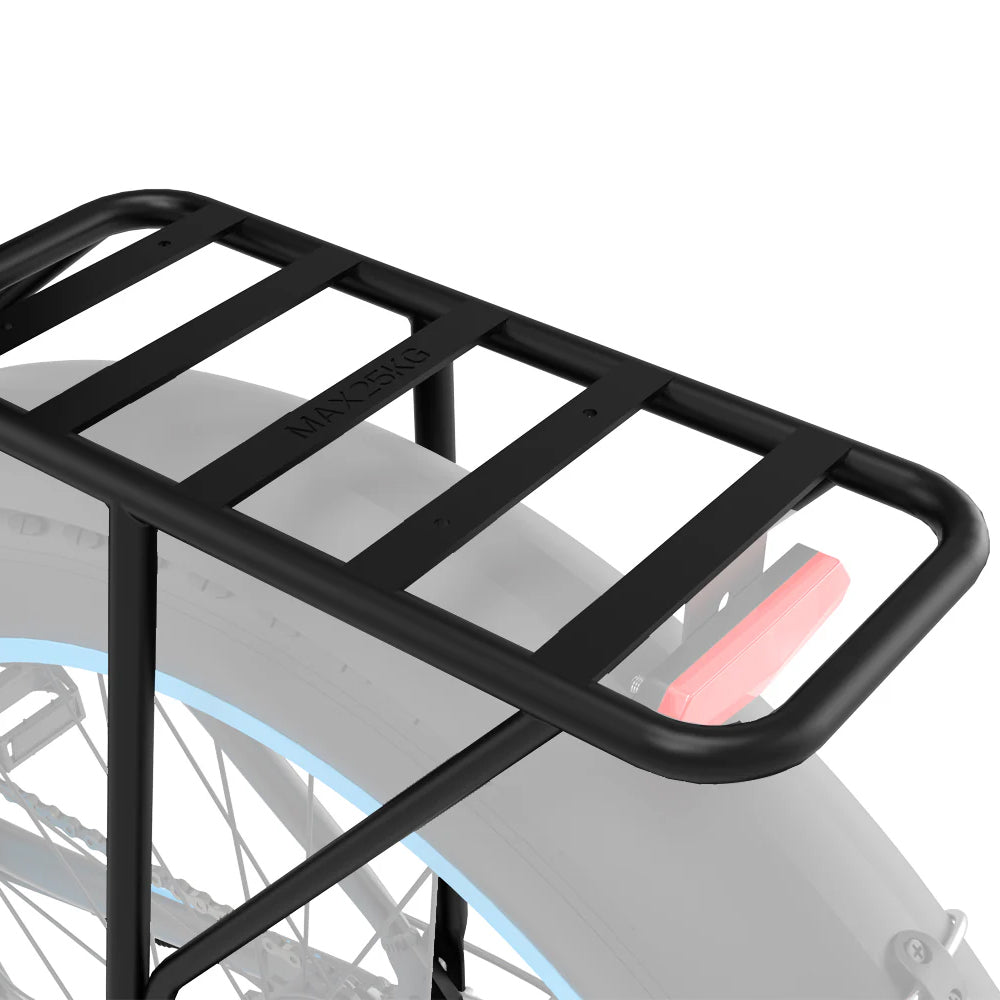

Sturdy Rear Rack Design
A sturdy aluminium rear rack capable of withstanding heavier loads.
What do they say?
New Product Tabs
Size & Fit
Geometry
Technical
Performance
Unboxing
Parts

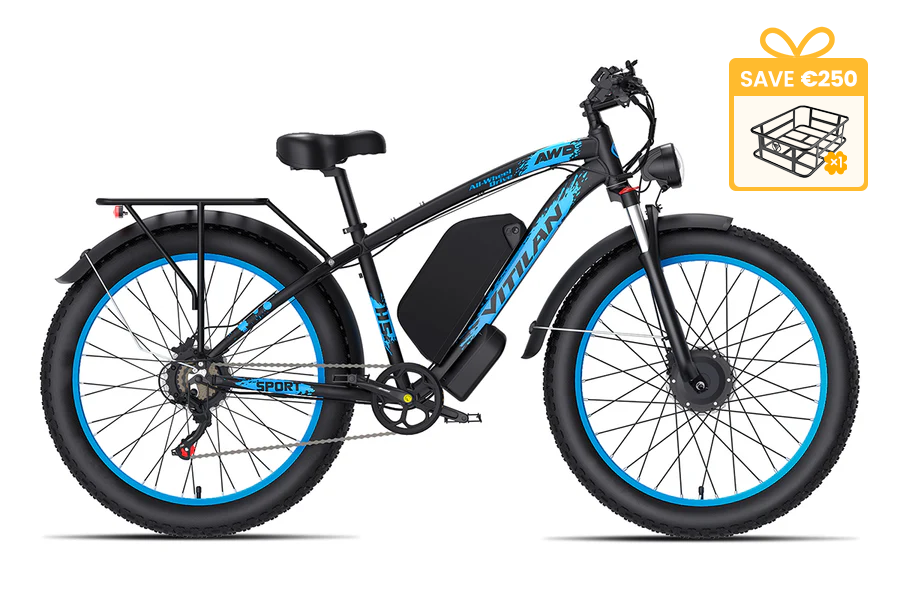

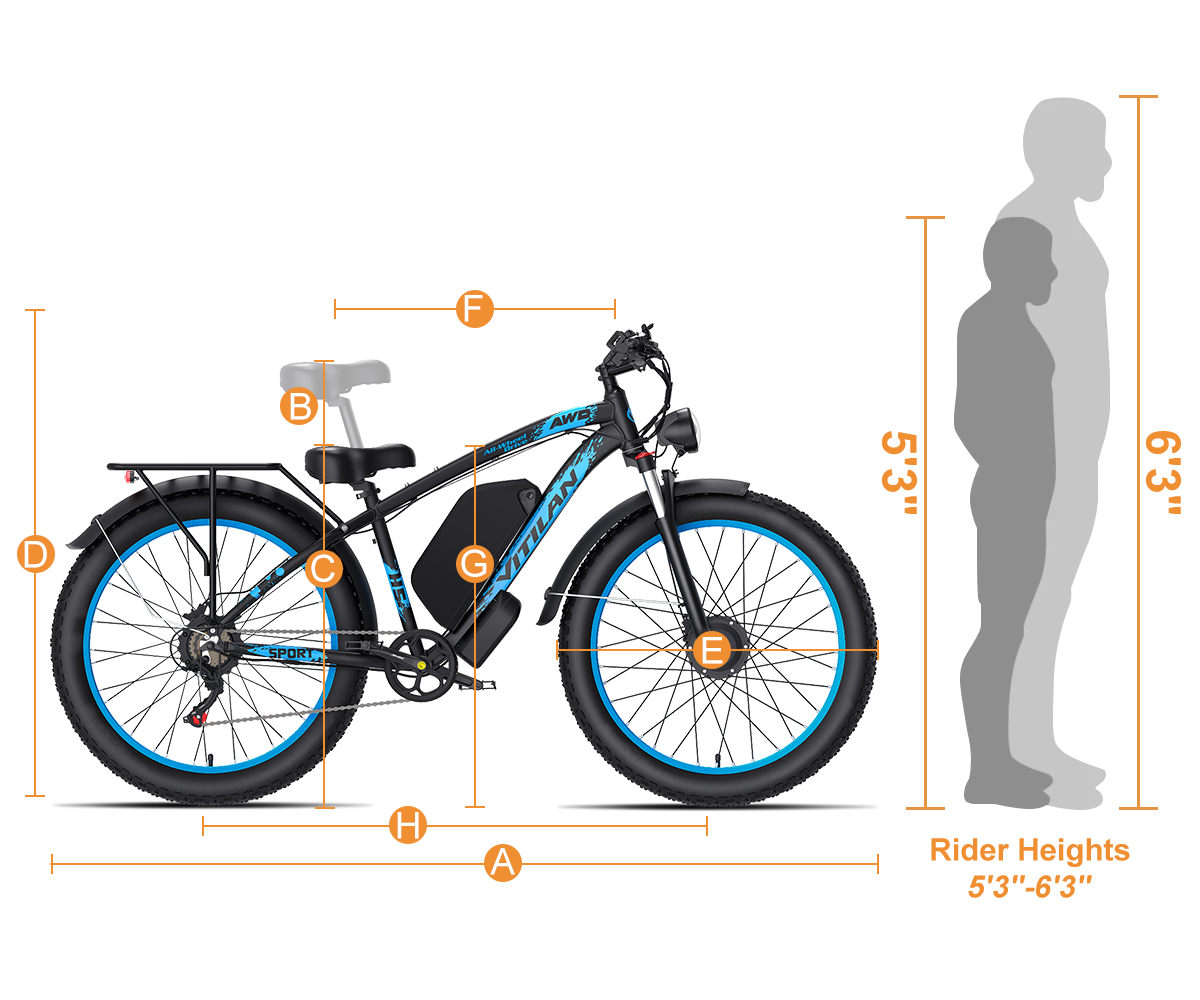

Size
1. Total Length:
70.86''
2. Handlebar Height:
43.3''
3. Minimum Seat Height:
31.1''
4. Maximum Seat Height:
38.1''
5. Top tube length:
25.6''
6. Frame to Ground Height:
29.53''
7. Tire Diameter:
24''
8. Wheelbase:
44.09''
- Recommended Recommended Rider Heights: 5'3" ~ 6'5"
- Frame Material: Aluminum
- Crankset: 24*34*42T
- Tires: Chaoyang 24" x 4" puncture-resistant fat tires
- Front Fork: Suspension Front Fork
- Gross Weight: 98.7 lbs
- Bike Weight: 83.3 lbs
- Battery: 52V 25Ah (1300Wh)
- Hub Motor: 1000W2 Brushless Gear Motor (1500W2 peak)
- Throttle: Thumb Throttle
- Pedal Assist: Intelligent 0~5 Level
- Pedal Assist
Shift Level: 1-7 levels gear shift / Shimano 7 Speed Gear System - Brake: Front and rear hydraulic brakes
- Controller: 2-in-1 Controller: 52V 26Ah & 52V 28Ah
- Display: 52V LCD Display
- Charger: 58.8V 2.8A
- Bell/Horn: Electric Horn
- Rear Light: Signal Turn Light / 52V LED Light
- IP Level: IPX6
- Fender: Included
- Package Included: Battery, charger, kickstand, fenders, rear rack, assembly toolset, user manual
- Range: 80–97 KM
- Default Speed: 25 KM/H
- Total Payload Capacity: 330 lbs
H5 FAQS
The H5 is set with a default speed of 25 km/h, making it ideal for outdoor exploration and long-distance rides. When the speed limit is removed, the e-bike can reach a top speed of up to 65 km/h. For instructions on how to safely unlock the speed limit, please contact our customer service team.
The H5 covered for 18 months.
For detailed warranty terms, please refer to our Warranty Policy.
Customers can submit a return request within 30 days of receiving their order by contacting support@vitilanebike.com.
For detailed information on returns and refunds, please refer to our Return Policy.
The H5 meets the IPX6 waterproof standard, protecting against light to moderate rain and splashes.
Avoid riding in heavy rain or extreme weather, and never leave the bike exposed for long periods. Ride safely at all times.
The estimated delivery time is 2–9 business days. Certain exceptional situations may result in logistic delays.
We have pre-assembled 90% of the bike for you. You only need to tighten the wheel bolts, install the seat and handlebars, and attach a few remaining parts to be ready to ride.
