More Features
Technical Specifications:
Motor Hub:
52V 1000W(peak 1600W), max torque 90Nm
Battery:
52V, 20Ah, 1040Wh SAM-SUNGLi-ion Battery
Charger:
58.8V 3.0A Junlei 3-pin charging head
Display:
TFT true-color display enables you to monitor and set your real-time speed; it also records the mileage of your ride.
Throttle Assist:
Halt twist throttie
Headlight:
High output Integrated LED, IPx6
Pedal Assist Range:
128 KM
Throttle Range:
96 KM
Pedal Assist:
1-5 Level,Cadence Sensor
Charging Time:
0-80% 4 Hours,0-100% 6 Hours
Power & Energy:
Peak Motor
1000/1600W
Top Speed
56KM/H
Max Range
96-128 KM
Battery
52V 20Ah
Gear Shifting System
8 Speed
Charging Time
4-6 Hours
Size
Standard: 5’3”-6’5”
SIZE
Total Length
76.83"
Handlebar Height
45.7"
Minimum Seat Height
32.7"
Maximum Seat Height
36.84"
Top Tube Length
23.62''
Wheelbase
47.24"

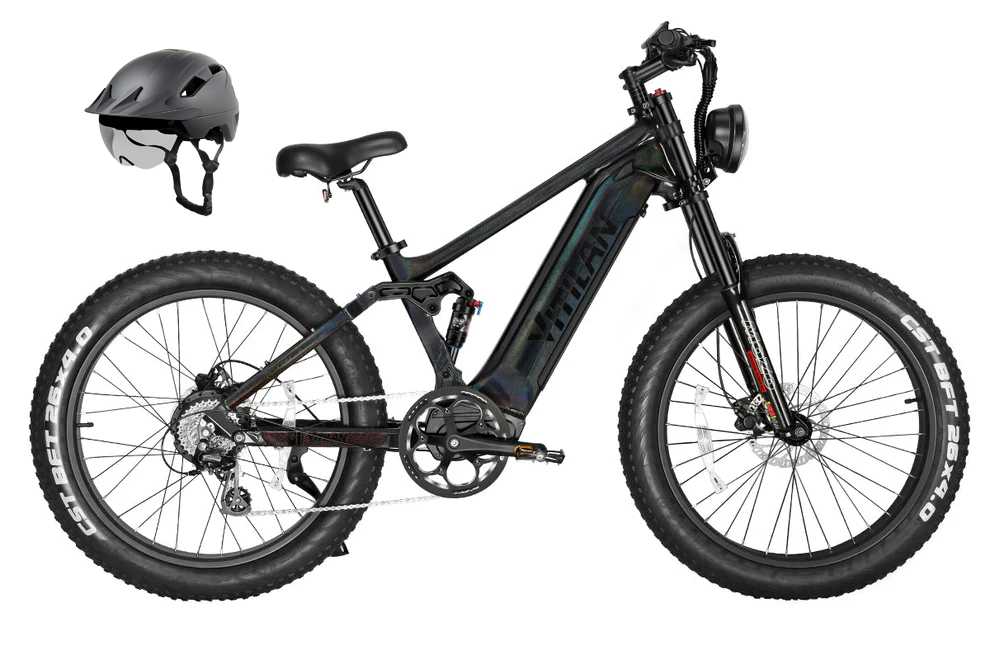

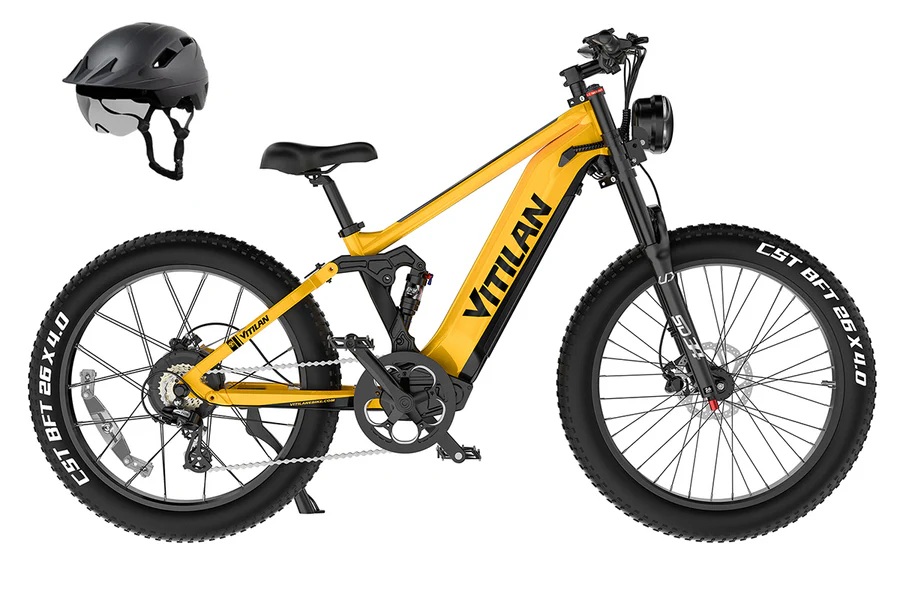

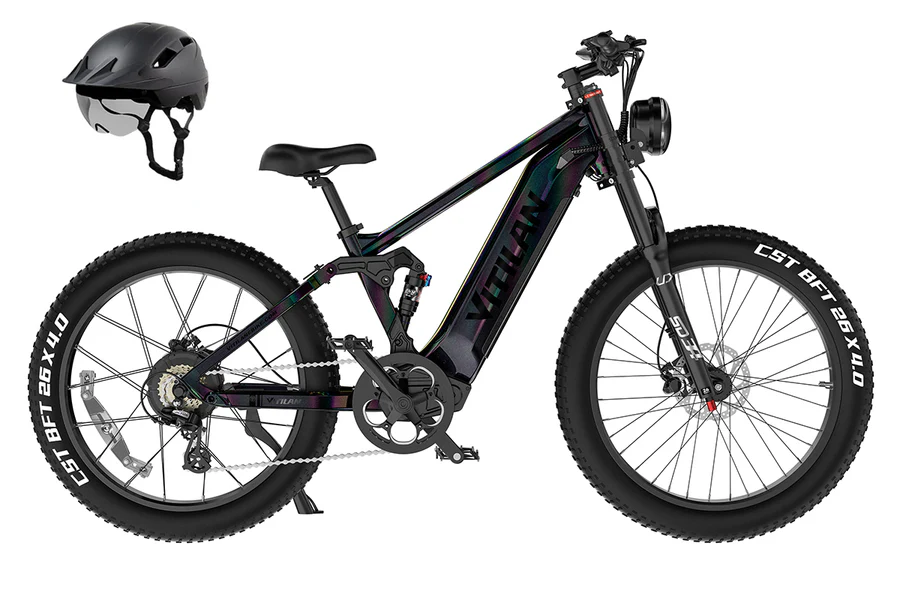

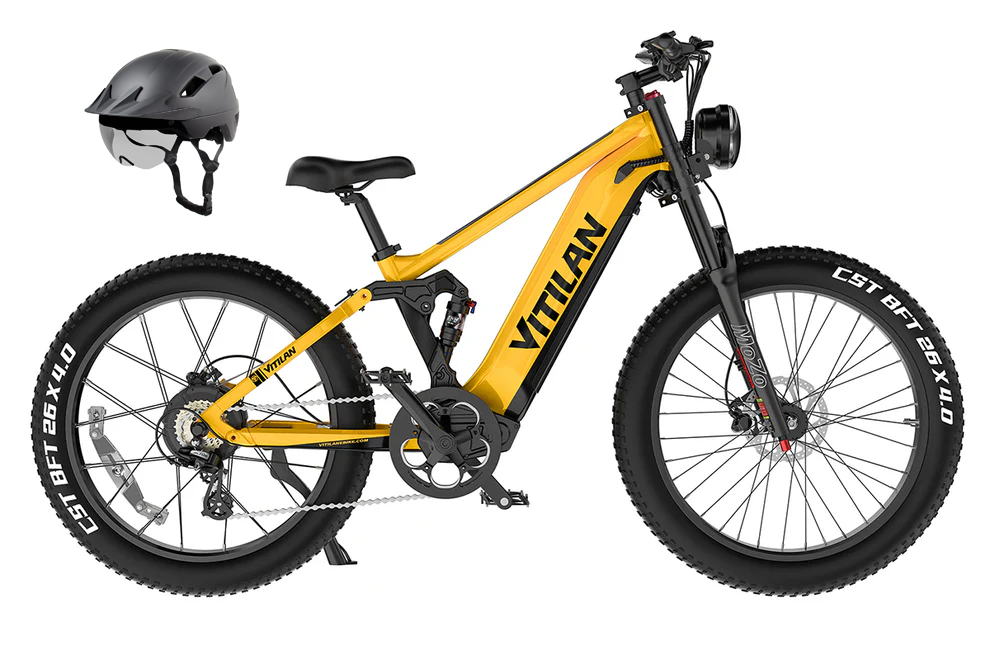

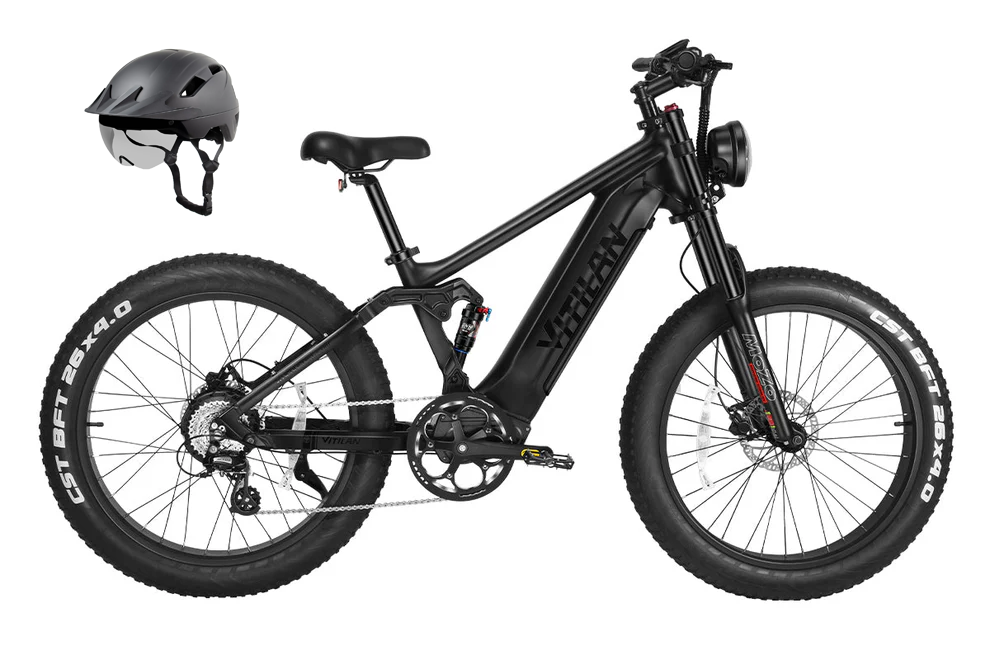

26'' All Terrain Long Distance Mountain E-Bike
The T7PRO series is Vitilan's newest e-bikes that combine multiple uses, such as commuting or off-roading. The complete suspension system will provide you with the highest level of shock absorption and the smoothest ride possible. Equipped with a well-known brand Bafang motor, hydraulic disc brakes, and a 20Ah Samsung battery, the T7PRO will keep you safe and comfortable on long trips.
This model has an initial speed of 25 km/h; customers may remove the speed limit according to their requirements.
52V 20Ah Samsung Battery
The T7PRO is upgraded with an original 52V 20Ah Samsung lithium battery, delivering a high capacity of up to 1040 Wh. This not only means extended riding range, but also provides more stable voltage output, ensuring consistent power even at high speeds or when climbing hills. Paired with a 3.0A fast charger, the charging time is significantly reduced. Samsung batteries are more reliable and last longer than most other batteries on the market.
1040Wh
Battery Capacity
96-128 KM
Range Per Charge
3.0A Charger
Quick Charge
1000W Bafang Motor at the Core
At its heart, the T7PRO features a Bafang high-speed motor with1000Wrated power and up to1600Wpeak output, capable of delivering an impressive 90Nm of torque in just 2 seconds. Whether accelerating from a standstill or tackling steep slopes of up to 30°, it provides strong yet smooth and linear power. With 5 levels of pedal assist, every ride is fully under your control. Bafang Motor is long-lasting, responsive, and high-torque, outperforming most generic motors.
1600 W
Motor
90 Nm
Torque
25 KM/H
Standard speed
Electronic Control PAS Levels
PAS Levels Corresponding Speed and Range
PAS-1
PAS-2
PAS-3
PAS-4
PAS-5
Test results based on a 170 lbs rider on flat roads at 33°C. Actual range may vary based on terrain and riding conditions.
These figures are for when the throttle restriction has been lifted; the initial throttle speed is 25 km/h.
Four-Link Full Suspension System
The T7PRO adopts a professional four-link full suspension design, allowing therear wheel to follow an optimized travel path that balances pedaling efficiencyand shock absorption. With a maximum payload capacity of up to 330 lbs andan adjustable suspension system, it delivers both comfort and strength acrosssnow, gravel, and forest trails.
Safety Lighting System
Incredible LED headlight with 600 lumens center beam illuminates your every journey.

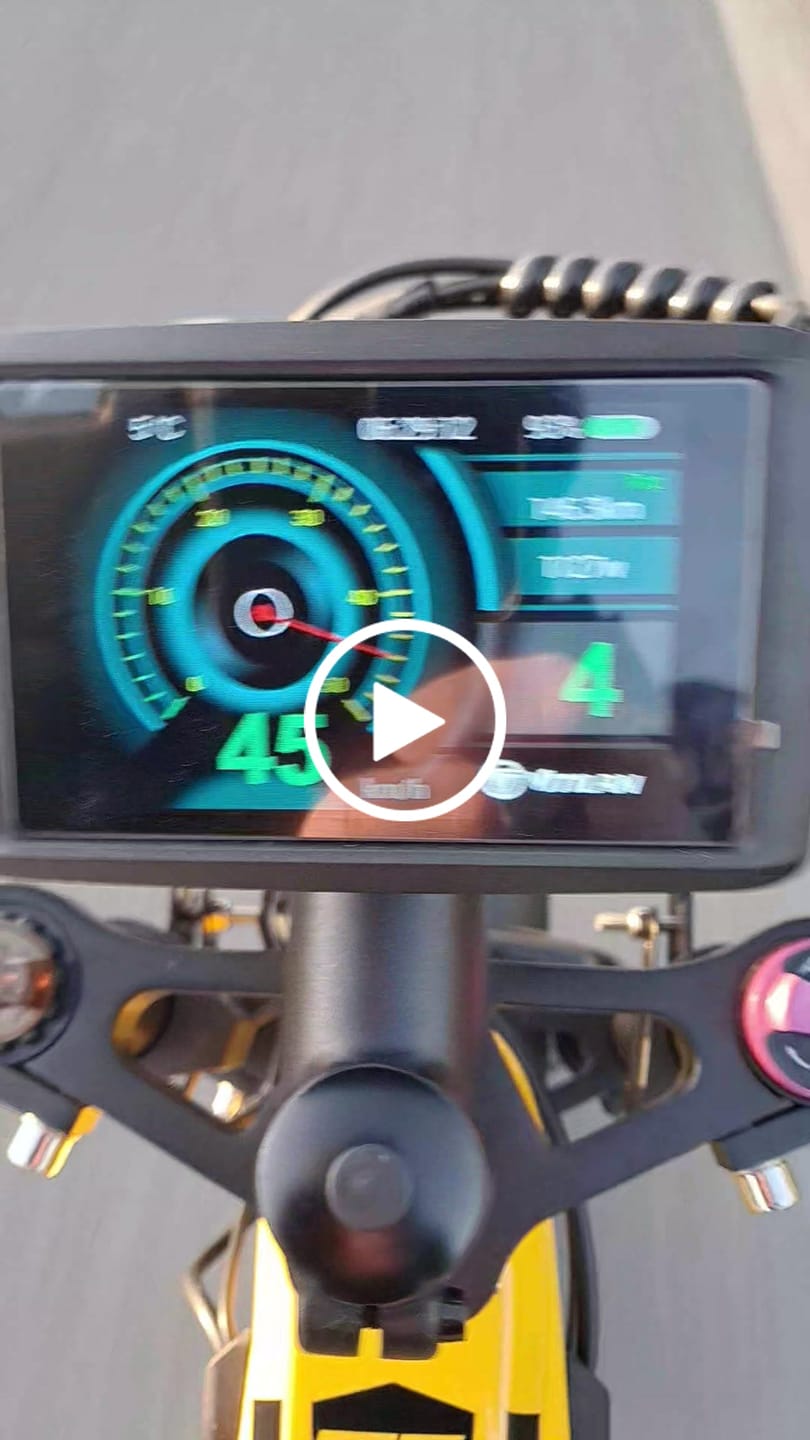

TFT True Color Display
Monitoring and setting up your real-time speed; recording your riding mileage; adjusting 1-5 levels of the pedal assist; displaying your battery remaining; turning on/off your headlight and rear light; USB Charging function can be used to power the dying cell phone, providing other setting functions according to your demand.
DNM Air Suspension
The rear suspension of the T7PRO utilizes DNM AO-8RC three-stage adjustable locking pneumatic shocks, which absorbs the bumps while riding on beach, gravel roads, or forest trails. This is a great fit for recreational riders who love to ride on mixed terrain.
More Features
Shimano 8-Speed Gear Shift System
1-8 level shift gears, allowing you to switch freely on the flat road or steep hills, reducing pedaling and you still are able to ride faster and easier. Shimano 8-speed rear derailleur adjusts your gear effectively and helps you across varied terrains wherever you go.
Four-Link Structure
The T7PRO series is equipped with a four-link suspension system that drives all of the movement of the e-bike through a central four-link structure.
TEKTRO Dual Piston Hydraulic Brake
Need to hit the brakes? Our hydraulic disc brakes (180mm) are your trusty sidekick when it comes to smooth & reliable stopping power. Say goodbye to skidding and hello to controlled stops every time.
Puncture-Proof Tires
A reinforced puncture-resistant layer defies gravel and debris. The wide 26x4.0-inch tread delivers strong grip, balancing low rolling resistance on asphalt with steady traction off-road, ensuring a safe and smooth ride.
Soft Bike Seat
Vitilan bike seats are ergonomically designed to fit your body. They are shaped to match your riding position and will free you from strain and fatigue caused by long rides.
Pedal Assist & Throttle
Twist throttle releases your thumbs, making it easier to control your speed and ride more safely. You can choose the level of assistance you need, whether you want a gentle nudge or a more powerful boost.

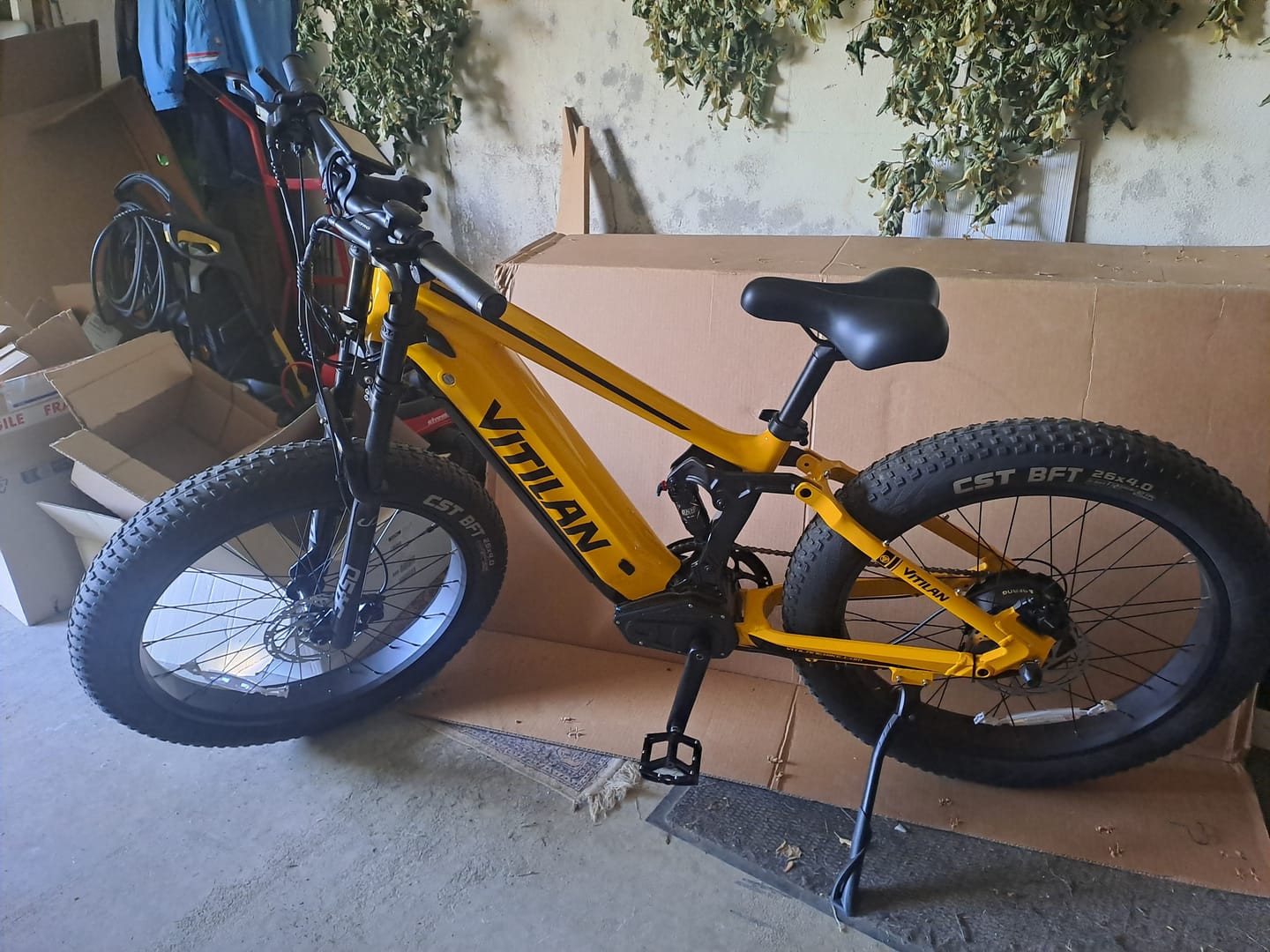

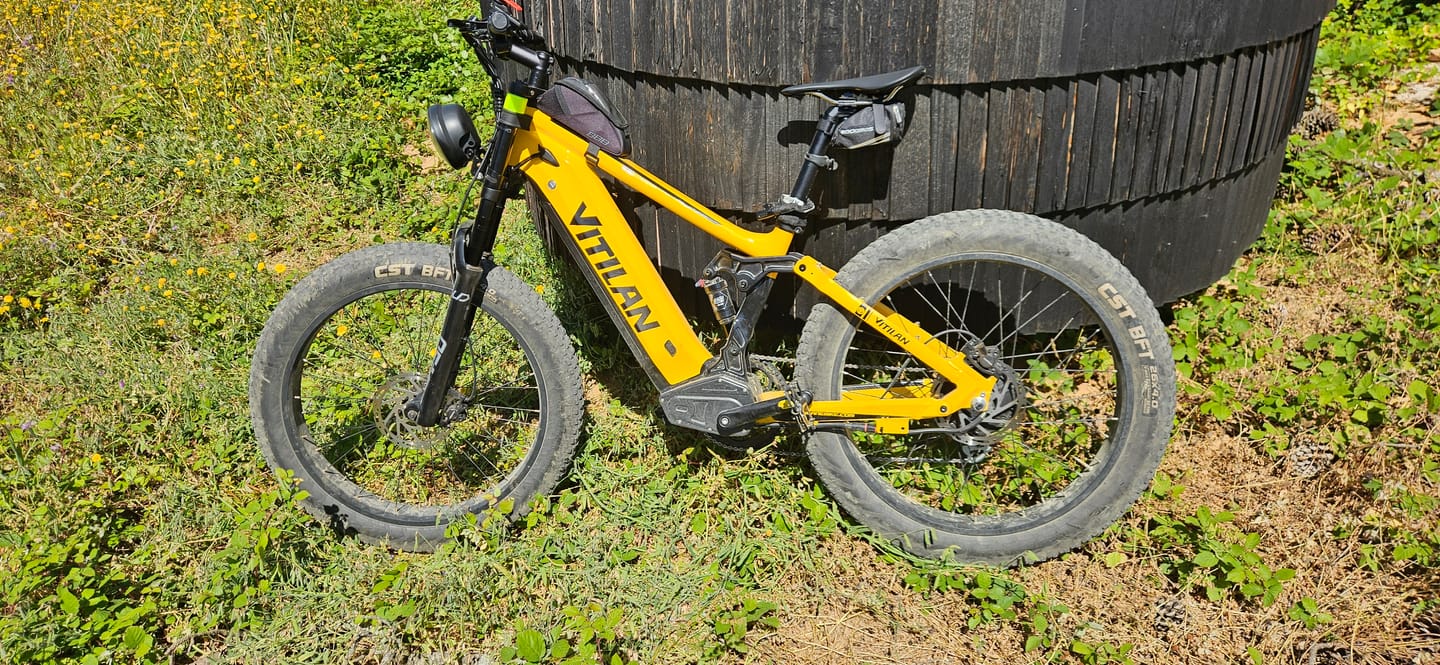

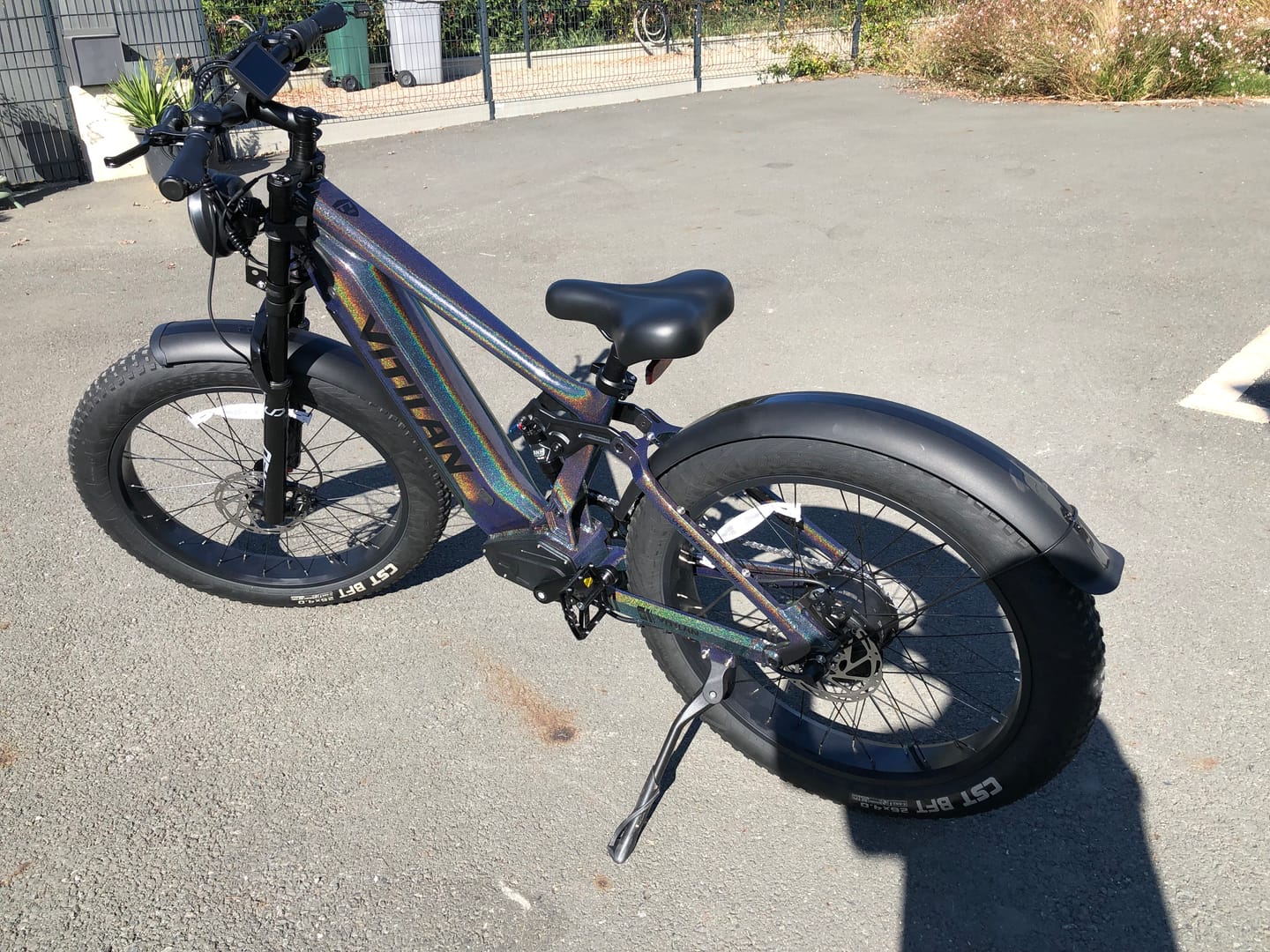

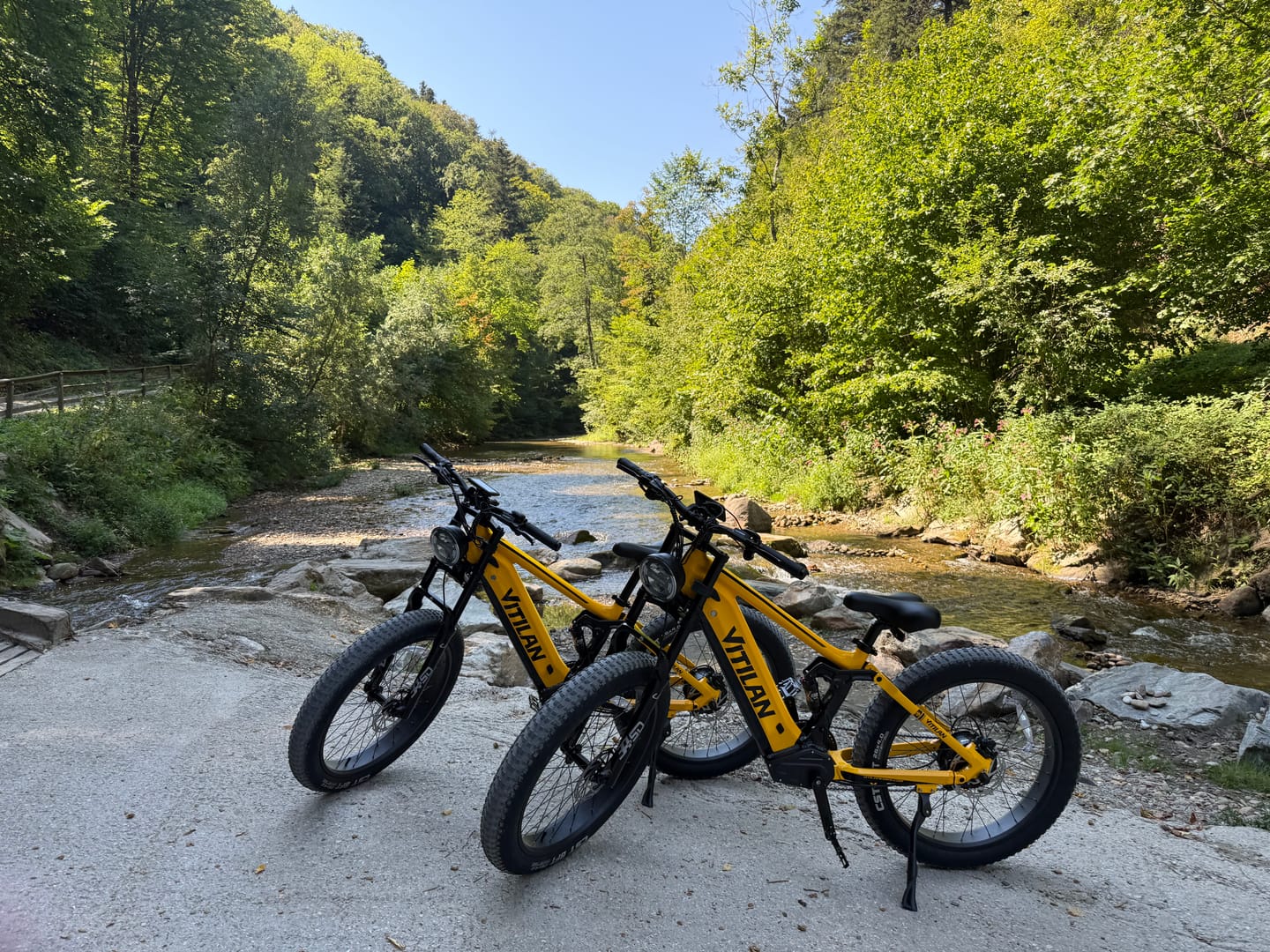

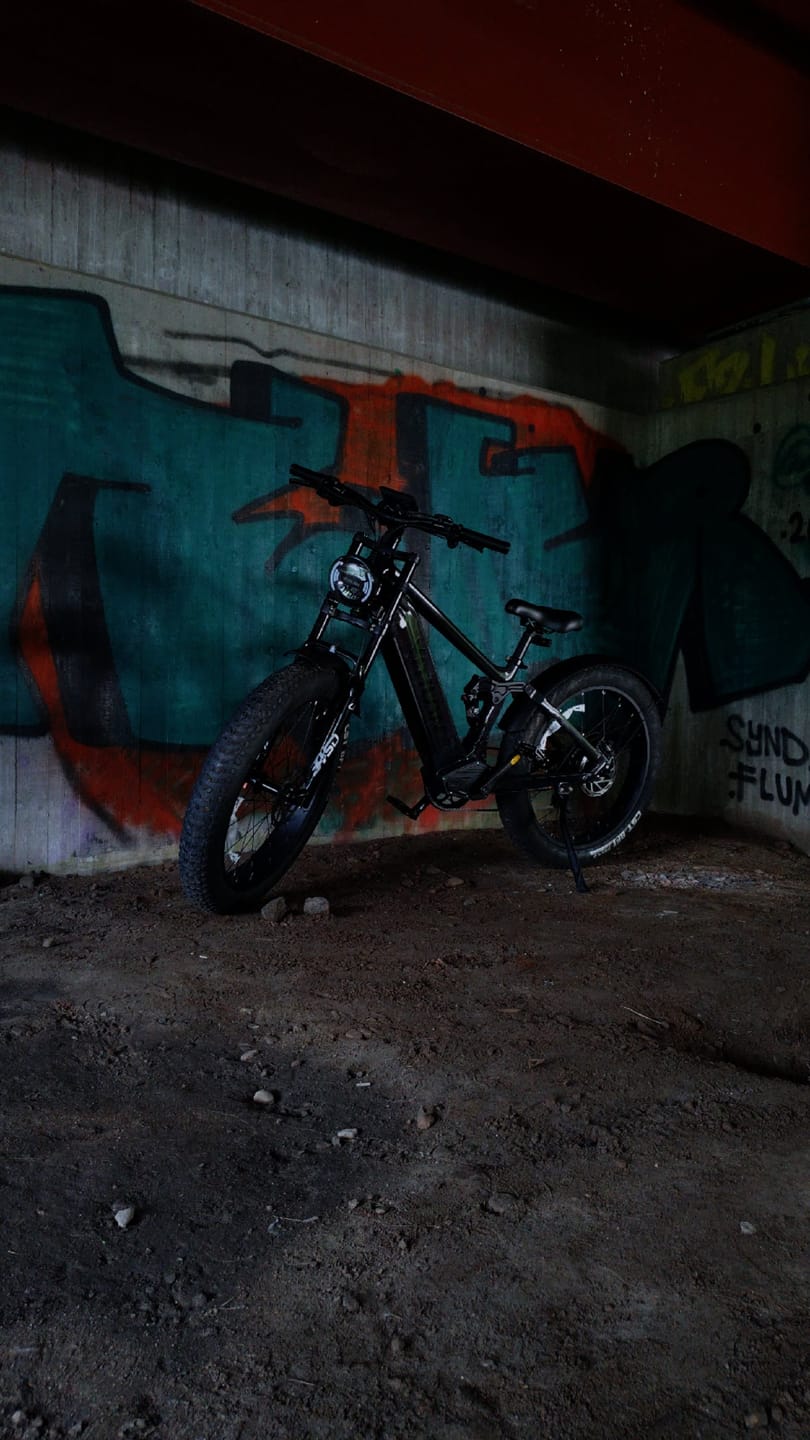

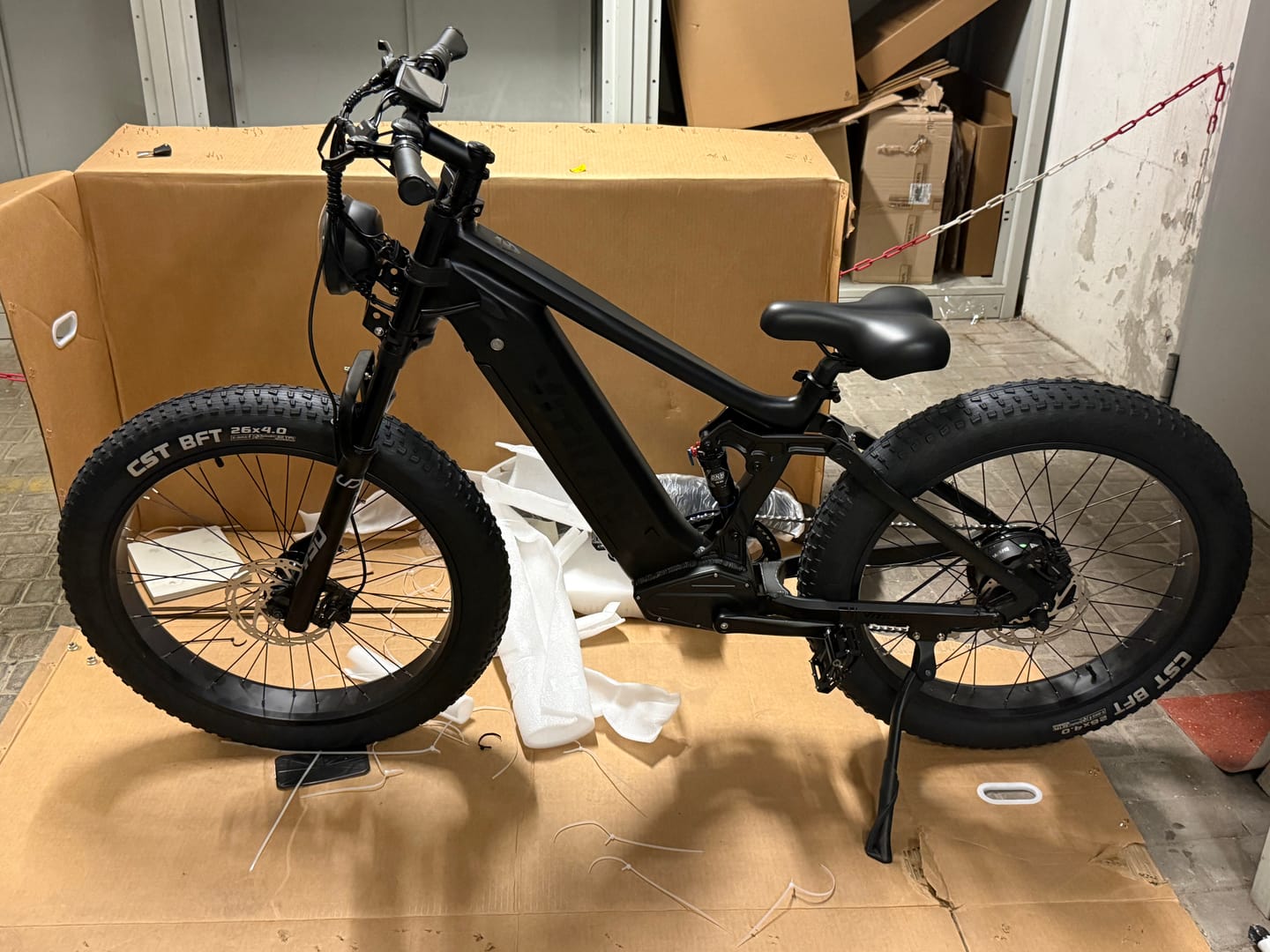

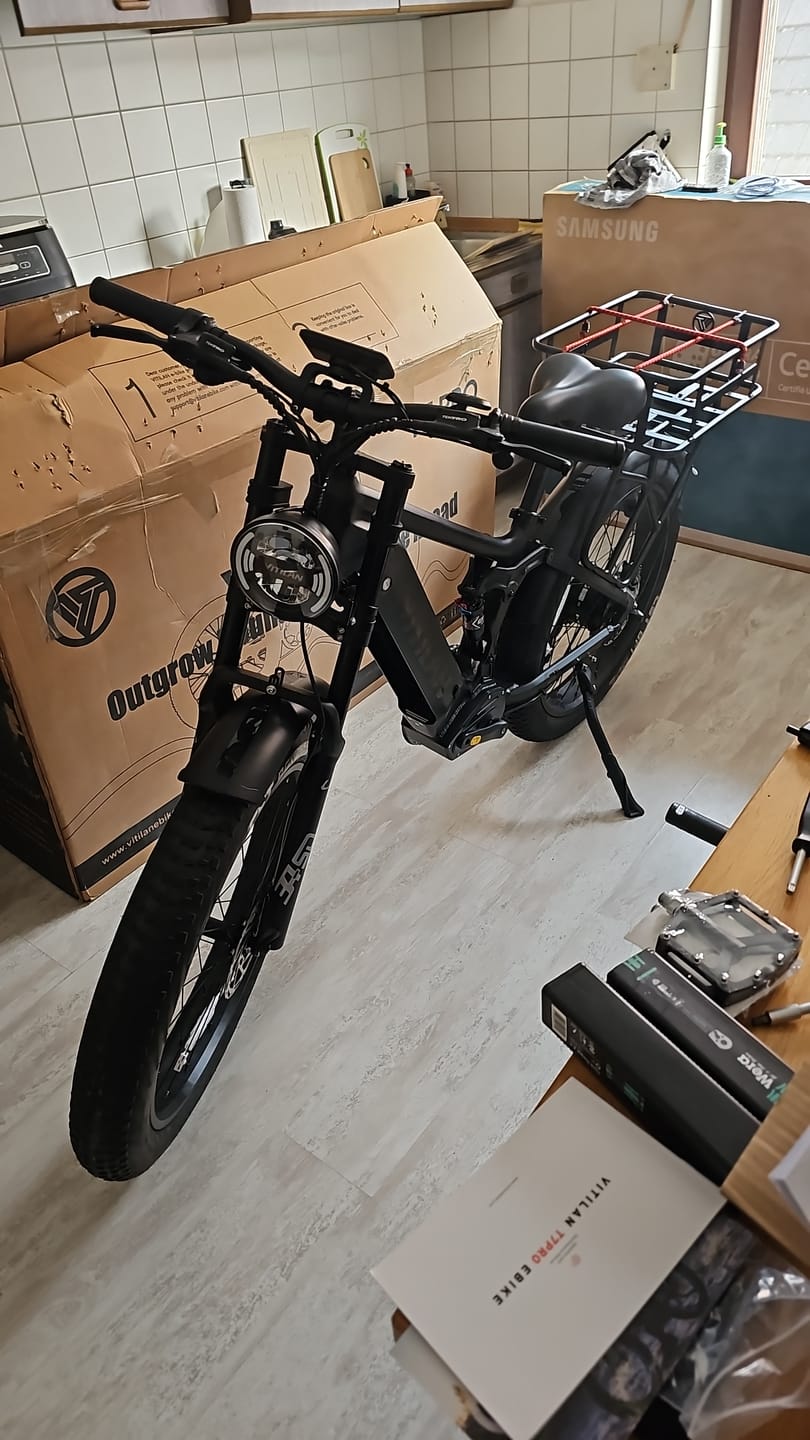

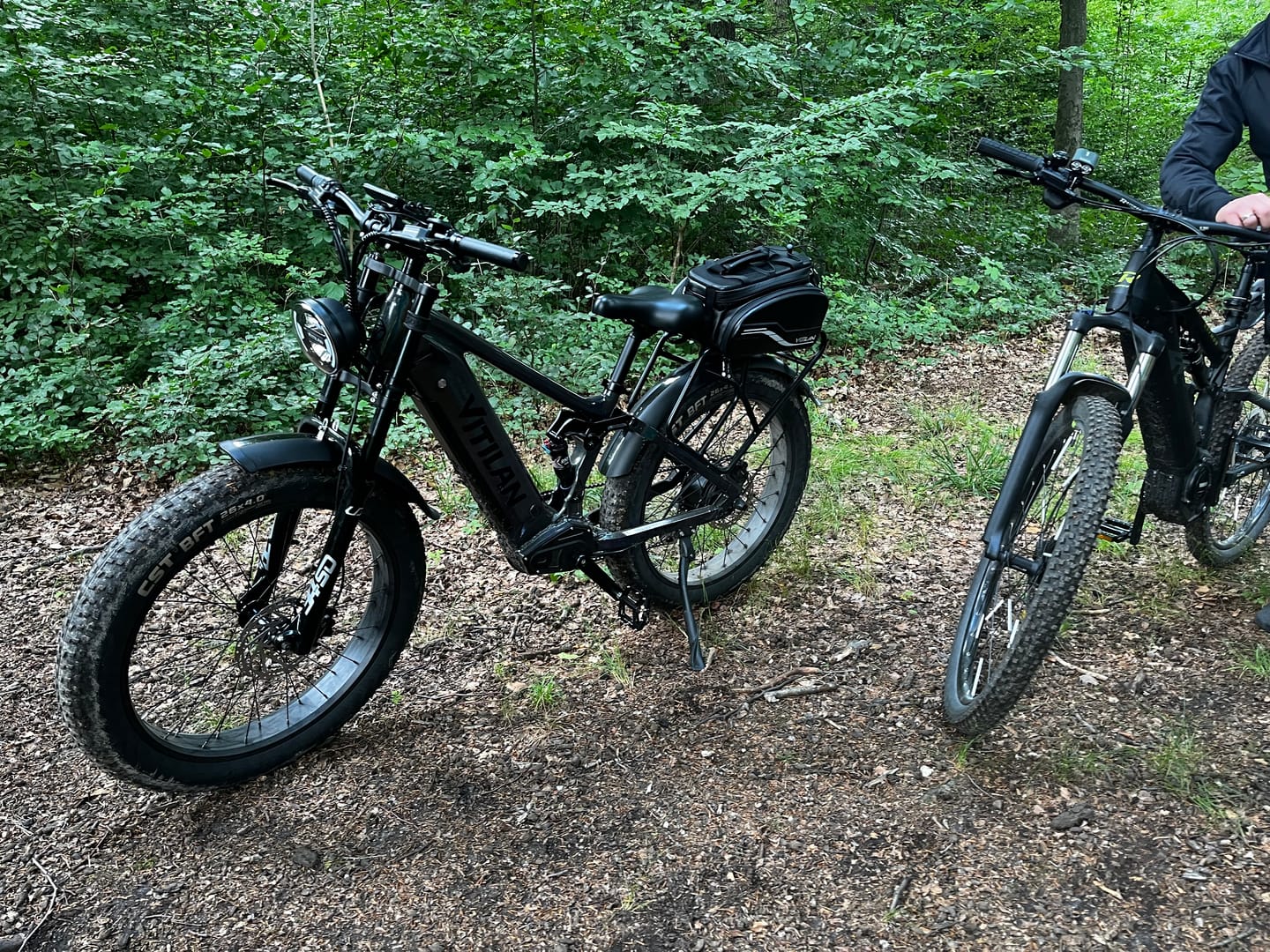

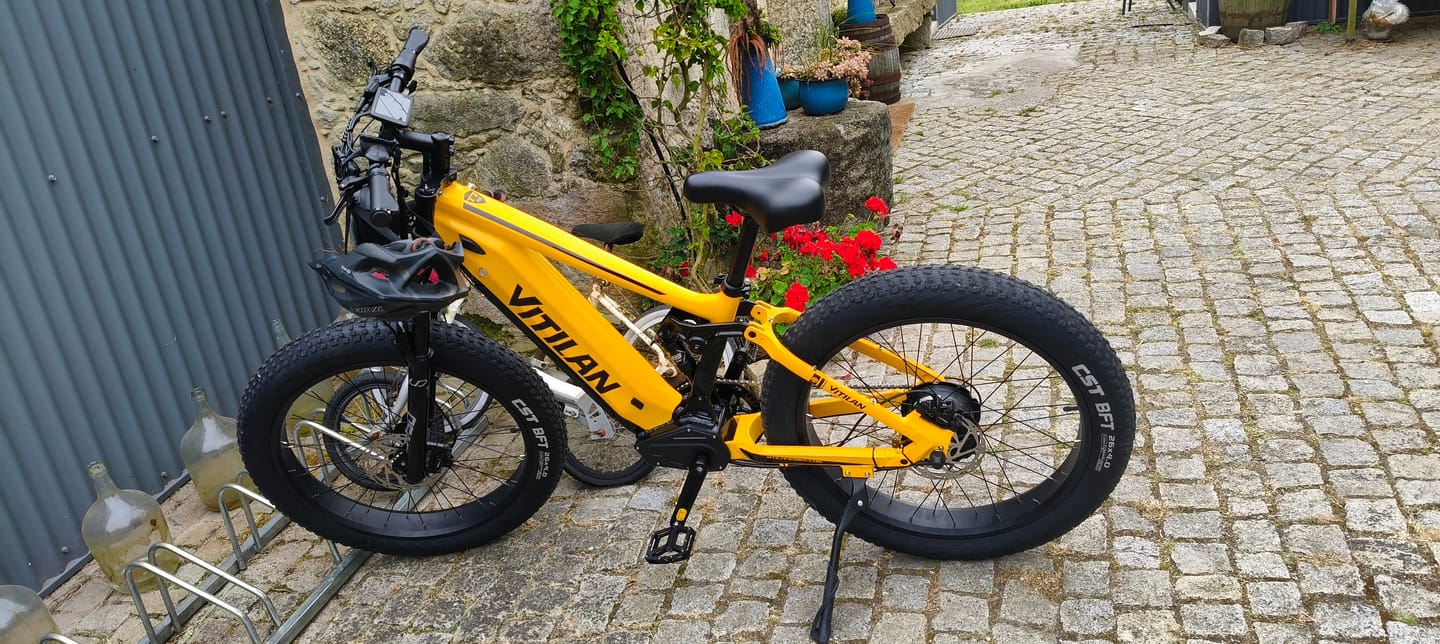

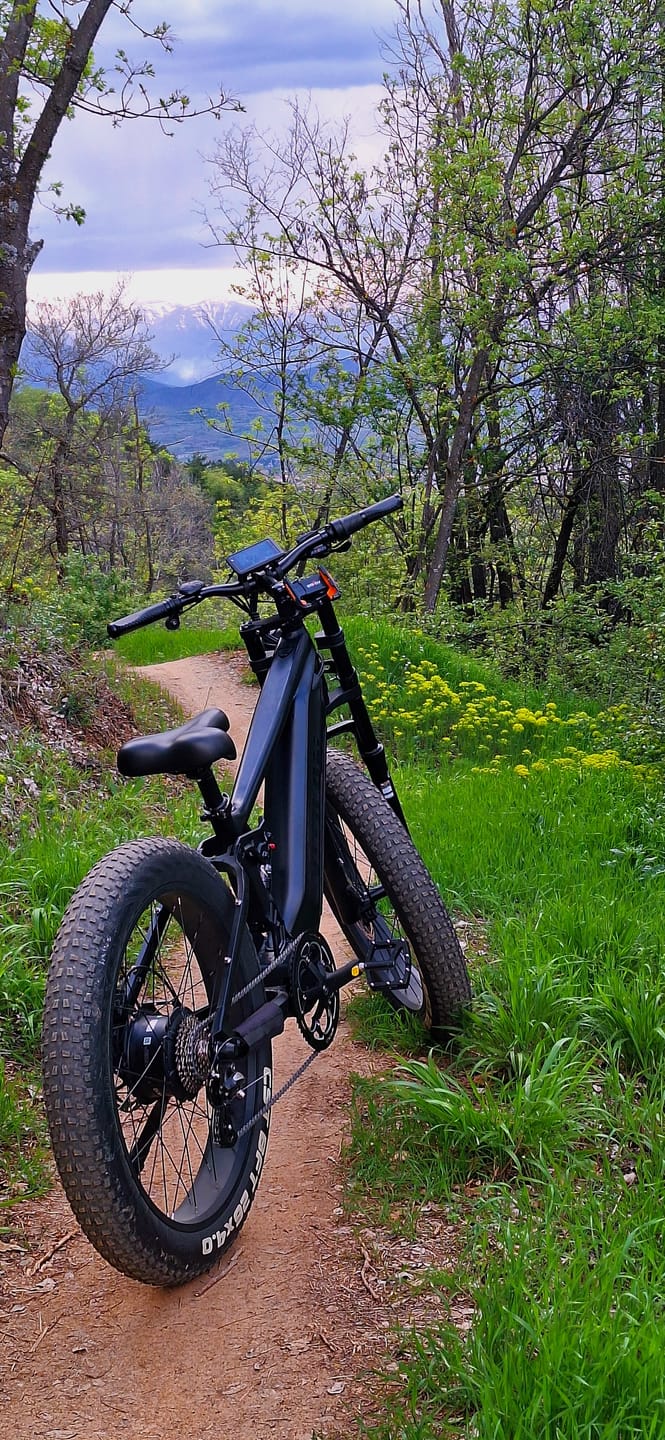

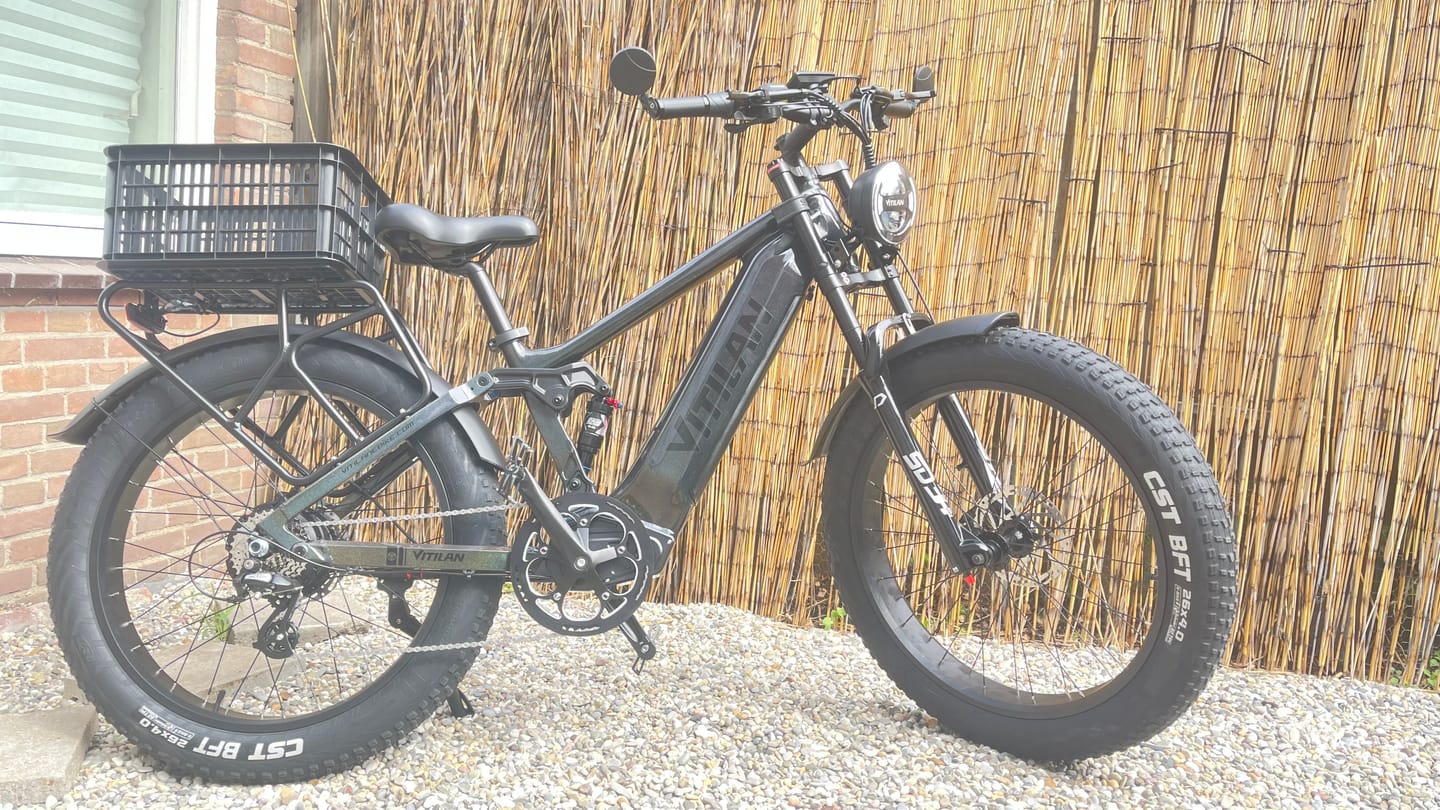

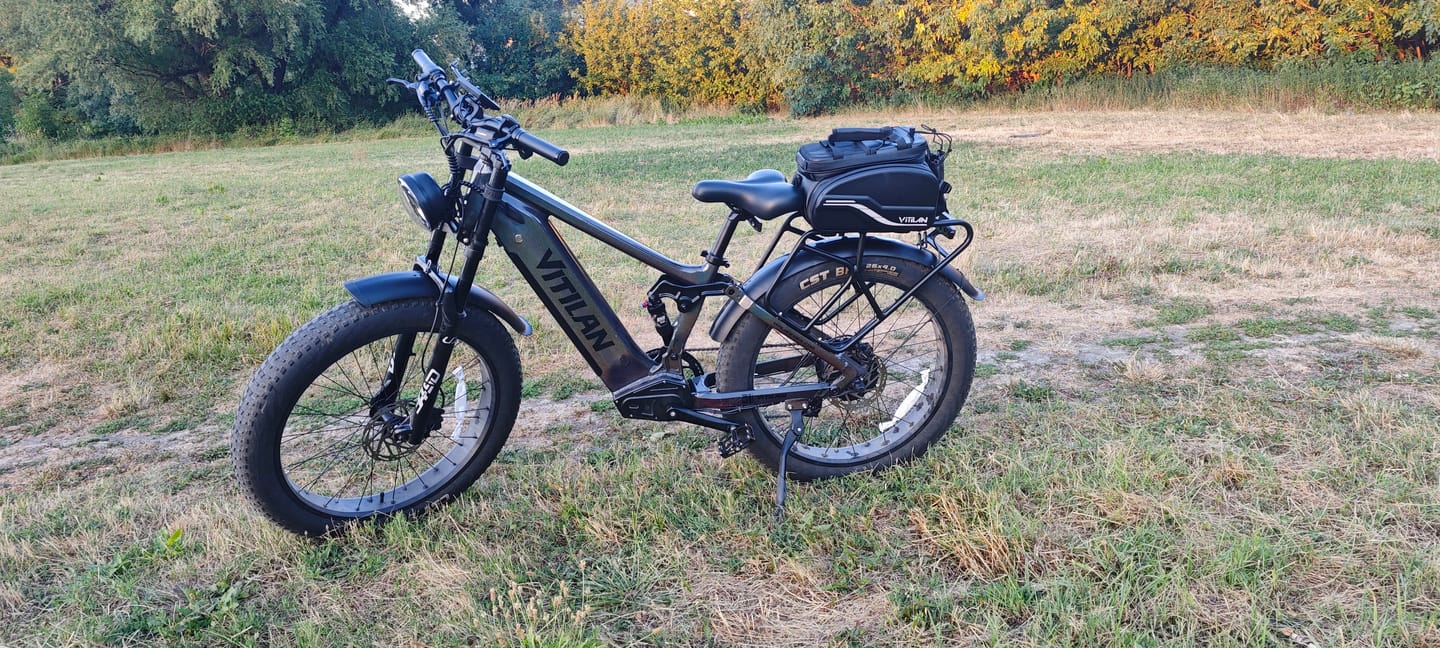

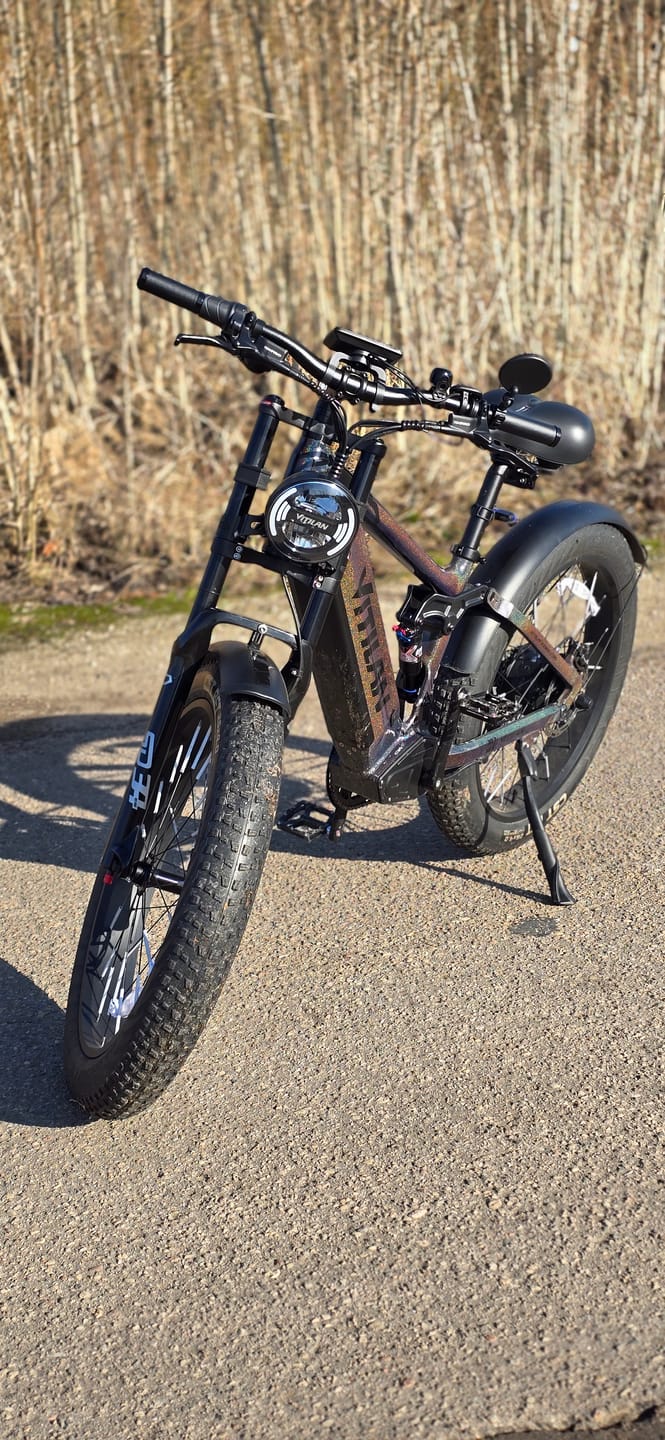

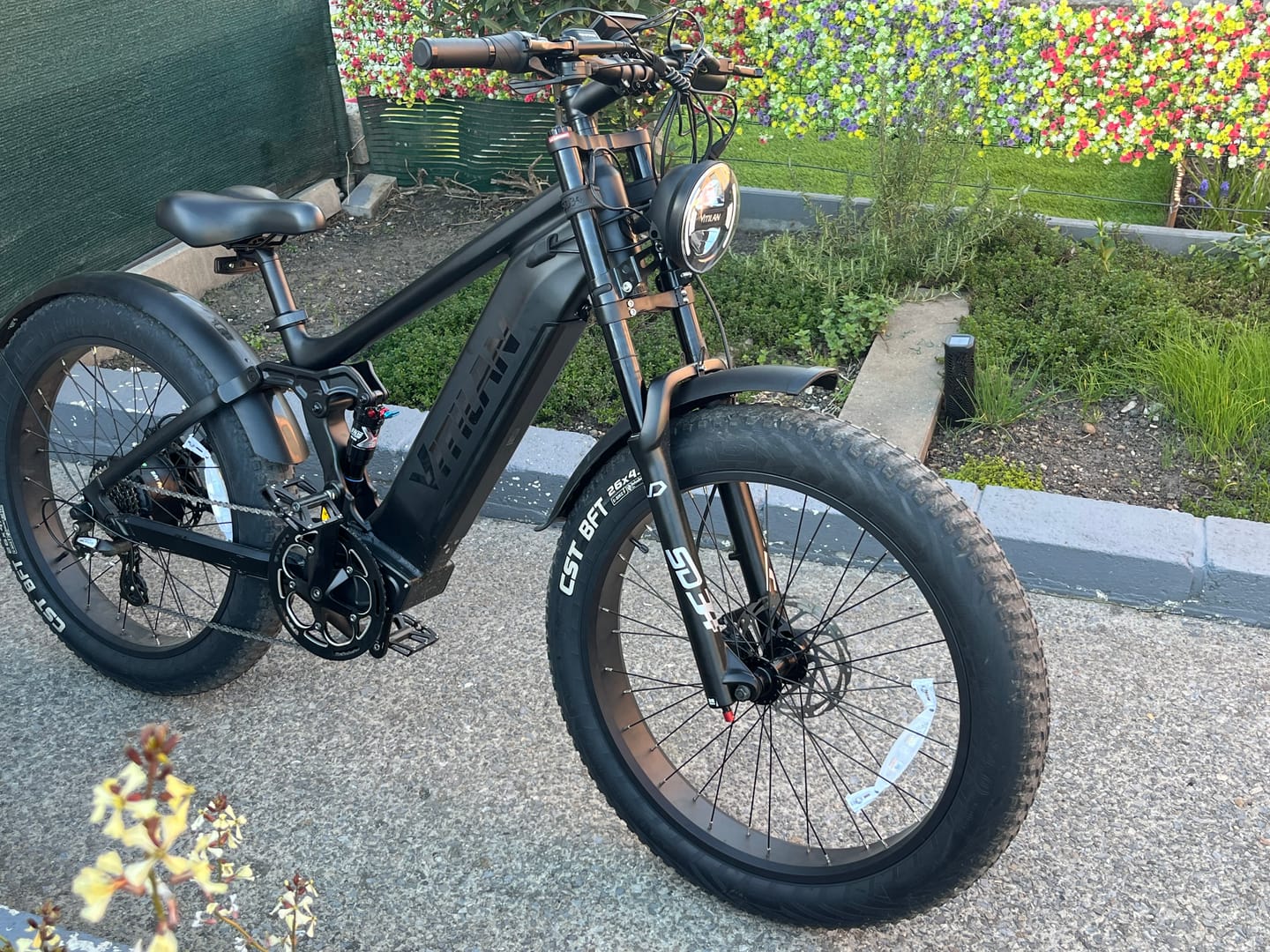

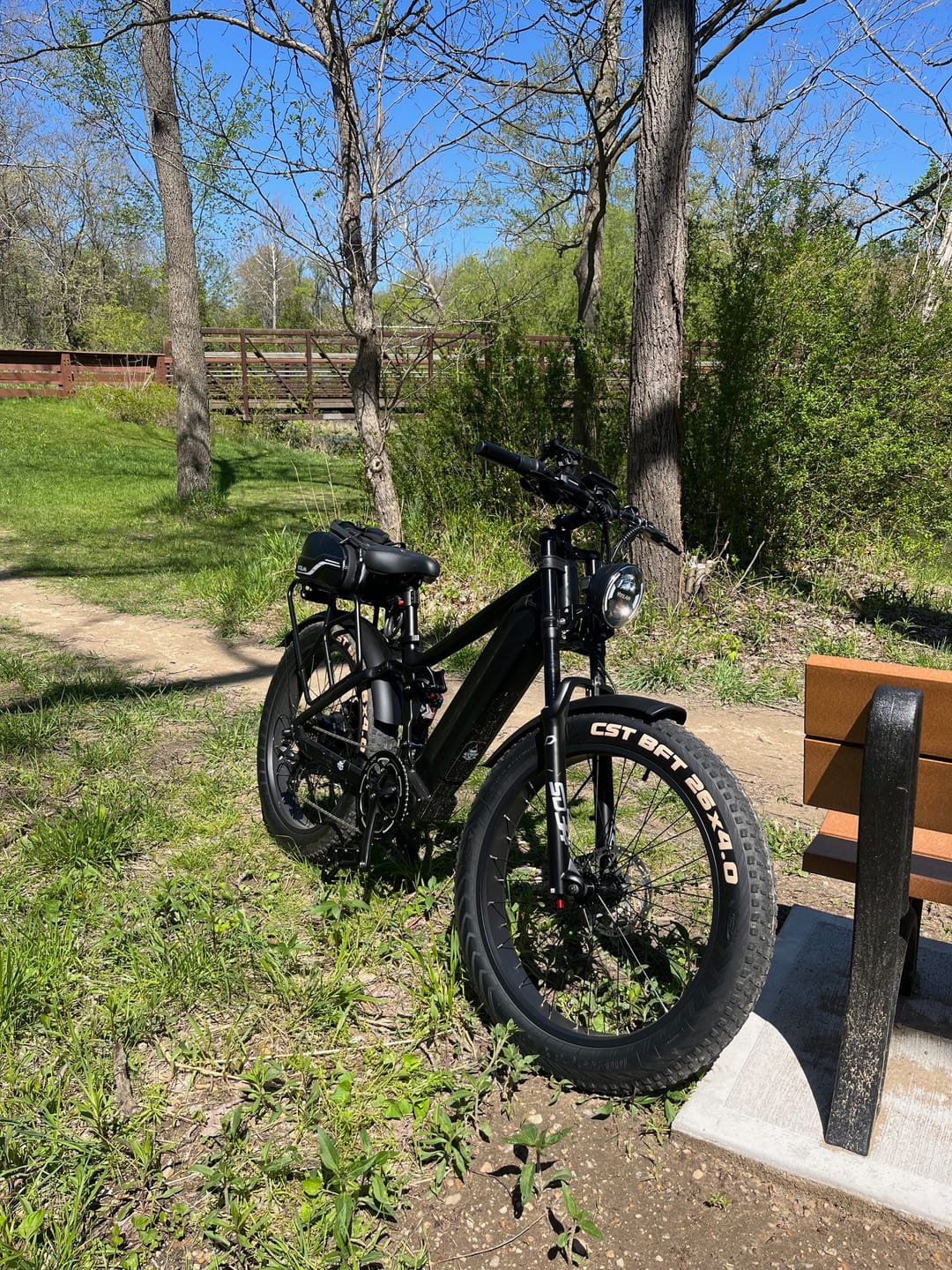

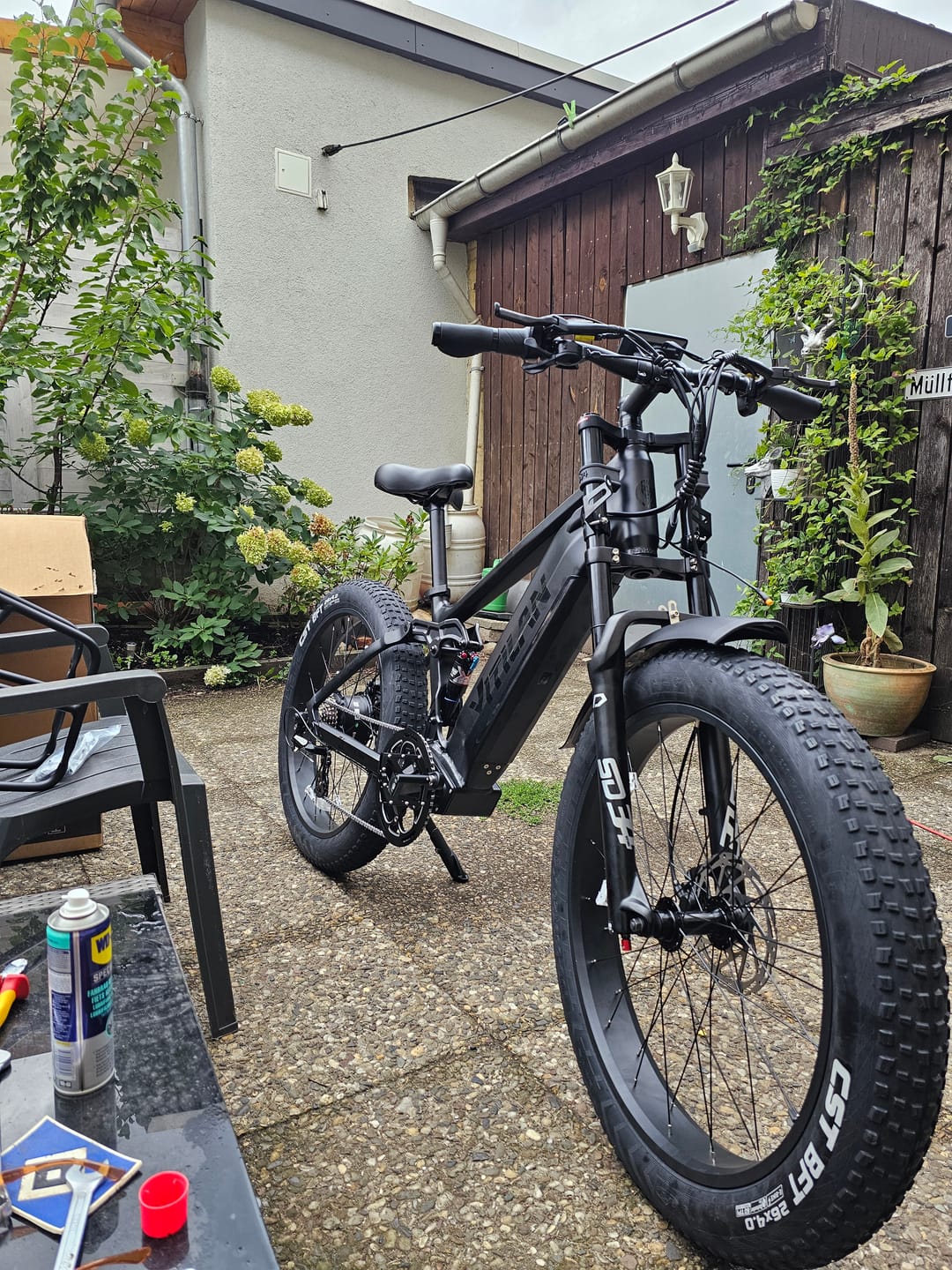

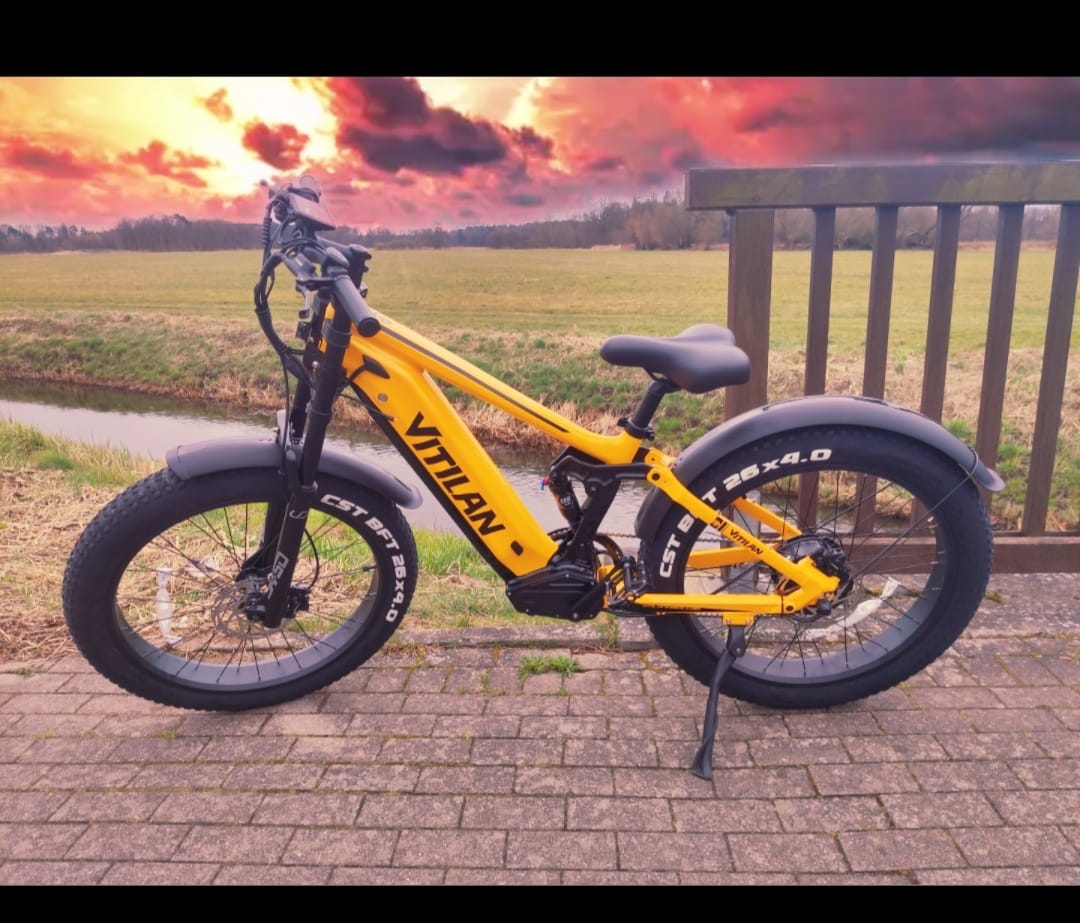

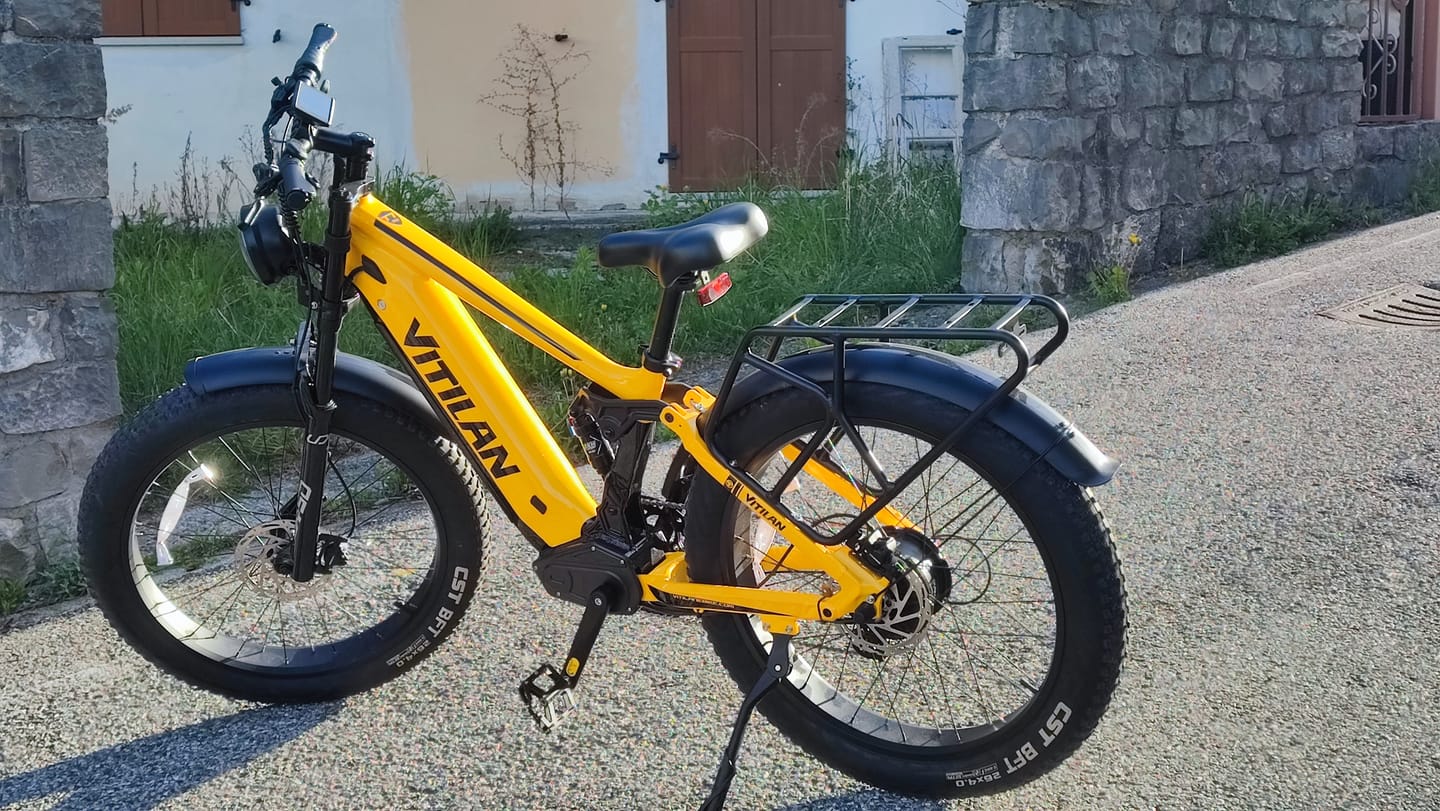

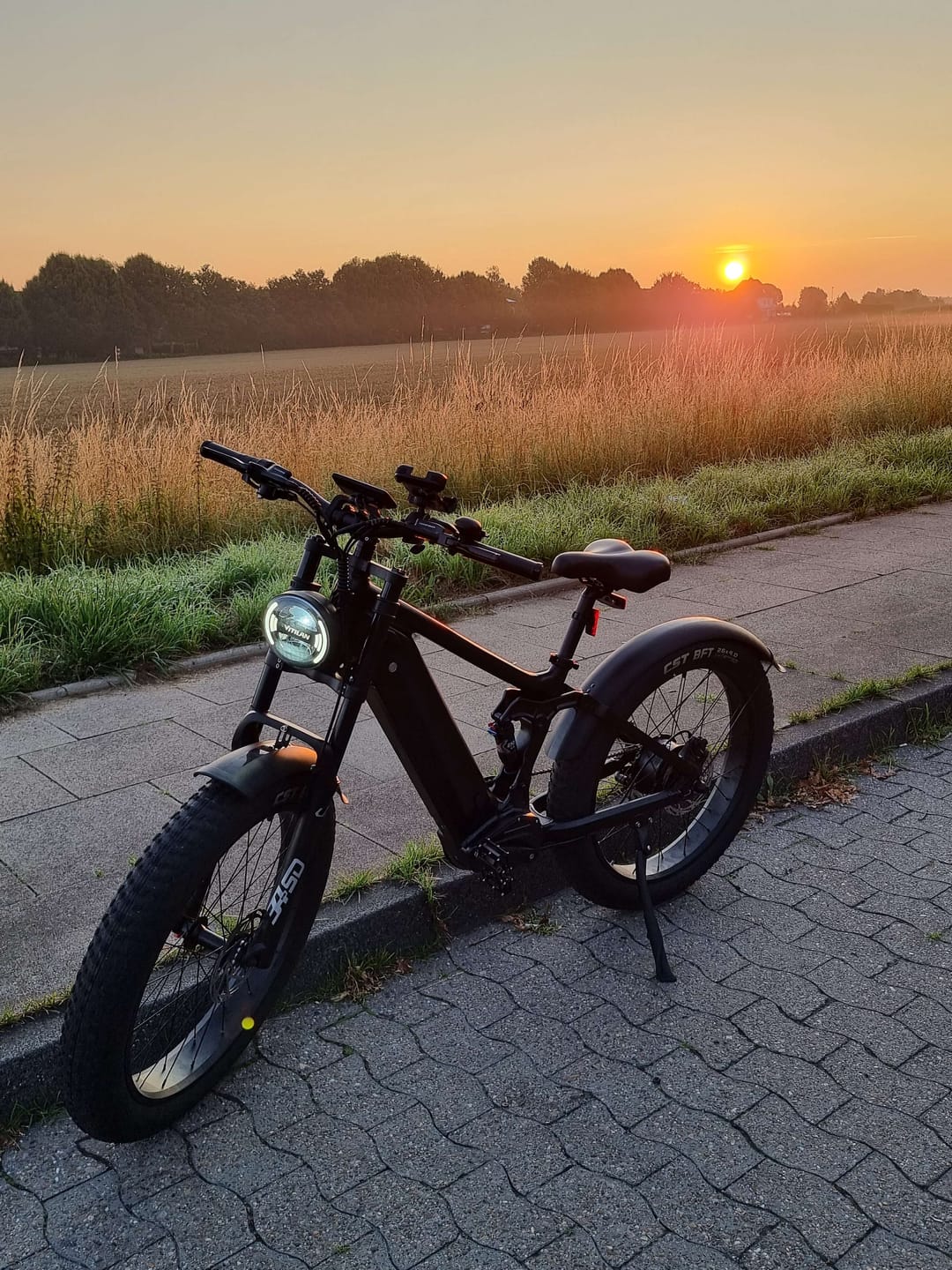

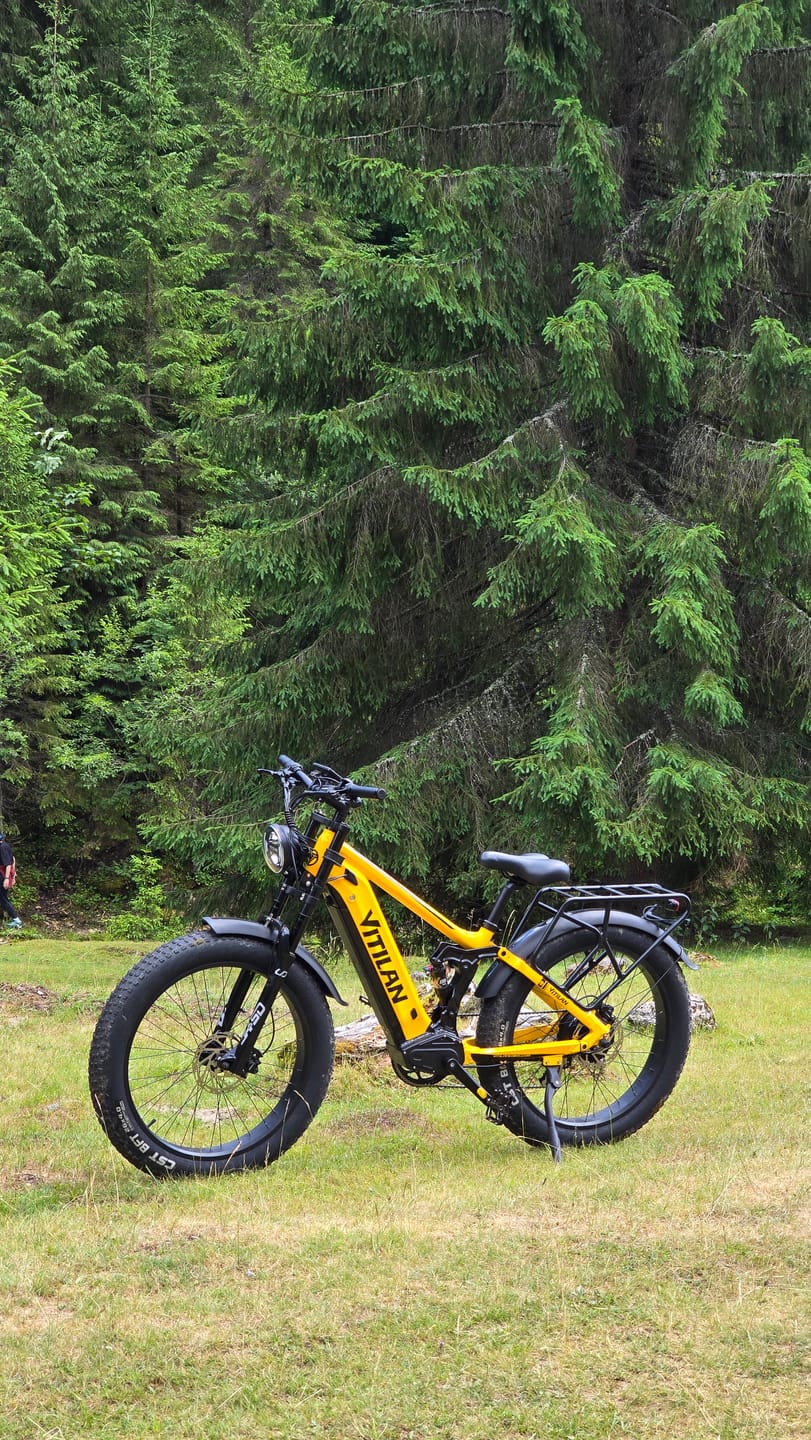

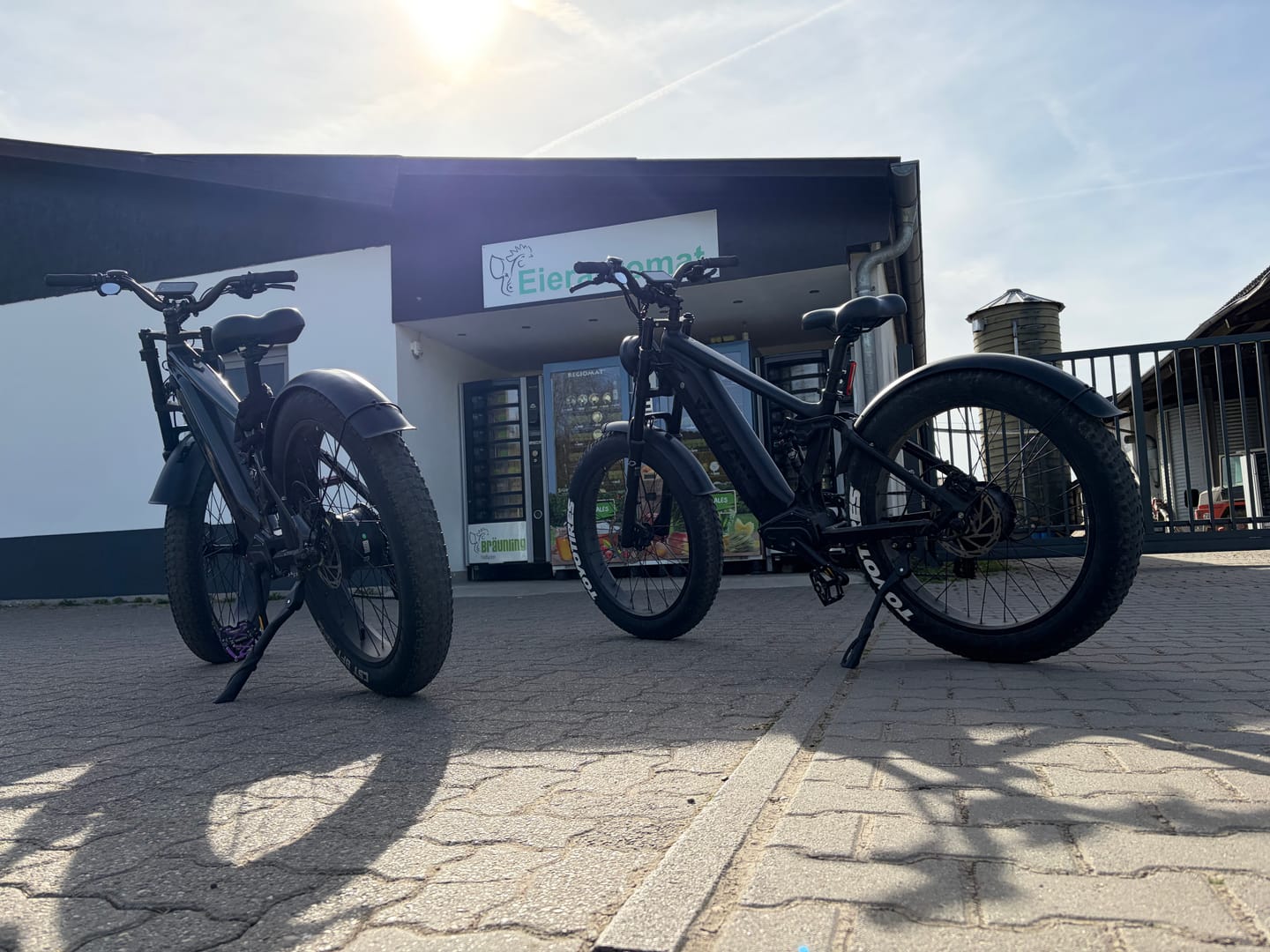

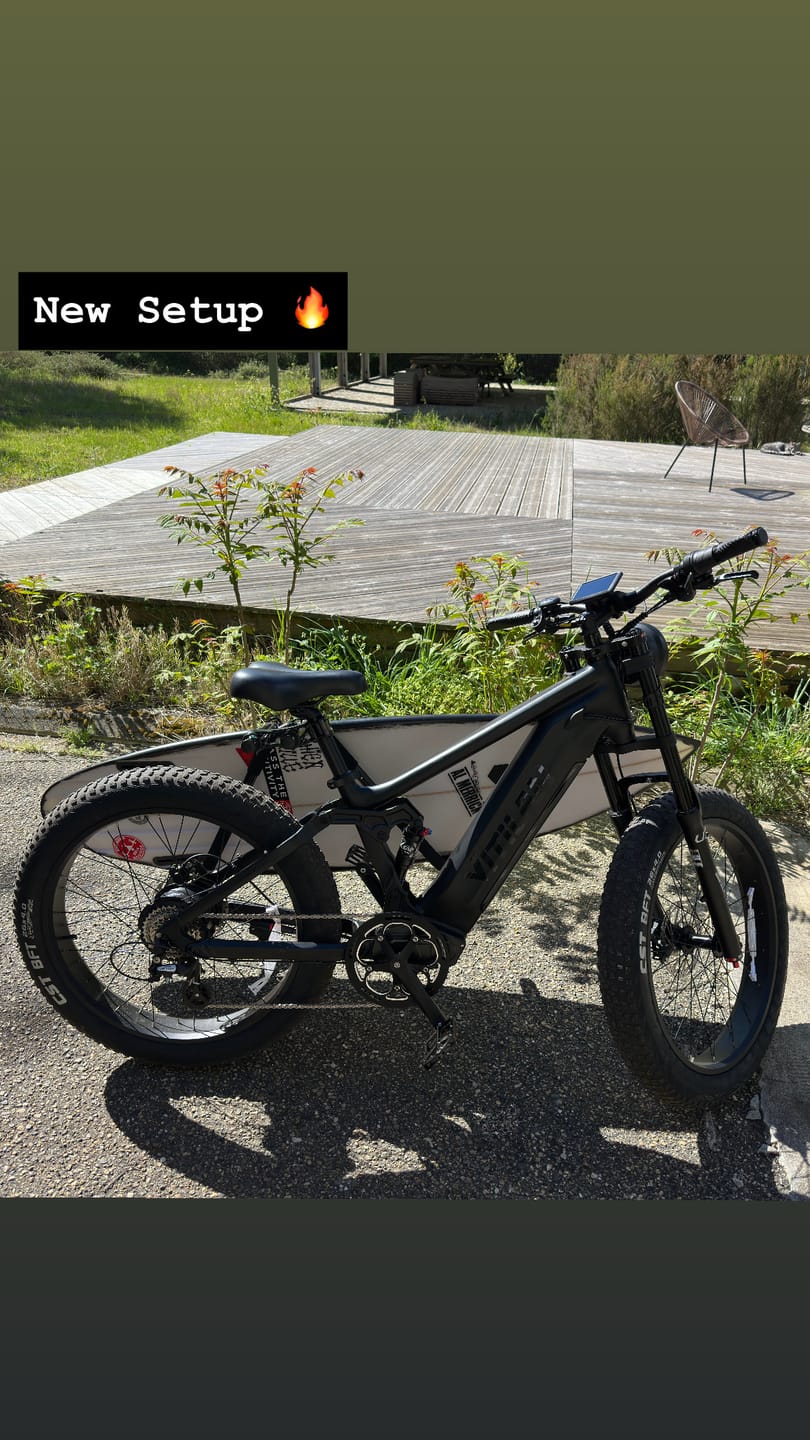

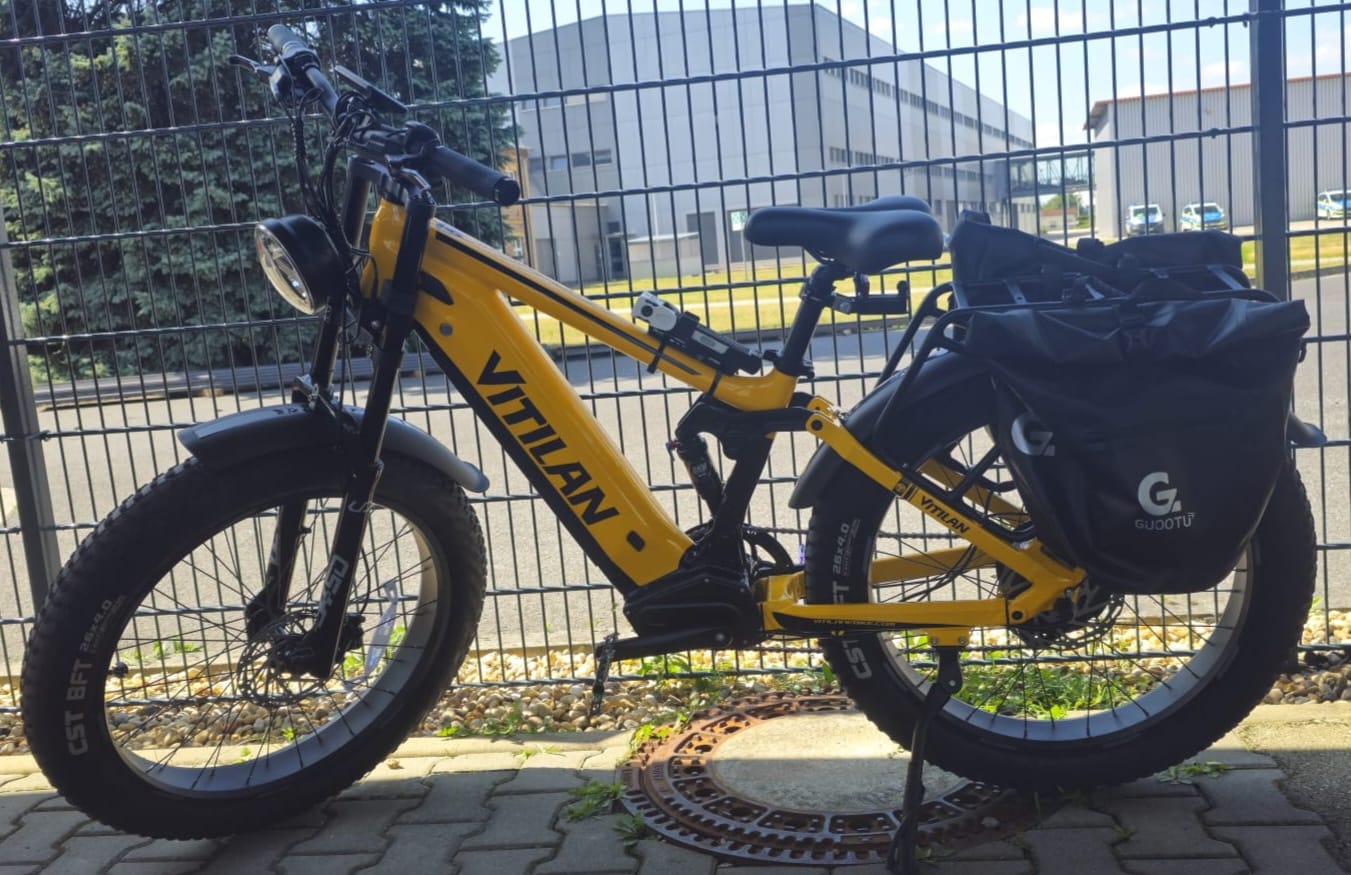

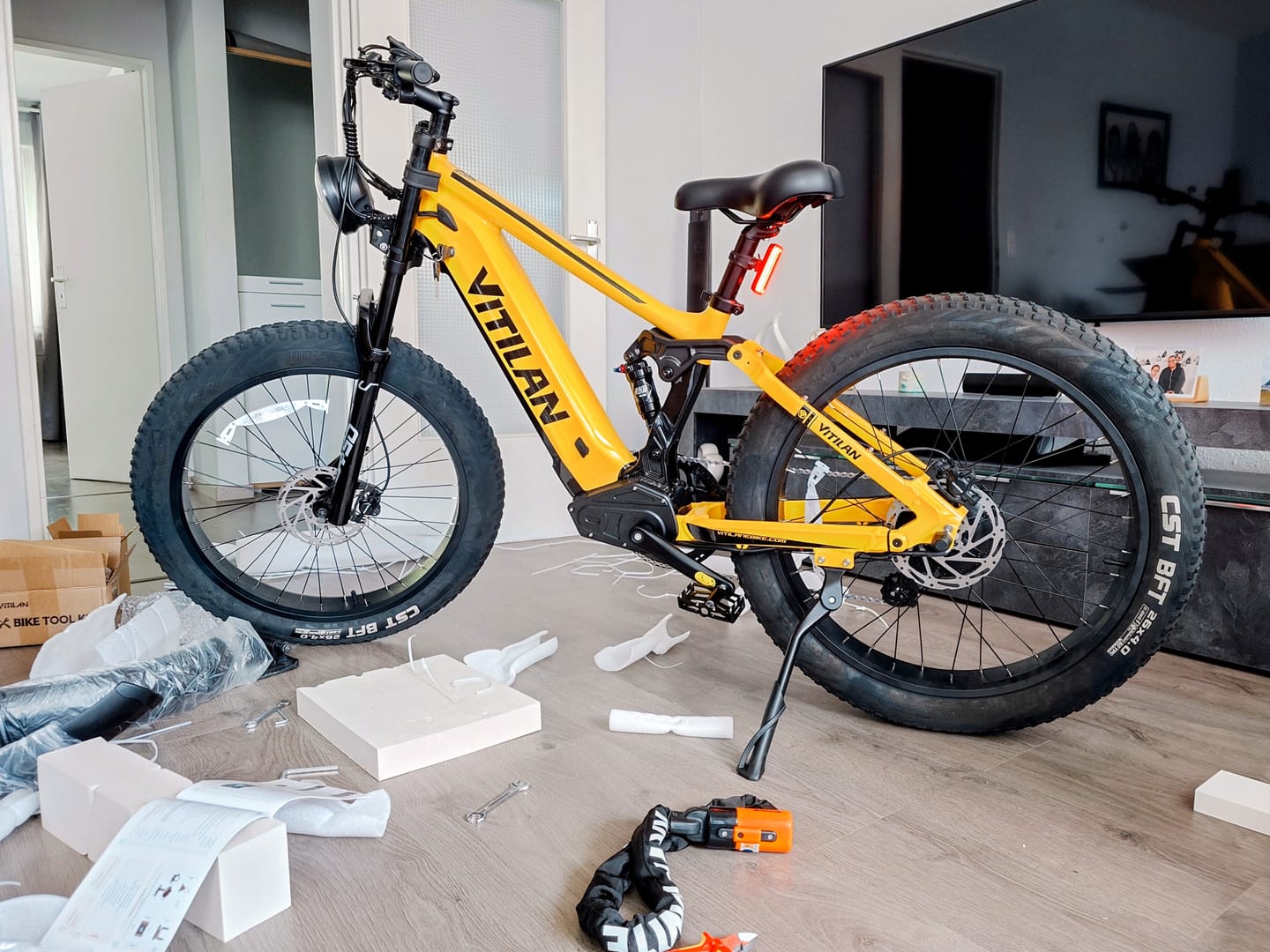

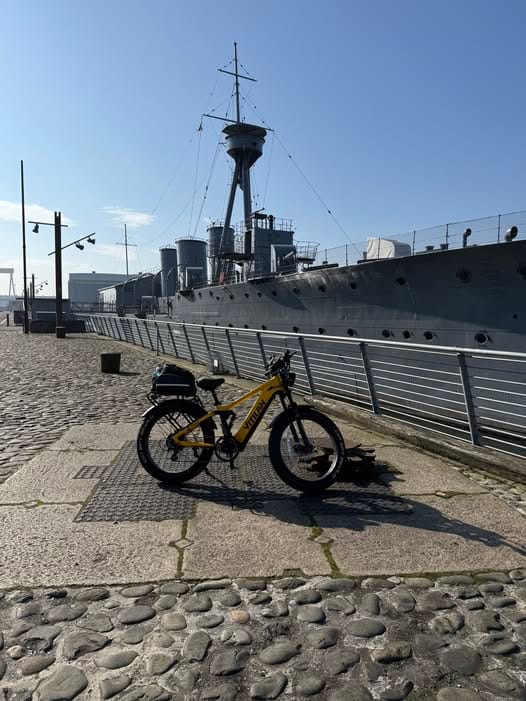

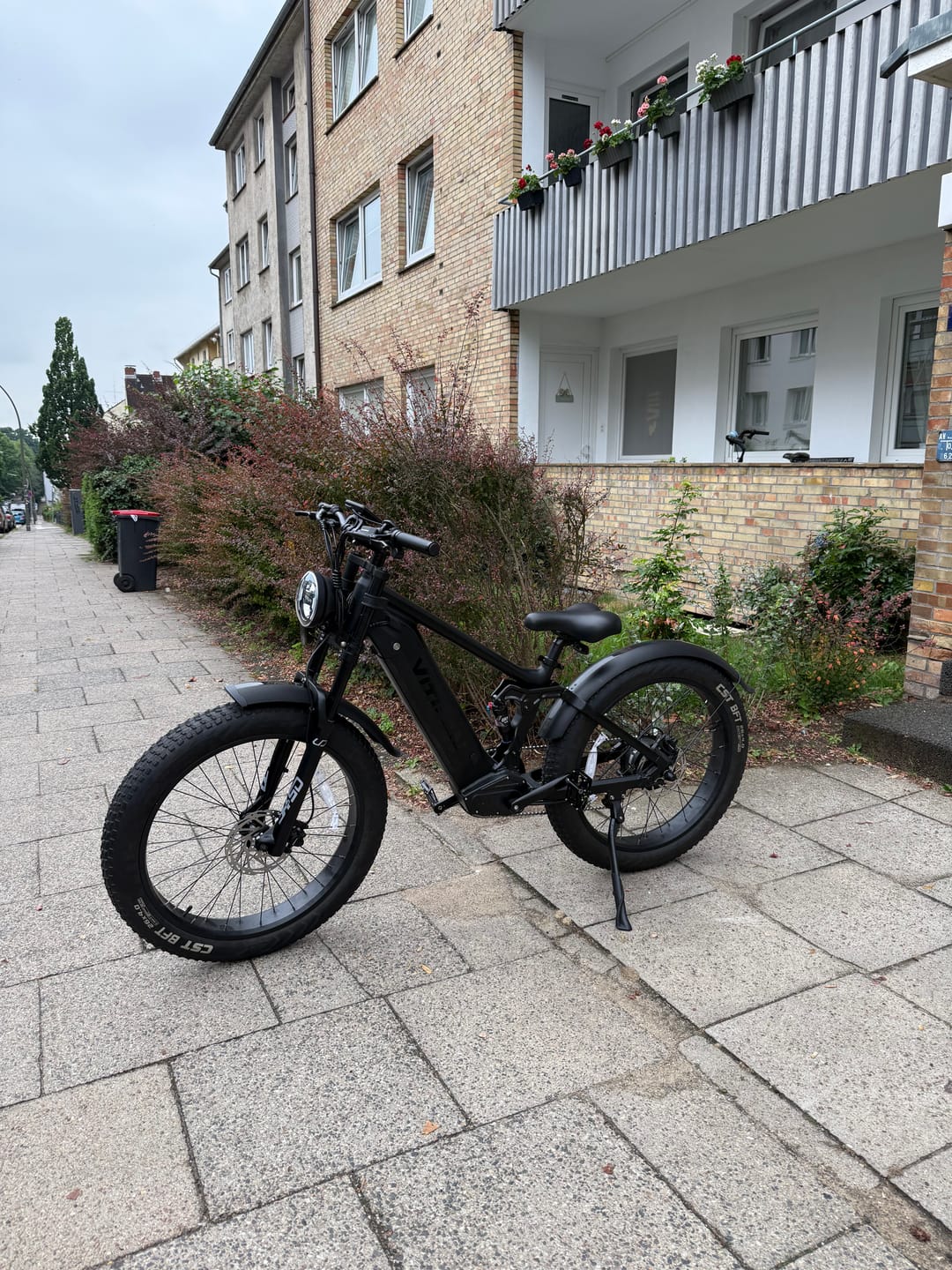

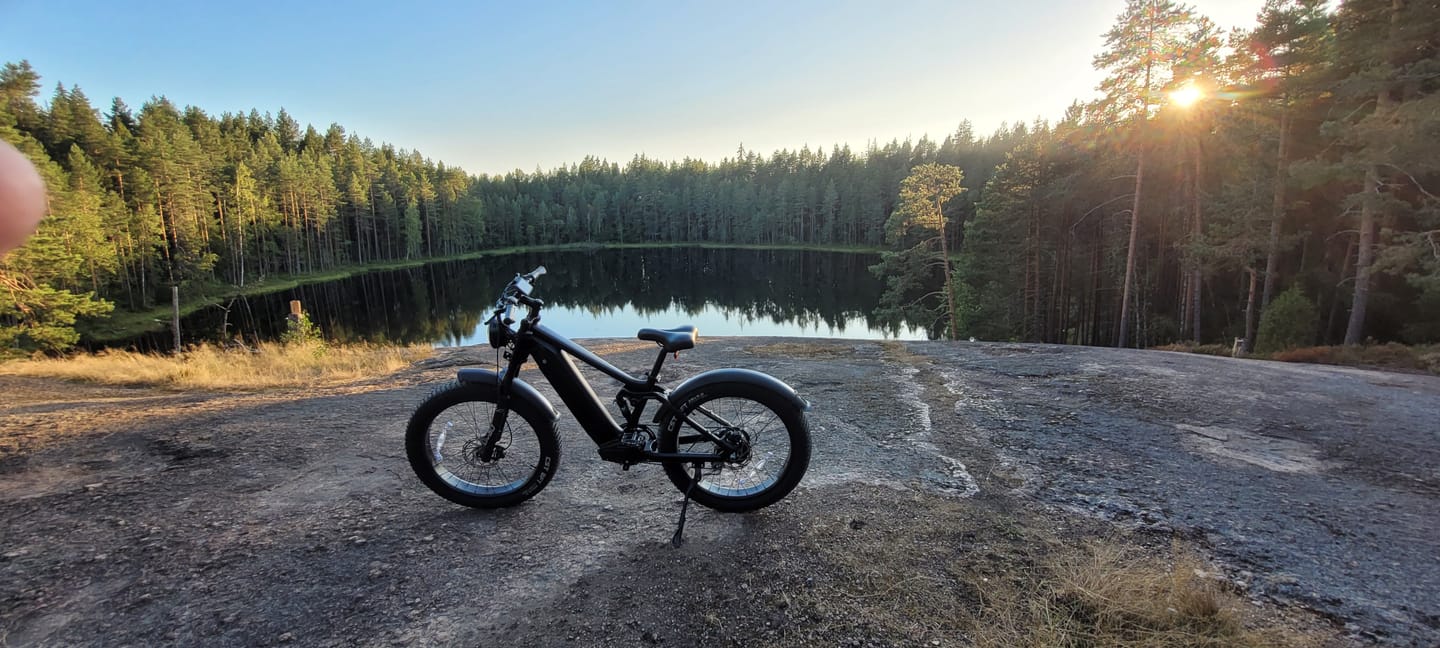

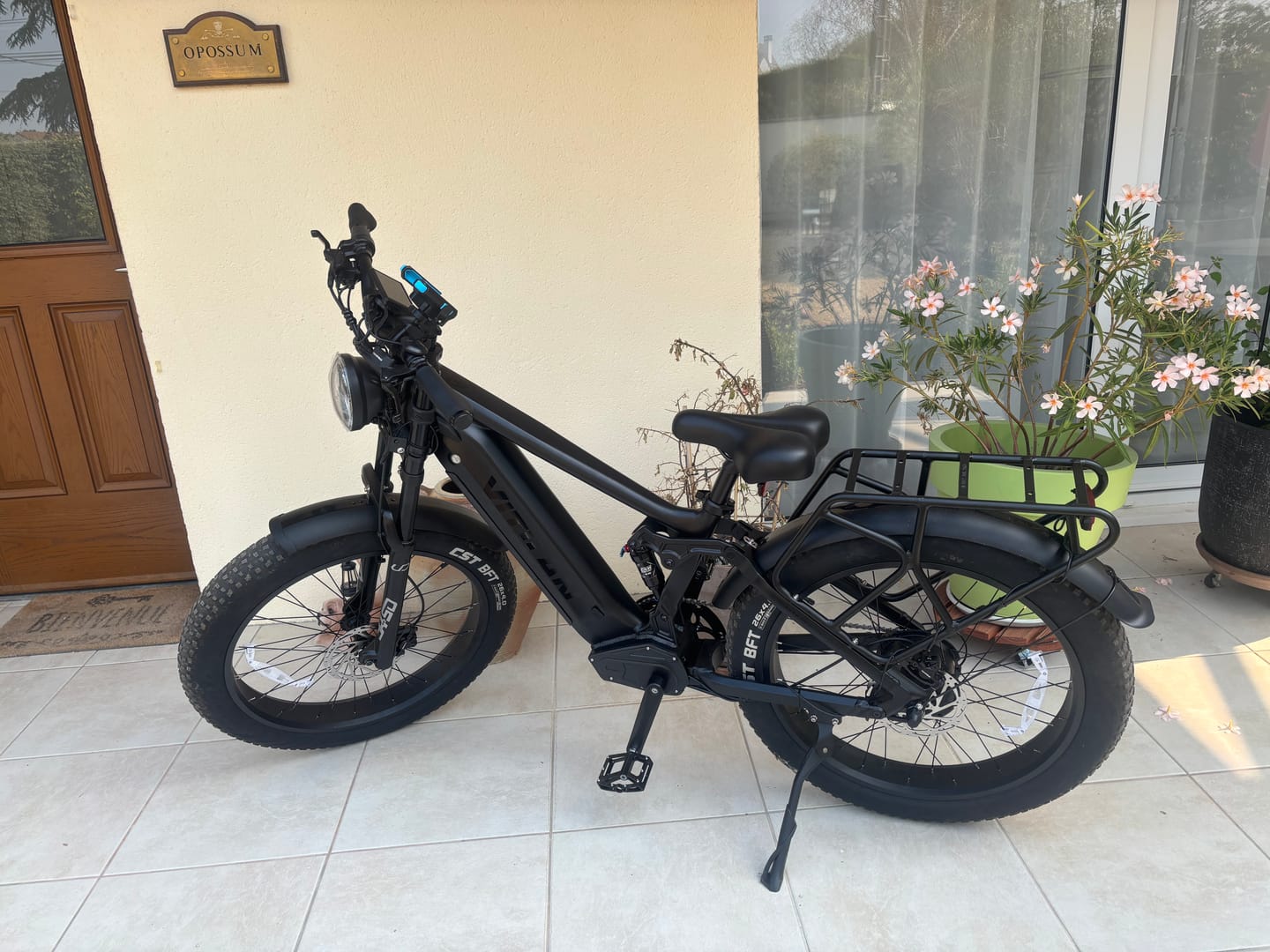

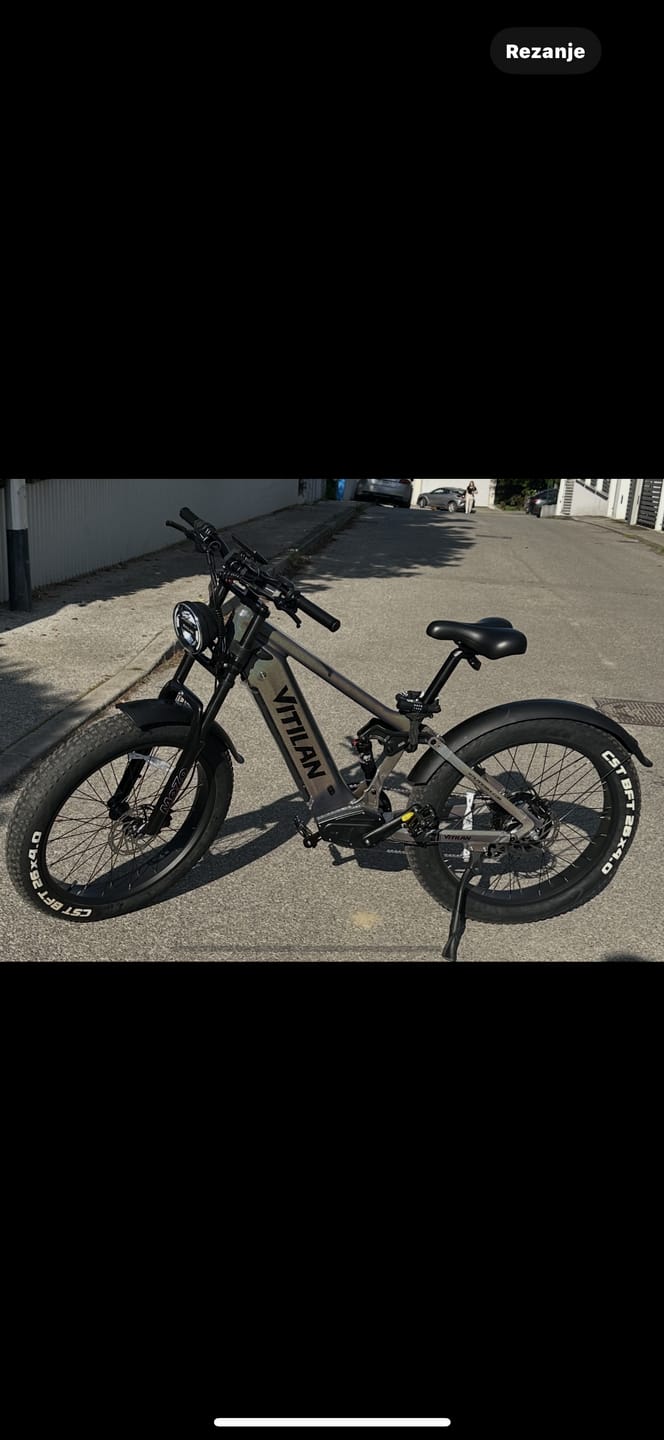

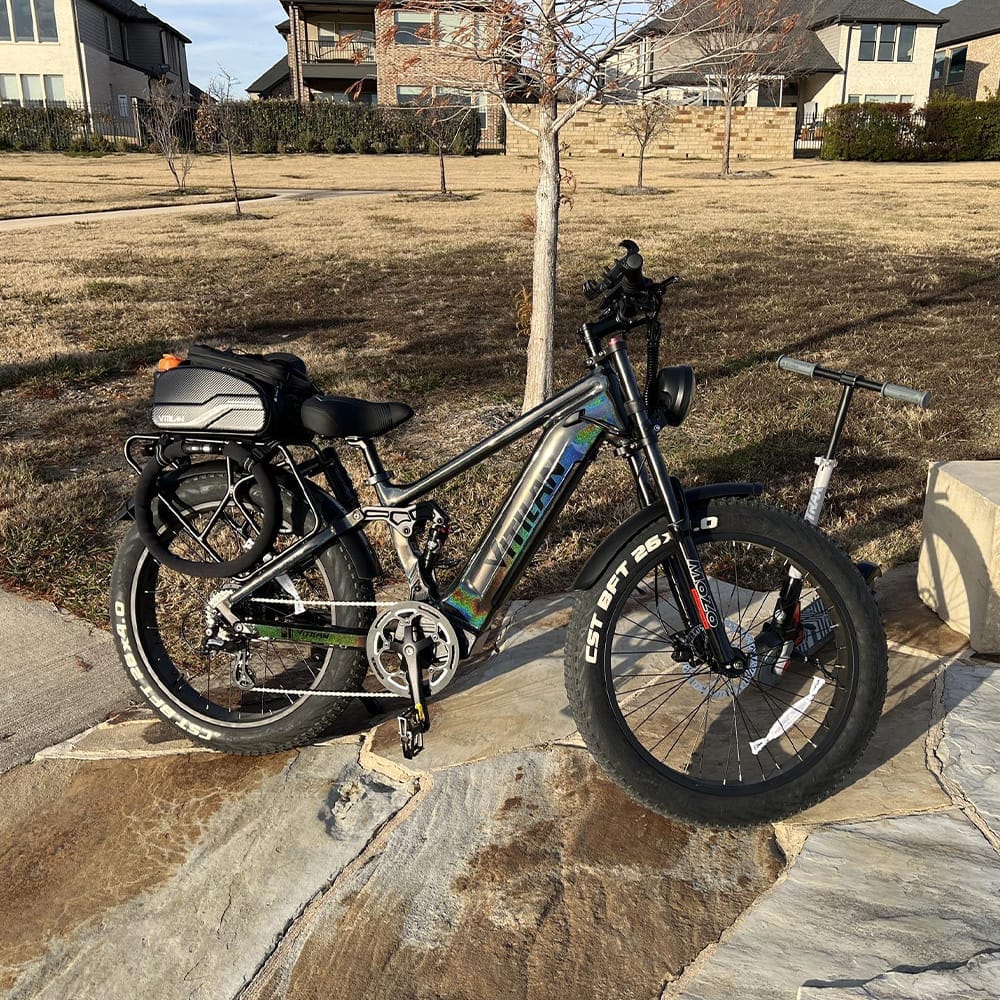

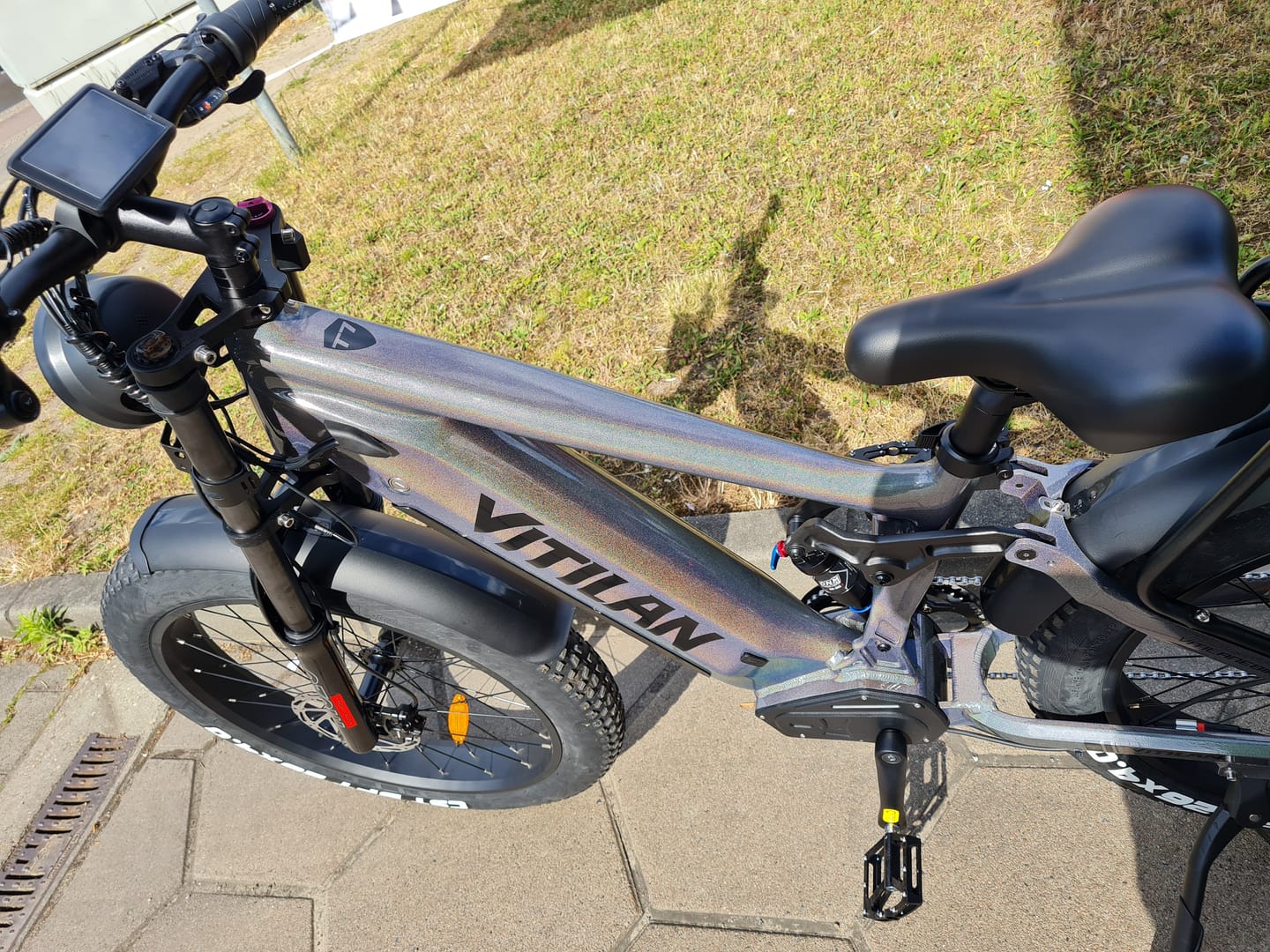

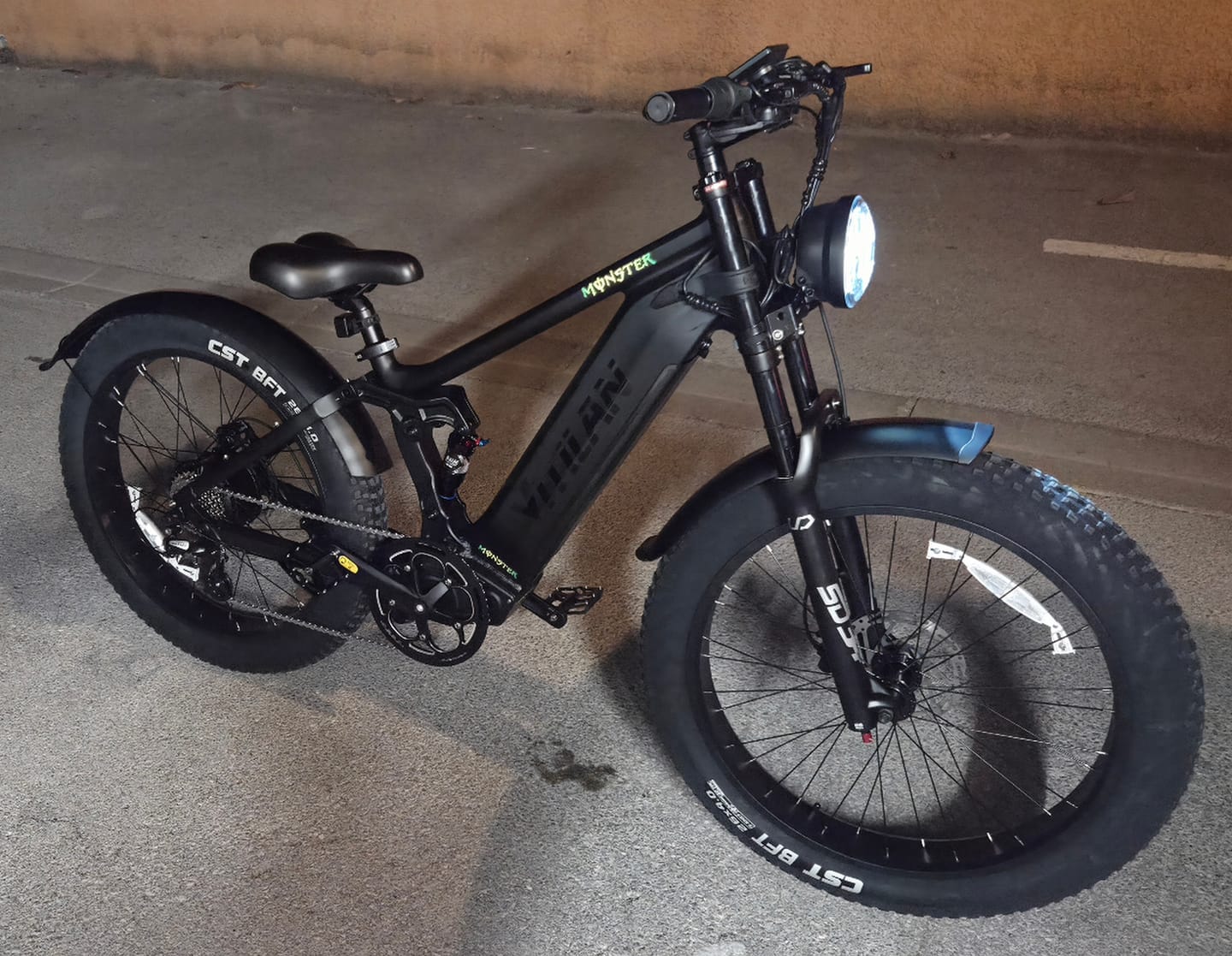

What do they say?
Specification & Geometry
Size & Fit
Geometry
Technical
Performance
Assembly Video
Parts
Size
A. Total Length
76.83''
B. Handlebar Height
45.7''
C. Minimum Seat Height
32.7''
D. Maximum Seat Height
36.84''
E. Top tube length
23.62''
F. Frame to Ground Height
9.84''
G. Handlebar length
26.77''
H. Head tube length
3.74''
I. Wheelbase
47.24''
Recommended Height
5'4''-6'8''
- Frame: Aluminum alloy, fully integrated & lockable down tube battery
- Fork: UDING air dual suspension fork, 105 mm travel
- Tire: CST 26 × 4.0”, puncture-resistant liner
- Rims: Aluminum alloy, 36H
- Seat Post: Aluminum alloy, 250 mm × 33.9 mm, quick release clamp
- Crankset: Aluminum alloy, 26" × 4.0", 170 mm
- Pedals: Full aluminum mountain bike pedals (with pegs)
- Chainrings: 53T
- Chain: KMC X8 Anti-Rust Chain
- Shift Lever: Shimano SL-M315, 8-Speed, thumb shifter
- Motor Hub: 52V 1000W (Peak 1600W), max torque 90 Nm
- Battery: 52V, 20Ah, 1040Wh SAMSUNG Li-ion, UL 2271 certified
- Charger: 58.8V, 3.0A, 110–240V AC, 50–60Hz
- Display: Lishui controller, Fahrenheit temperature display, adjustable steering, adjustable cruise control
- Throttle Assist: Half twist throttle
- Pedal Assist: 1–5 Level, cadence sensor
- Headlight: High output integrated LED, IPX6
- Brakes: TEKTRO 180 mm front & rear hydraulic disc brakes
- IP Level: IPX6
- Motor Hub: 52V 1000W (Peak 1600W), max torque 90 Nm
- Battery: 52V, 20Ah, 1040Wh SAMSUNG Li-ion, UL 2271 certified
- Charger: 58.8V, 3.0A, 110–240V AC, 50–60Hz
- Display: Lishui controller, Fahrenheit temperature display, adjustable steering, adjustable cruise control
- Throttle Assist: Half twist throttle
- Pedal Assist: 1–5 Level, cadence sensor
- Headlight: High output integrated LED, IPX6
- Brakes: TEKTRO 180 mm front & rear hydraulic disc brakes
- IP Level: IPX6
- Pedal Assist Range: 128 km
- Throttle Range: 96 km
- Charging Time: 0–80% in 4 hours, 0–100% in 6 hours
- Standard Speed: 25 km/h
- Max Load: 330 lbs
- T7pro Weight: 84.5 lbs
- Package Weight & Dimensions: 96.5 lbs; 61.8" × 14.1" × 33.8"
T7 FAQS

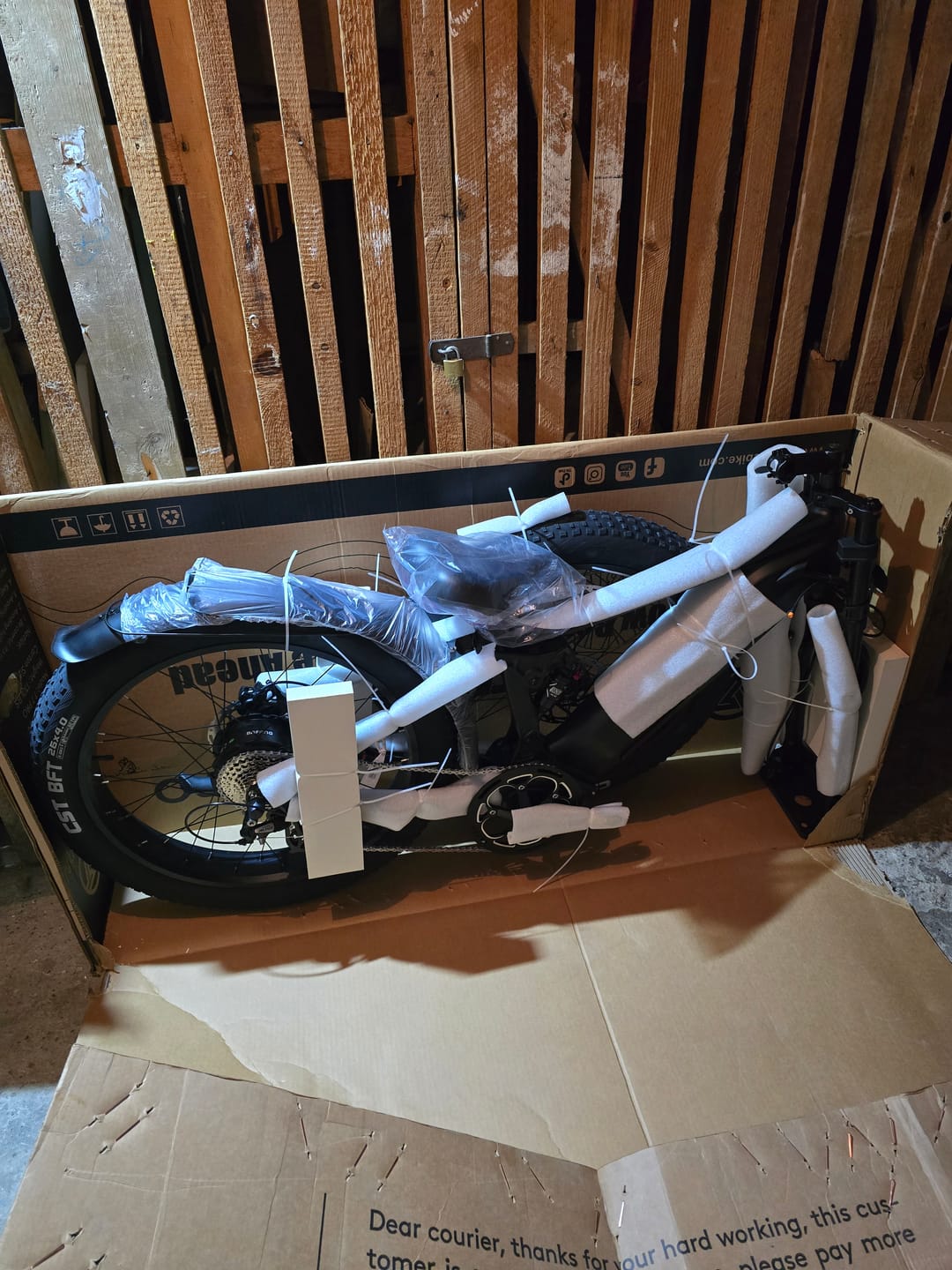

We have pre-assembled 90% of the bike for you. You only need to tighten the wheel bolts, install the seat and handlebars, and attach a few remaining parts to be ready to ride.
The T7 covered for 18 months.
For detailed warranty terms, please refer to our Warranty Policy.
Our T7 PRO can be unlocked to reach a top speed of 56KM/H.
For a tutorial on how to unlock the speed limit, please contact our customer service team.
The T7 meets the IPX6 waterproof standard, protecting against light to moderate rain and splashes.
Avoid riding in heavy rain or extreme weather, and never leave the bike exposed for long periods. Ride safely at all times.
The T7 and T7 PRO batteries are not interchangeable. Please purchase the corresponding battery or other related accessories according to the model you own.
For assistance in selecting the correct battery, please contact our customer support team.
You need to insert the key into the battery first, and then turn on it, lastly, you can press the your display’s start button and set up other operations.
