More Features
Technical Specifications:
Motor Hub:
48V 750W(peak 1200W), max torque 80Nm
Battery:
Samsung 48V13AH detachable battery
Charger:
54.6V 2.0A DC2.1 charging head
Display:
Hydraulic Disc Brake
Throttle Assist:
Halt twist throttie
Headlight:
High output Integrated LED, IPx6
Pedal Assist Range:
128 KM
Throttle Range:
96 KM
Pedal Assist:
1-5 Level,Cadence Sensor
Charging Time:
0-80% 4 Hours,0-100% 6 Hours
Framesets:
Peak Motor
750/1200W
Top Speed
25KM/H
Max Range
48-73 KM
Battery
48V 13Ah
Gear Shifting System
7 Speed
Charging Time
4-6 Hours
Size
Standard: 5’3”-6’5”
SIZE
Total Length
66.14"
Handlebar Height
24.21"
Minimum Seat Height
31.49"
Maximum Seat Height
45.67"
Top Tube Length
41.5"
Wheelbase
44.49"
The Best Electric Bike Choice
The V3 is one of our earliest models and our best-selling one; it is hugely popular with customers. Whether you’re using it for commuting or outdoor adventures, the V3 is sure to bring you joy.
High-Performance Brushless Motor
Powered by a 750W high-performance brushless motor with a peak output of 1200W and 80Nm of torque, it delivers smooth, powerful, and effortless riding. Strong acceleration and consistent power ensure fast, stable performance even on rough roads and steep hills.
750W
Motor Power
25 KM/H
Default Speed
80 Nm
Torque Provided
Removable Lithium Battery
Equipped with a lockable, removable 48V 13Ah lithium-ion battery and a US-standard 48V 2.0A smart charger, it fully charges in just 5–6 hours. A single charge delivers a range of approximately 48–73 km, making it ideal for daily commutes and one-day adventures. The removable design allows for convenient charging at home or in the office.
625 Wh
Battery Capacity
48-73 KM
Miles Per Charge
6 Hours
Charging Time
20×4 CHAOYANG Fat Tires
Equipped with 20×4-inch CHAOYANG fat tires, the bike easily handles both flat and rugged terrain. The anti-skid, wear-resistant design delivers excellent traction and grip on sand, dirt, grass, trails, hills, and mountain roads. With improved load capacity and strong shock absorption, it ensures a stable, comfortable ride even in challenging weather and rough conditions.
Multifunction Display
The multifunction display lets you monitor real-time speed, track riding mileage, and adjust pedal assist levels from 1 to 5. It clearly shows remaining battery power and allows easy control of the headlight and rear light. The built-in 8-second cruise control maintains a steady speed without using the throttle, while additional customizable settings let you tailor the ride to your needs.
Foldable Design
The foldable design saves space at home or in the garage, making storage simple and convenient. Easily fold the e-bike and place it in a large trunk, perfect for taking on trips or vacations. Lightweight and portable, it’s designed to go wherever your adventure takes you, without hassle.
The Best Electric Bike Choice
V3 fulfills all your needs, adventure, short trip and commute.
VIEW VIDEO
48V 13Ah
Lithium-Ion Battery
750 W
Motor Capacity
48-73 KM
Range
25 KM/H
Default Speed
5-6 Hours
Charging Time
330 Lbs
Max Load
What online reviewers say
High-Performance Brushless Motor
750W high-performance motor (peak 1200W) and a 80Nm torque for smooth, exciting, and effortless riding. experience even smooth and fast passage even over rough roads and hills.
750 W
Motor Power
80 Nm
Torque Provided
25 KM/H
Default Speed
Removable Lithium Battery
One built-in lockable 48V 13Ah Li-ion battery with the US standard 48V 2.0A smart charger. only takes 5-6 hours per charge to travel 48-73 Km. Plenty for most one-day adventures and commutes. Easy to remove and charge at your home or office.
625 Wh
Battery Capacity
48-73 KM
Miles Per Charge
6 Hours
Charging Time
20*4 CHAOYANG Fat Tires
20*4 inches fat tires help you to pass the flat and rugged terrain easily. Anti-skid and wear-resistance fat tires can easily overcome sand road, dirt road, grass road, mountains, trails, hills. Impressive traction and grip, improved payload capacity being more friendly for riders. Even under the challenging weather and terrains, it still can buffer the bump and offer you a comfortable ride.
Multifunction Display
Monitoring and setting up your real-time speed, recording your riding mileage, adjusting 1-5 levels of the pedal assist, displaying your battery remaining, and turning on/off your headlight and rear light. Setting up 8 seconds cruise control system, even without the assistance of the accelerator, still can help you keep the same speed and move forward quickly and steadily, providing other setting functions according to your demand.
For more information
- Battery: 48V 13A Lithium Battery
- Mile Range: 48+ km
- Motor: 750W (peak 1200W)Brushless Motor
- Throttle: Half-Twist Throttle
- Pedal Assist level: 1~5 Level
- Front Fork: Mechanical Suspension Front Fork
- Saddle: PVC Soft Leather
- Pedal: Semi-aluminum Alloy Pedals
- Crank: 170mm Forged Alloy
- Brake: Hydraulic Disc Brake
- Default Speed: 25KM/H
- Maximum throttle speed when unrestricted: 45KM/H
- Charger: 48V 2.0 A Smart Charger
- Controller: 48V / 25A
- Max Payload Capacity: 330lbs
- Recommended Rider Heights 5'4" ~ 6'5"
- Tires: CHAOYANG 20" x 4" Fat Tires
- Gear Shifting System: Shimano 7 Speed Gear
- Rear Light: Signal Turn Light/48V LED Light
- Head Light: 48V LED Light
- Front Light: 48V LED Light
Electronic Control PAS Levels
PAS Levels Corresponding Speed and Range
PAS-1
PAS-2
PAS-3
PAS-4
PAS-5
Test results based on a 170 lbs rider on flat roads at 33°C. Actual range may vary based on terrain and riding conditions.
Hydraulic Disc Brake
High-performance 180mm hydraulic disc brakes deliver smooth, quiet, and powerful stopping. Quick-response braking ensures safety on rainy or slippery roads, giving you full control and confidence in any condition.
Adjustable Suspension Fork
The adjustable suspension fork effectively absorbs impacts from the ground and obstacles, reducing bumps and vibrations on rough roads. It enhances stability and control, delivering a smooth, comfortable ride even on hills and challenging terrain.
Integrated Headlight & Taillights
The bright 48V headlight and rear LED lights provide clear illumination for safer riding both day and night. The integrated rear turn signals enhance visibility and act as effective safety warnings when riding in traffic or crowded areas.
Shimano 7-Speed Derailleur
Made from durable aluminum alloy, the Shimano 7-speed derailleur delivers smooth and reliable shifting for safe, stable riding. Multiple fine-tuning adjustments ensure precise gear changes and consistent performance across different riding conditions.
Holster Half-Twist Throttle
The convenient half-twist throttle gives you effortless, precise control, letting you boost speed instantly on flat roads or climb hills without extra pedaling. Reduce fatigue, ride farther, and enjoy a smooth, powerful, and fun experience every time—just a simple twist is all it takes.
What do they say?
Specification & Geometry
Size & Fit
Geometry
Technical
Performance
Assembly Video
Parts
Size
A. Total Length
66.14"
B. Adjustable Handlebar Height
46.06"-52.36"
C. Wheelbase
44.49"
D. Minimum Seat Height
31.49"
E. Maximum Seat Height
45.67"
F. Chain Stay Length
19.09"
G. Stand Height
28.74"
H. Top Tube Length
24.41"
I. Wheel Diameter
20.47"
J. Headlebar Length
24.21"
K. Minimum Head Tube Length
13.38"
L. Minimum Seat Height
19.68"
N. Folded Length
38.7"
M. Folded Width
19.7"
O. Folded Height
29.8"
- Recommended Rider Heights: 5'4" ~ 6'5"
- Tires: CHAOYANG 20" x 4" Fat Tires
- Pedal: Semi-aluminum Alloy Pedals
- Crank: 170mm Forged Alloy
- Battery: 48V 13A Lithium Battery
- Motor: 750W (peak 1200W) Brushless Motor
- Throttle: Half-Twist Throttle
- Pedal Assist Level: 1~5 Level
- Front Fork: Mechanical Suspension Front Fork
- Saddle: PVC Soft Leather
- Brake: Hydraulic Disc Brake
- Gear Shifting System: Shimano 7 Speed Gear
- Charger: 48V 2.0A Smart Charger
- Controller: 48V / 25A
- Rear Light: Signal Turn Light / 48V LED Light
- Head Light: 48V LED Light
- Front Light: 48V LED Light
- Mile Range: 48+ km
- Default Speed: 25 KM/H
- Maximum Throttle Speed (unrestricted): 45 KM/H
- Max Payload Capacity: 330 lbs
FAQS
The V3 2.0 is a folding fat tyre electric bike with 20"x4" tyres. The wide tyres offer strong grip and shock absorption, handling terrain like sand and gravel with ease, while the folding design also makes it perfect for daily commuting.
Range on the V3 2.0 varies by riding mode — around 48km in pure electric mode, up to 73km with pedal assist — powered by a 48V 13Ah battery, enough for daily commuting. For extra range, you can add a Vitilan Extended-Range Battery.
Yes. The V3 2.0's battery can be released with one click and taken out to charge directly, without needing to move the whole bike to a power source, making it easy to store and carry.

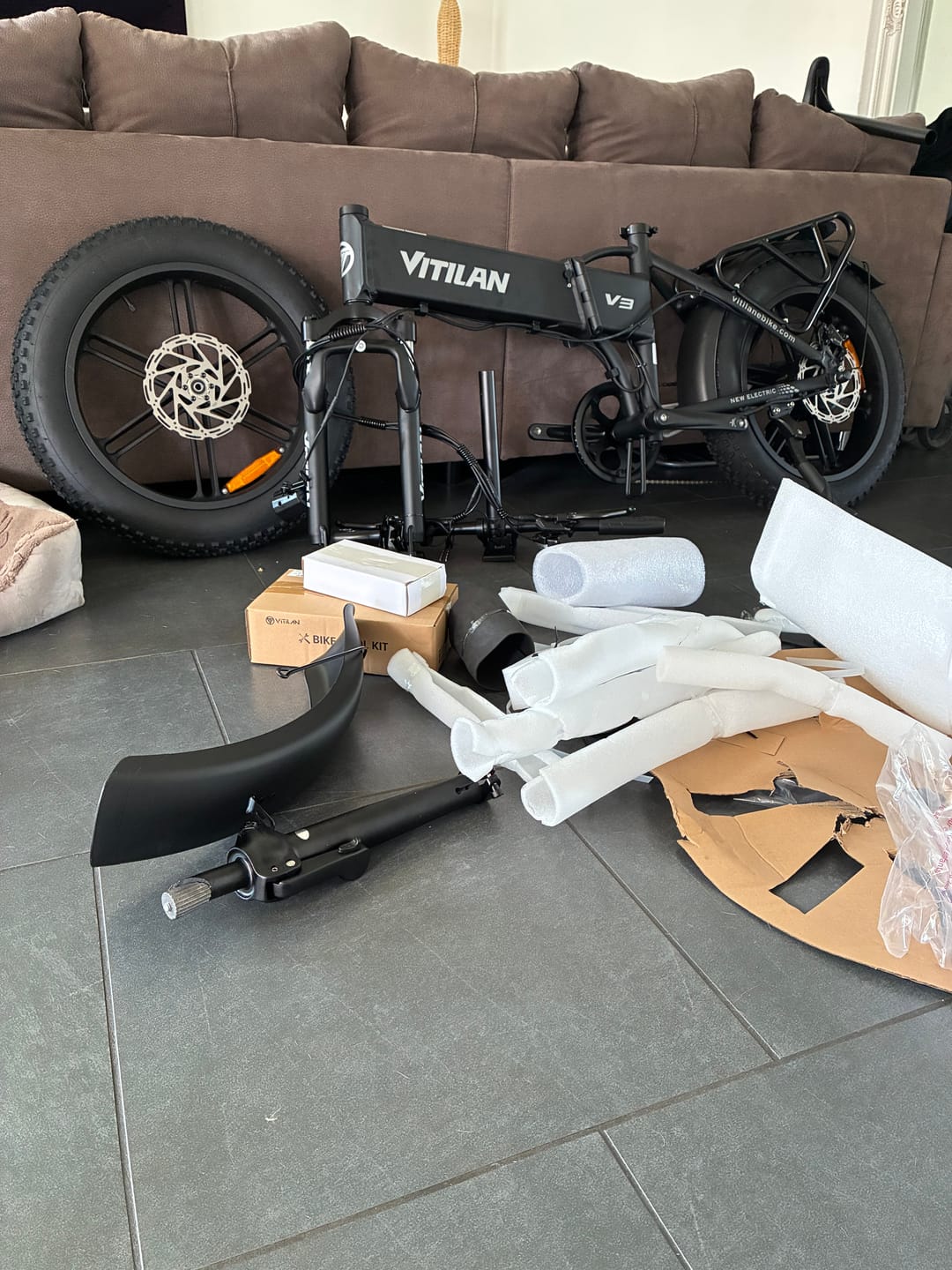

Your bike arrives 90% pre-assembled. All you need to do is tighten the wheel bolts, fit the saddle, handlebars, and front wheel, and connect a few remaining parts — then you're ready to ride.
The V3 2.0 is rated to IPX6, offering protection against light to moderate rain and splashes. Avoid riding in heavy rain or extreme weather, and never leave the bike exposed outdoors for long periods. Always ride safely.
The V3 2.0 comes with a 12-month warranty. Please refer to our warranty policy for full terms and conditions.
