Technical Specifications:
Motor Hub:
48V 750W(peak 1200W), max torque 80Nm
Battery:
48V, 20Ah, 960Wh SAM-SUNGLi-ion Battery
Charger:
54.6V 3.0A Microphone charging head
Display:
Aluminum alloy mechanical suspension front fork, Hydraulic Disc Brake, Dual Suspension System
Throttle Assist:
Halt twist throttie
Headlight:
High output Integrated LED, IPx6
Pedal Assist Range:
104 KM
Throttle Range:
65 KM
Pedal Assist:
1-5 Level,Cadence Sensor
Charging Time:
0-80% 4 Hours,0-100% 6 Hours
Power & Energy:
Peak Motor
750/1200W
Top Speed
25KM/H
Max Range
65-104 KM
Battery
48V 20Ah
Gear Shifting System
7 Speed
Charging Time
4-6 Hours
Size
Standard: 5’3”-6’5”
SIZE
Total length
68.5"
Wheelbase
48"
Minimum seat to floor
33.8"
Maximum seat to floor
37.4"
Handlebar height
24.1"
High-Quality Brushless Motor
Equipped with a 750W high-performance brushless motor (peak 1200W) delivering up to 80Nm of torque, the Electric U7 is built to power through any weather and conquer all terrains. Enjoy strong acceleration, confident hill climbing, and smooth, reliable performance that takes you wherever you want to go.
750W
Motor Power
25 KM/H
Default Speed
80 Nm
Torque Provided

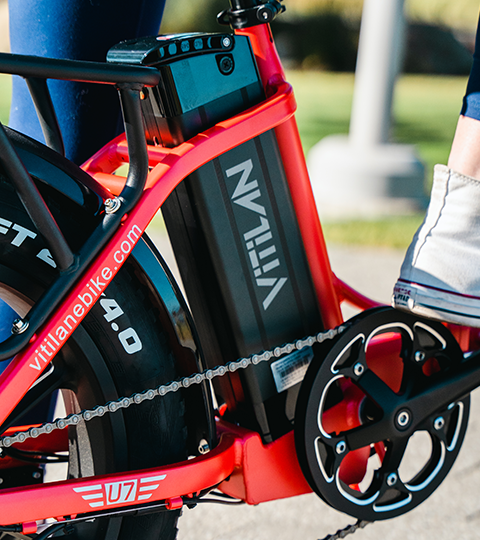

LG Removable Lithium Battery
Equipped with a 48V 20Ah removable lithium battery using premium SAM-SUNG cells, this e-bike delivers superior battery life, higher stability, and longer range than most common batteries on the market. Enjoy up to 89 km on a single charge, with consistent and reliable power output. The removable design allows convenient charging at home, in the garage, or at the office, while the 5–6 hour fast charging time keeps you ready for every ride.
960Wh
Battery Capacity
65-104 KM
Miles Per Charge
5-6 Hours
Charging Time
Dual Suspension System
The front suspension fork absorbs bumps and vibrations for a smoother, more stable ride, while the comfortable adjustable seat with built-in shock absorption further reduces impact. Together, they deliver enhanced comfort and control, letting you ride confidently over rough roads and uneven terrain.
Smart LED Display
Any riding data, such as speed, riding time, mileage, and remaining power, can be displayed for your grasp. The large LED screen guarantees you to catch your statistics easily.
Electronic Control PAS Levels
PAS Levels Corresponding Speed and Range
PAS-1
PAS-2
PAS-3
PAS-4
PAS-5
Test results based on a 170 lbs rider on flat roads at 33°C. Actual range may vary based on terrain and riding conditions.
More Features

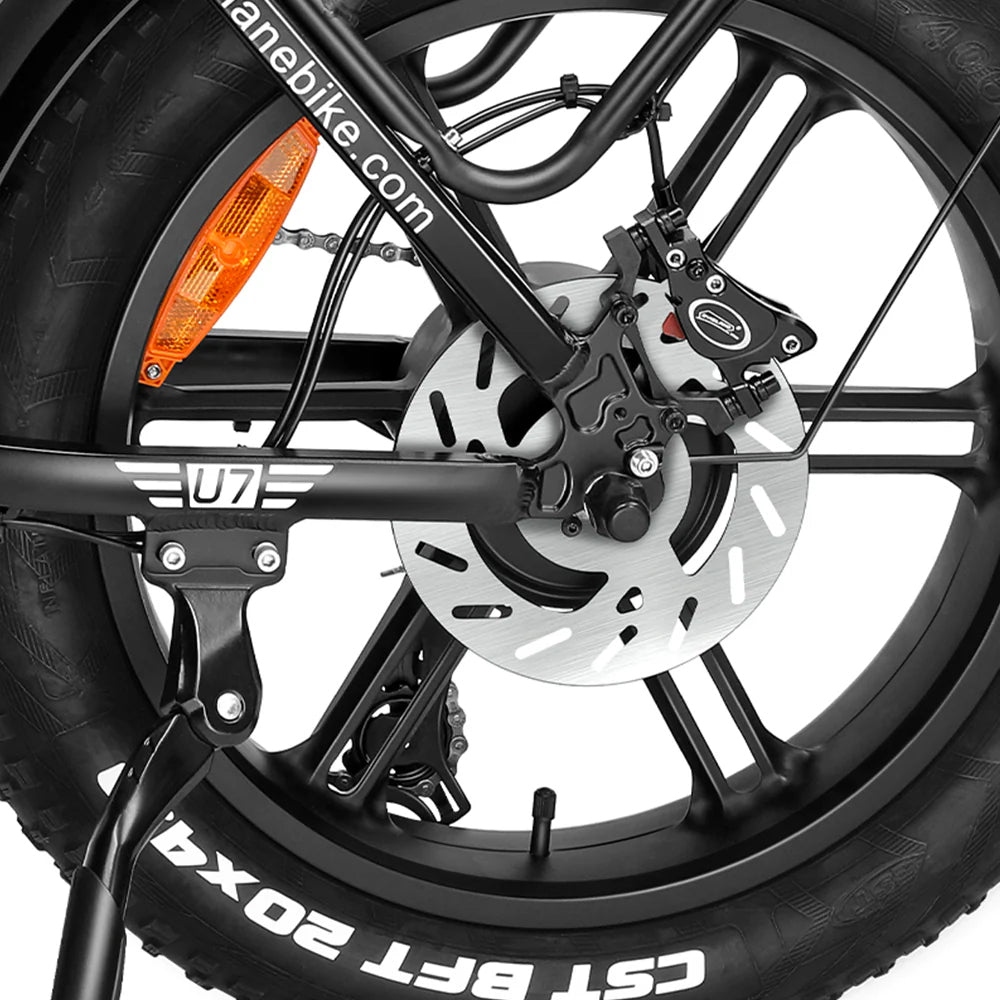

180mm Hydraulic Disc Brake
High-performance 180mm hydraulic disc brakes deliver powerful, smooth, and quiet stopping. The quick-response braking system ensures reliable control and shorter stopping distances, even on rainy days or slippery roads, giving you confidence and safety in any riding condition.

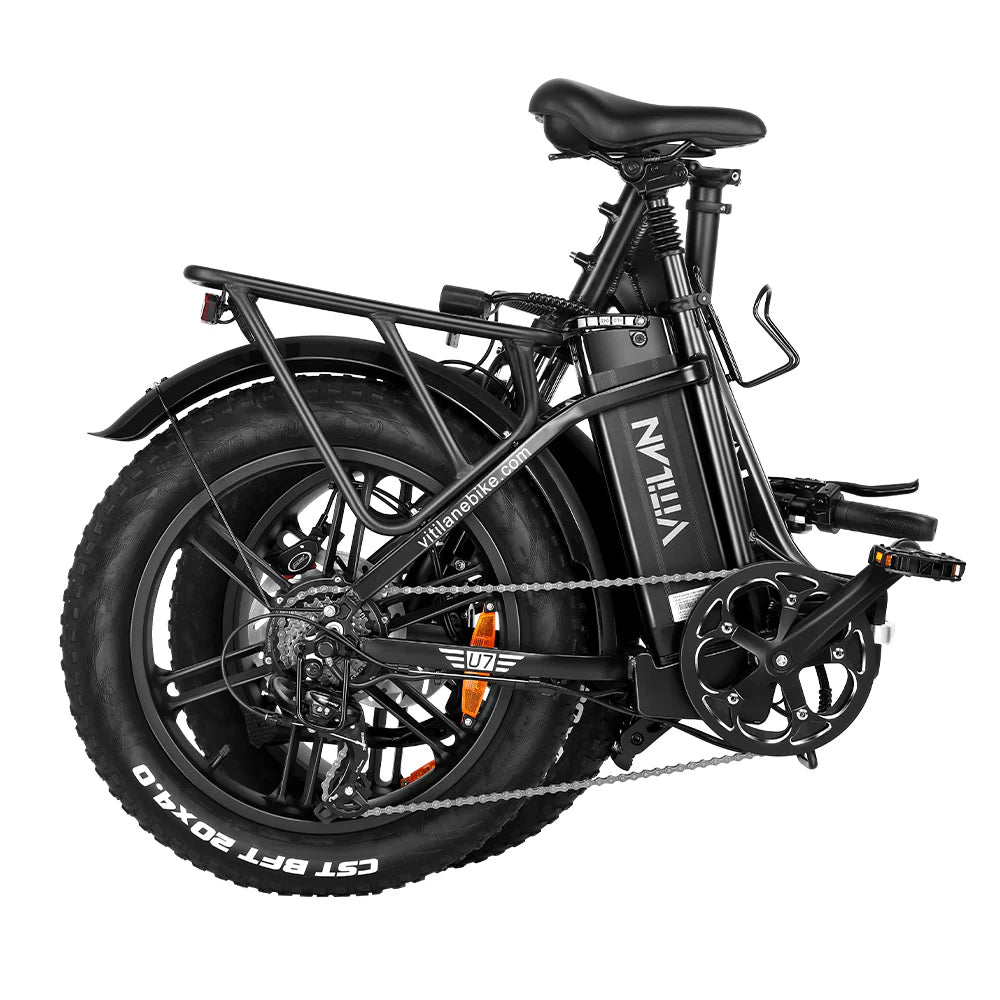

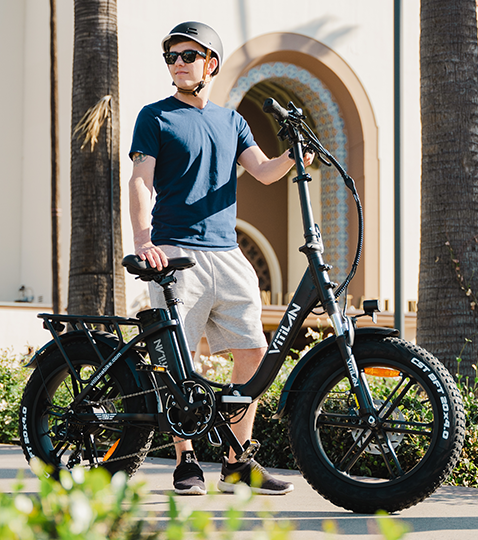

Foldable Suspension Frame
The foldable suspension frame saves space at home or in the garage and makes storage effortless. Easily fold the e-bike to fit in a large trunk, making it convenient to take along on trips or vacations. Enjoy portability without compromising comfort or performance, wherever your adventures take you.

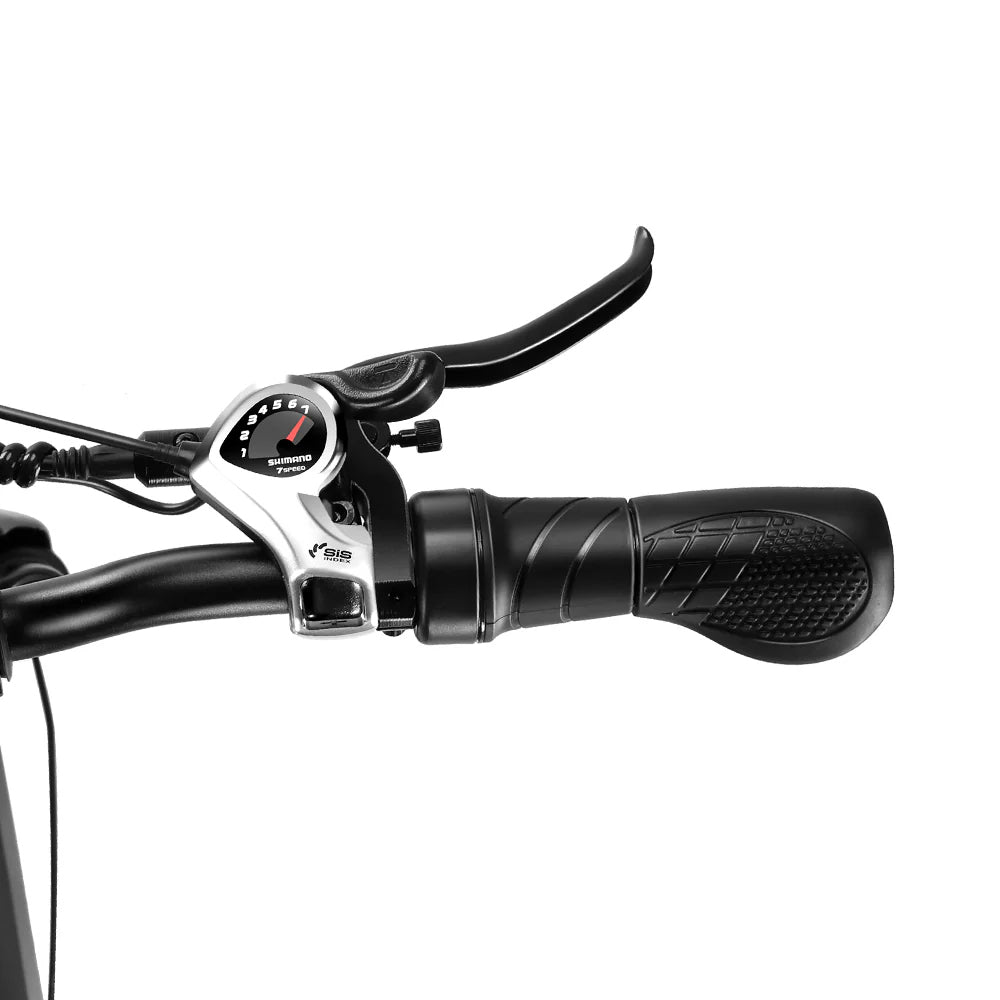

Twist Grip Throttle & Shimano 7-Speed
The newly upgraded twist grip throttle frees your thumb, making speed control easier and your ride safer. Combined with Shimano 7-Speed gears, enjoy a wide, smooth, and precise shifting range that lets you effortlessly adapt to any terrain—whether cruising city streets or tackling hills and trails.

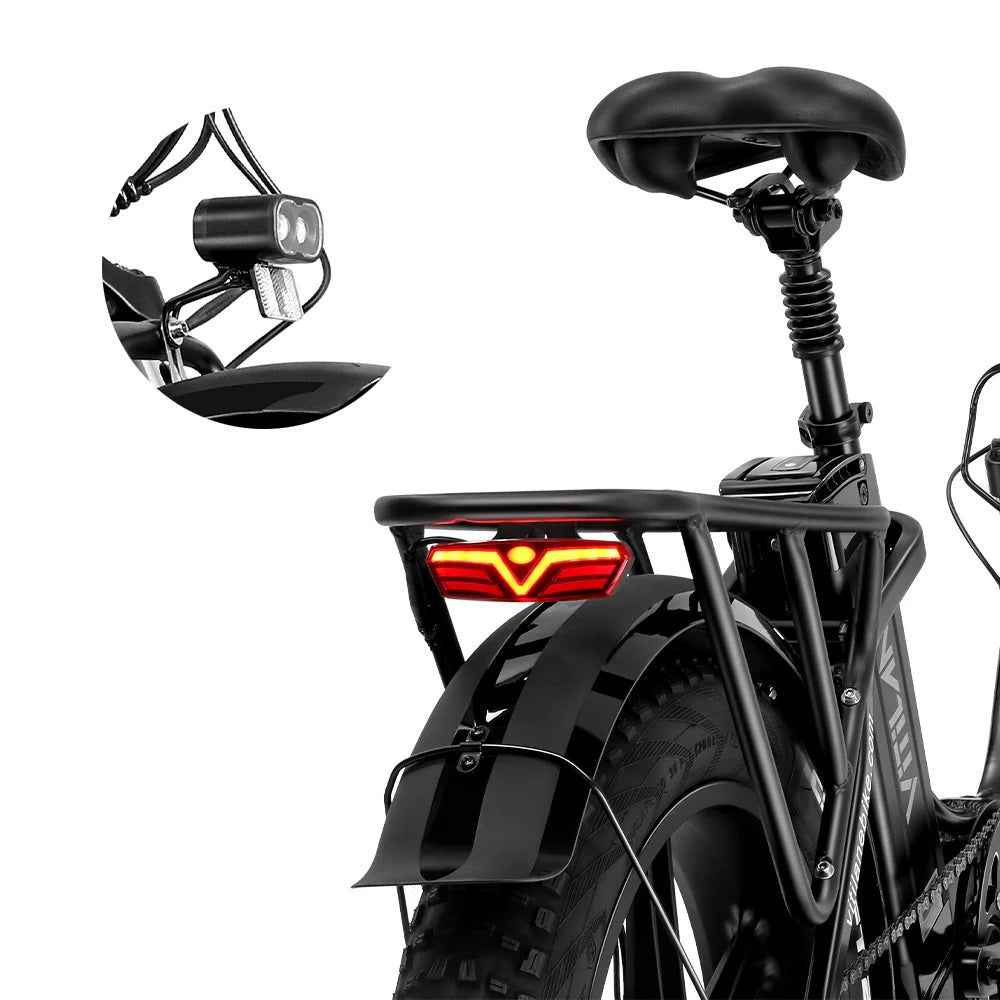

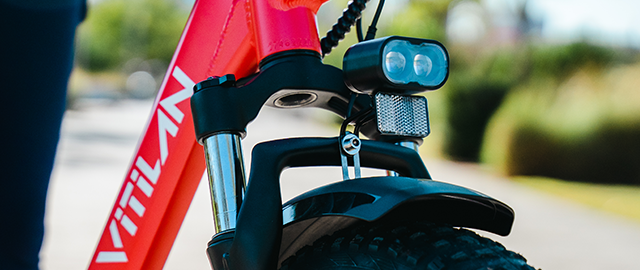

LED Headlight and Rear Turn Signal Light
Bright 48V LED headlights and rear lights illuminate the road ahead, ensuring visibility and safety during both day and night rides. The superhero-style rear turn signal provides a clear warning to traffic and pedestrians, keeping you safe and confident in any environment.

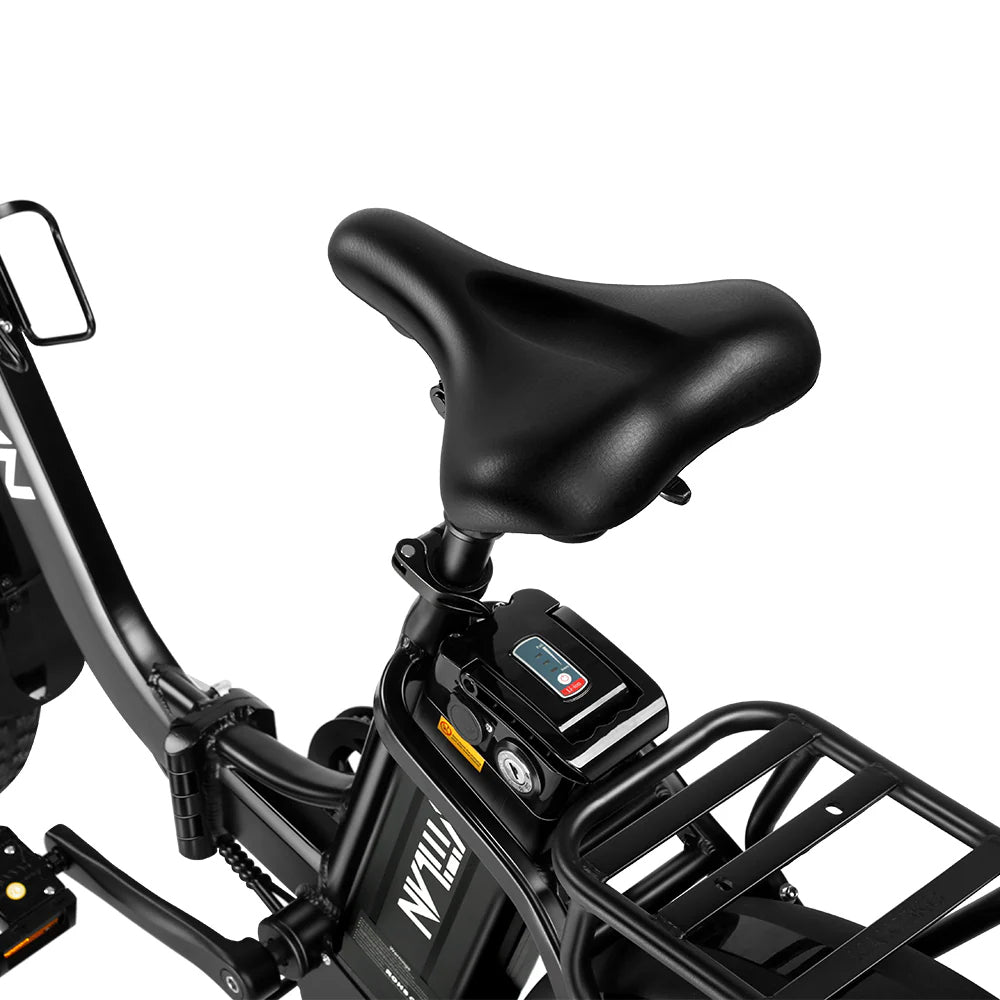

Comfortable Damping Seat
The adjustable, shock-absorbing seat ensures a smooth and stable ride, reducing fatigue even on long journeys or rough terrain. Designed for comfort and control, it makes every ride more enjoyable and effortless.

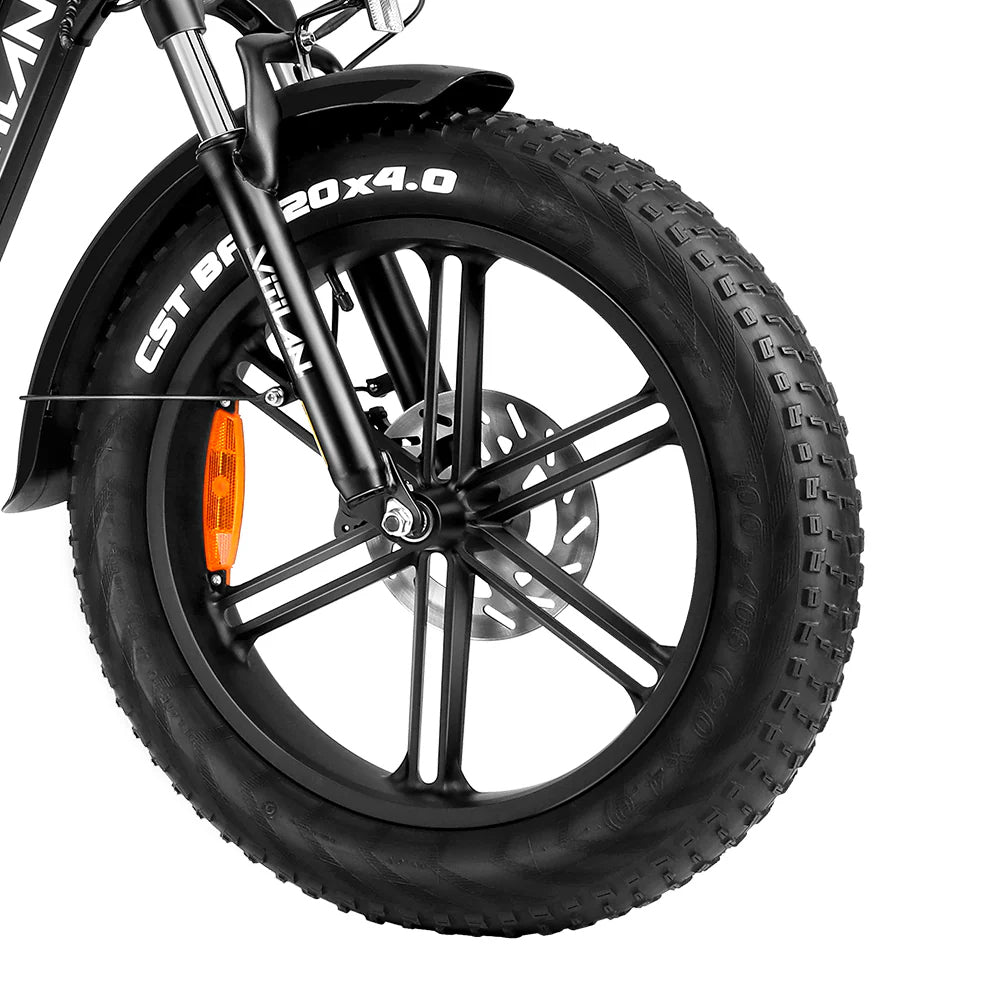

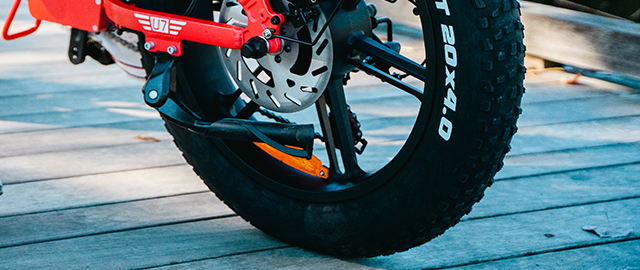

20" x 4" Puncture-Resistant Fat Tire
These 20" x 4" fat tires reduce ground pressure for a smoother, safer ride across various terrains. Durable and stable, they are perfect for both daily commuting and off-road adventures, giving you confidence on every journey.
What do they say?
Specification & Geometry
Size & Fit
Geometry
Performance

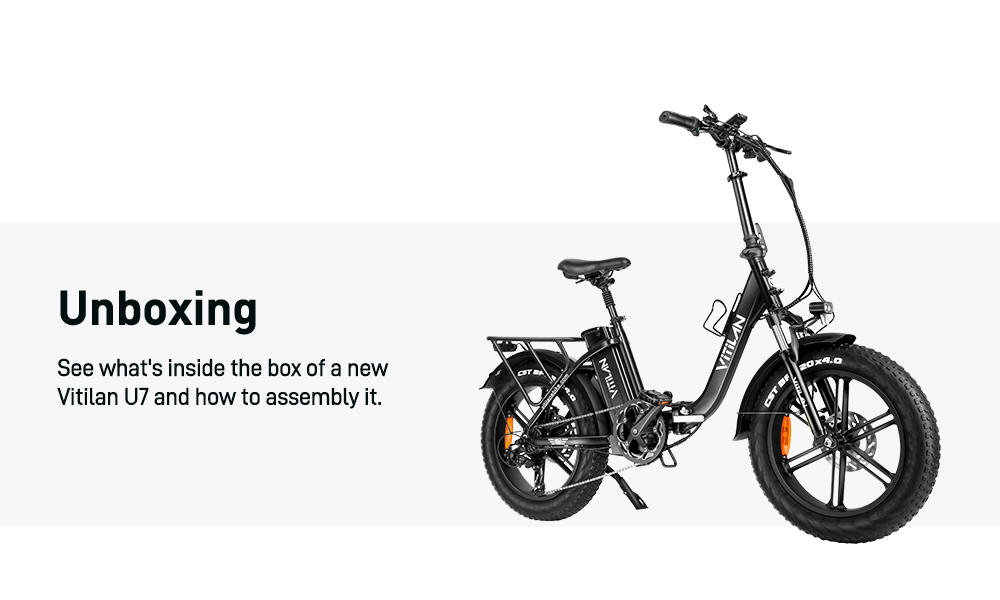

Assembly Video
Parts
Size
Total Length
68.5"
Wheelbase
48"
Minimum Seat Height
33.8"
Maximum Seat Height
37.4"
Stand Height
16.93"
Headlebar Length
24.1"
Recommended Height
5’3”-6’5”
Folded Length
38.6"
Folded Width
22"
Folded Height
31.5"
Product Data title11
Product Data value11
Product Data title12
Product Data value12
Product Data title13
Product Data value13
Product Data title14
Product Data value14
Product Data title15
Product Data value15
- Recommended Rider Heights: 5'3" ~ 6'5"
- Tires: 20" x 4" Fat Tires
- Front Fork: Suspension Front Fork
- Kickstand: 6061 Aluminum Kickstand
- Fender: Included
- Weight: 70 lbs
- Battery: 48V/20Ah SAM-SUNG Lithium Battery
- Battery Certification: UL 2271
- Hub Motor: 750W Brushless Motor
- Gear Shifting: Shimano 7-Speed Gear System, 1–7 levels
- Pedal Assist Level: 1~5 Level
- Throttle: Twist Grip Throttle
- Controller: 48V / 25A
- Display: 48V LCD Display
- Charger: US Standard 48V 3.0A Smart Charger
- Bell/Horn: Electric Horn
- Rear Light: Signal Turn Light / 48V LED Light
- IP Level: IPX6
- Mile Range: 65–104 km
- Standard Speed: 25 KM/H
- Total Payload Capacity: 330 lbs
U7 FAQS
We have pre-assembled 90% of the bike for you. You only need to tighten the wheel bolts, install the seat and handlebars, and attach a few remaining parts to be ready to ride.
The U7 covered for 18 months.
For detailed warranty terms, please refer to our Warranty Policy.
The U7 is set with a default speed of 25 km/h, making it ideal for outdoor exploration and long-distance rides. When the speed limit is removed, the e-bike can reach a top speed of up to 45 km/h. For instructions on how to safely unlock the speed limit, please contact our customer service team.
The U7 meets the IPX6 waterproof standard, protecting against light to moderate rain and splashes.
Avoid riding in heavy rain or extreme weather, and never leave the bike exposed for long periods. Ride safely at all times.
The estimated delivery time is 2–9 business days. Certain exceptional situations may result in logistic delays.
A fat tire e-bike could handle varieties of riding conditions, especially off-road riding. As it is also foldable, you can easily load it into your car truck.
You need to insert the key into the battery first, and then turn on it, lastly, you can press the your display’s start button and set up other operations.
