Standard: 5’3”-6’5”

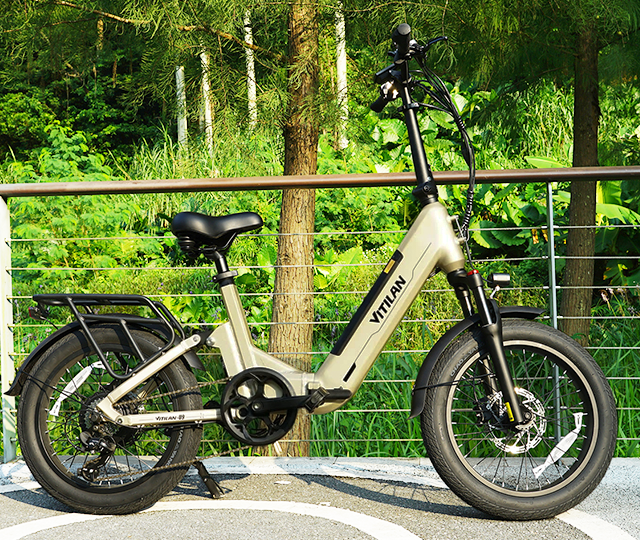

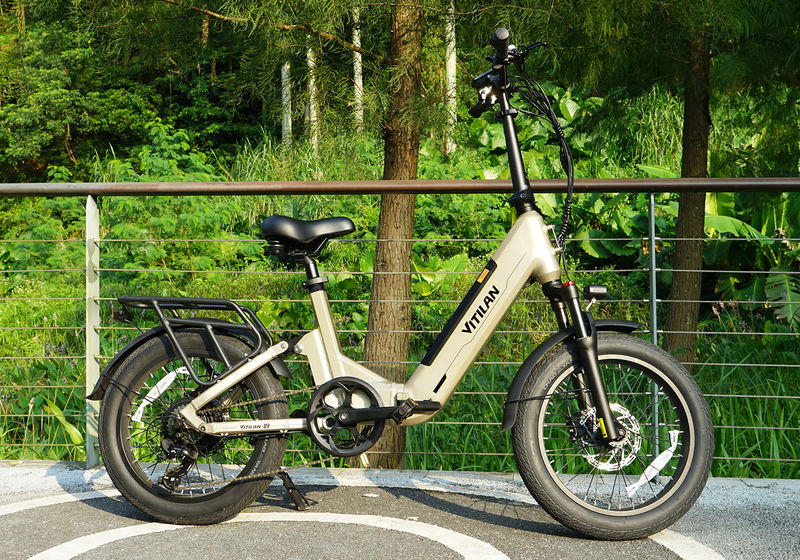

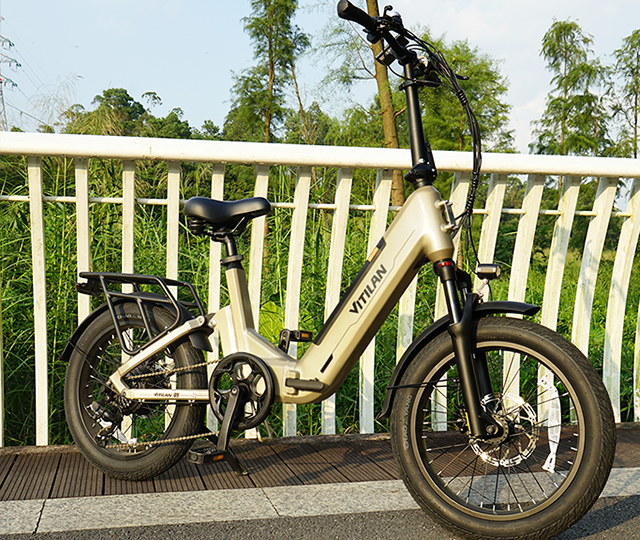

The U9 is the next evolution in Vitilan’s U-series of step-through electric bicycles, designed for riders who require a comfortable riding experience whilst tackling more challenging terrain. Driven by the same spirit of adventure and everyday practicality, it takes the original vision a step further through sophisticated engineering. From rugged trails and snow-covered paths to city streets, the U9 offers a seamless riding experience without compromise.
Dual suspension, a torque sensor, knobby tyres, and hydraulic disc brakes – all ensure a fully optimised all-terrain e-bike system that operates as a unified machine.

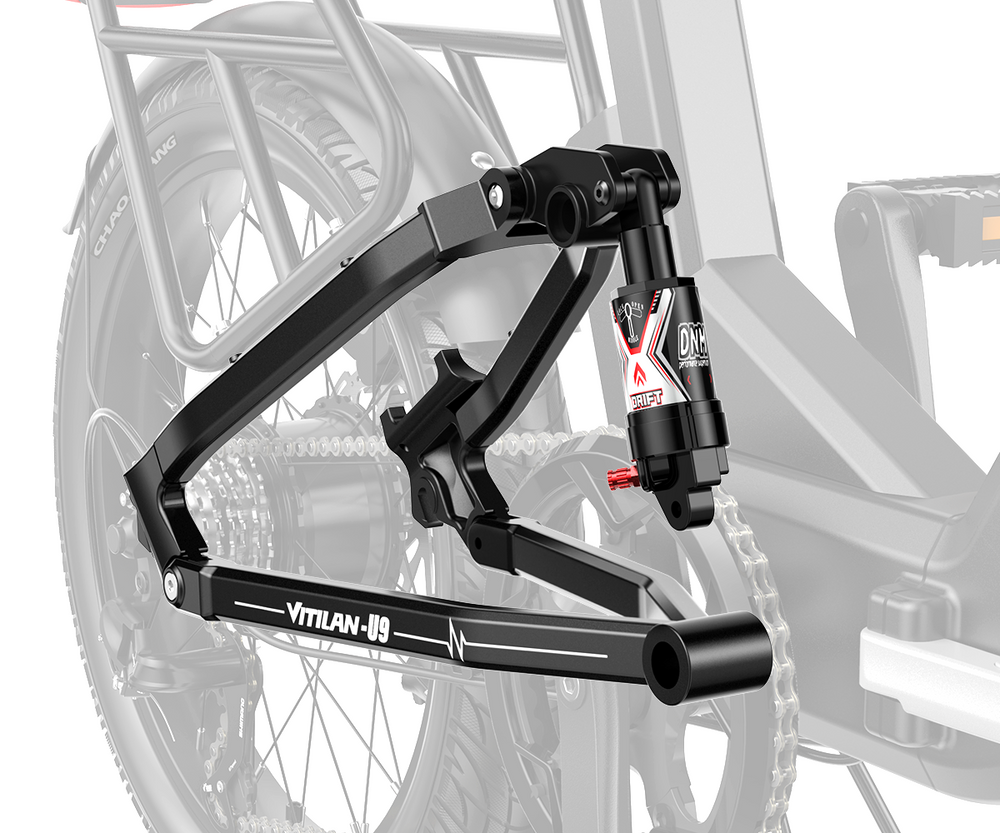

Full-Terrain Suspension for Any Ride
A responsive front suspension and upgraded rear soft-tail system absorb bumps and rough terrain for a smoother, more comfortable ride. Built to handle hard landings and tough trails, the rear suspension keeps the frame stable while reducing wear and maintenance.

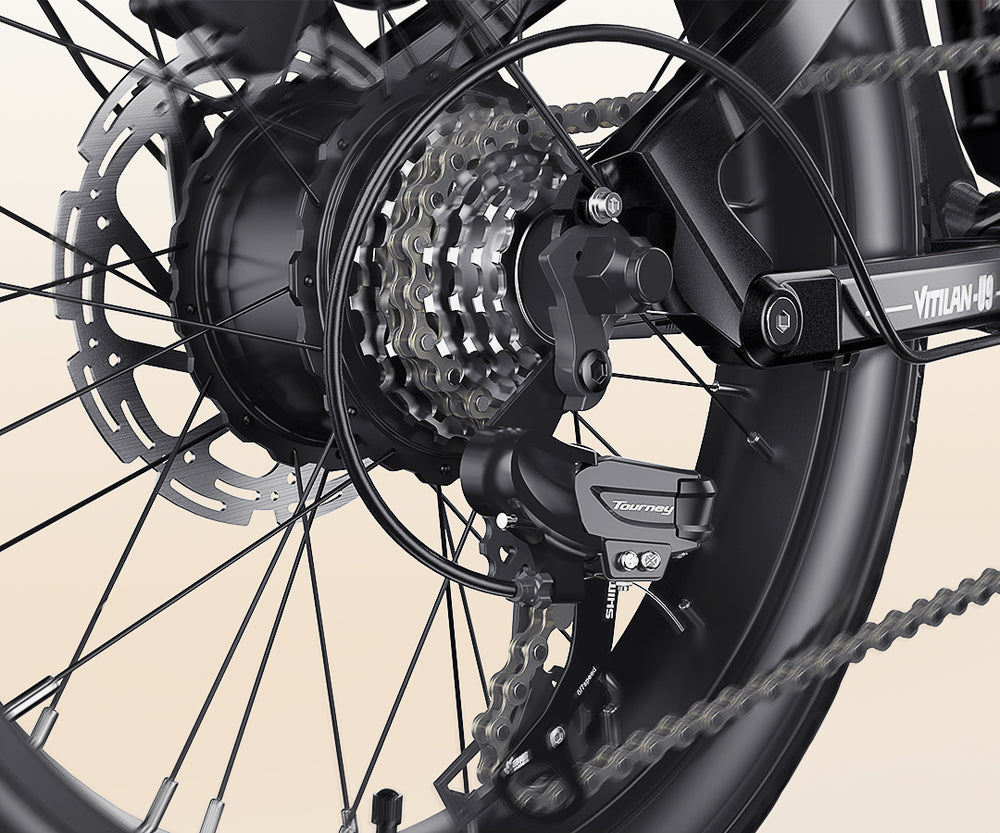

500W Upgraded Brushless Gear Hub Motor
The Vitilan U9 is equipped with a motor that delivers 500W of continuous power and 960W of peak power, producing 65Nm of torque. Combined with a torque sensor, this means you can easily navigate up and down hills. From rugged trails and snowy paths to city streets, U9 delivers one seamless ride without compromise.
48V 15Ah LG Battery
Powered by LG’s 48V 15Ah battery, the U9 offers outstanding range, ensuring you can tackle long rides with complete peace of mind. Spend less time charging and more time enjoying the thrill of the ride – because your adventures should never be limited by battery life.
Cycling Upgrades
Enjoy a smooth ride and precise control. Smart torque sensor translate every movement into smooth motor power.
More Features

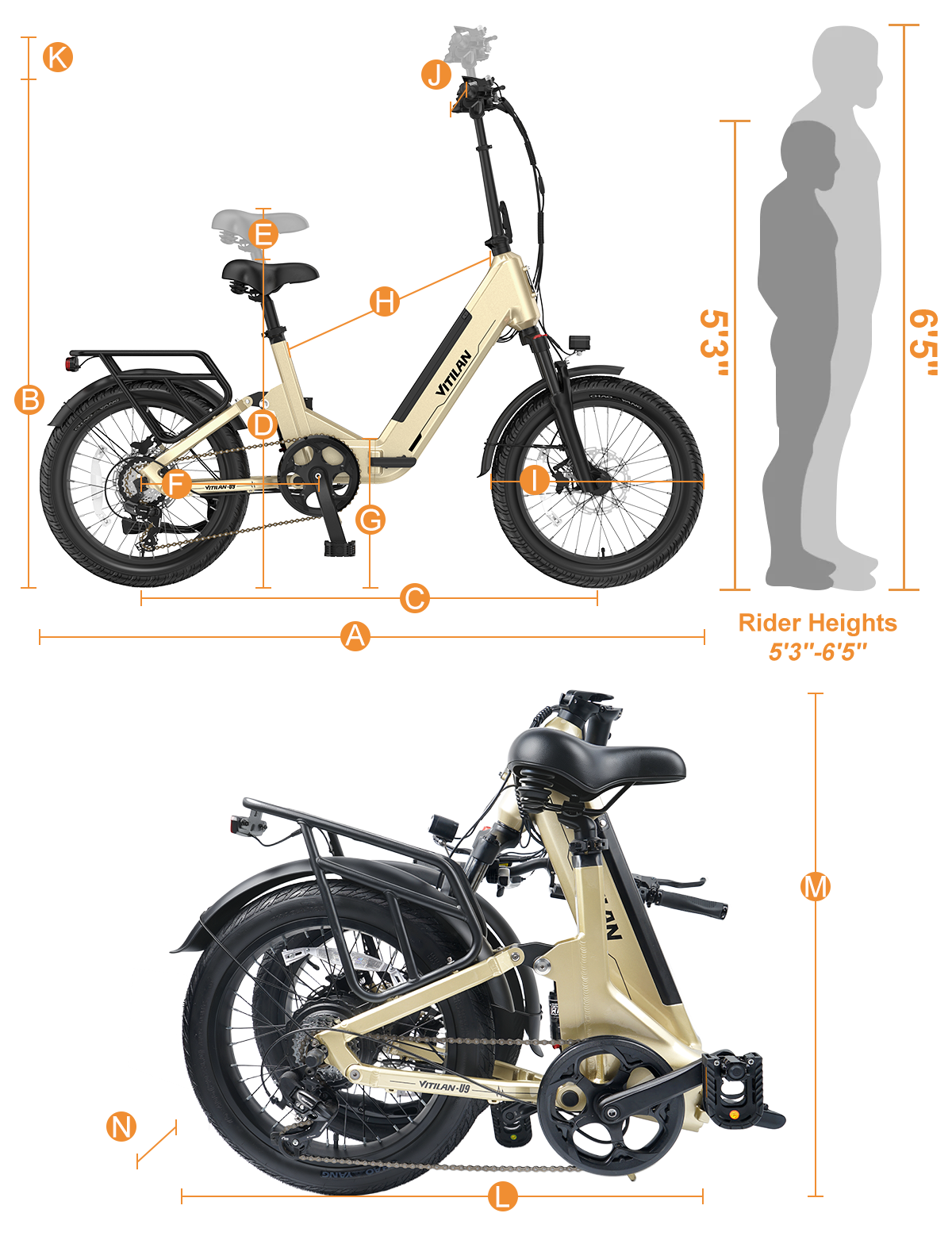

Specification & Geometry

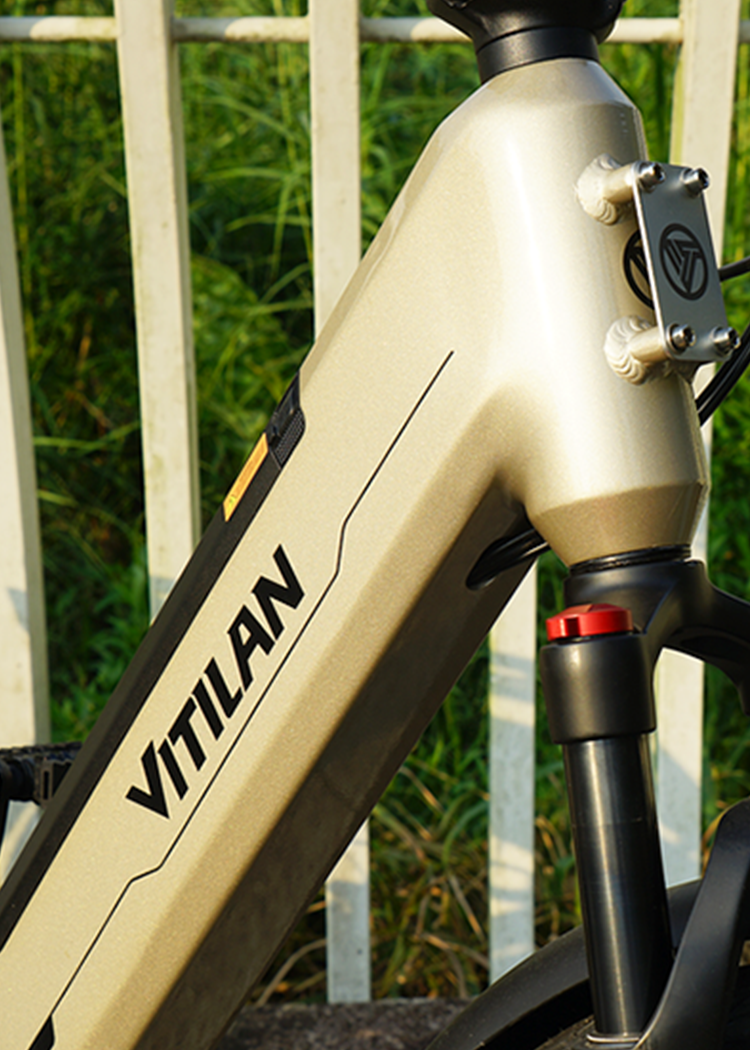

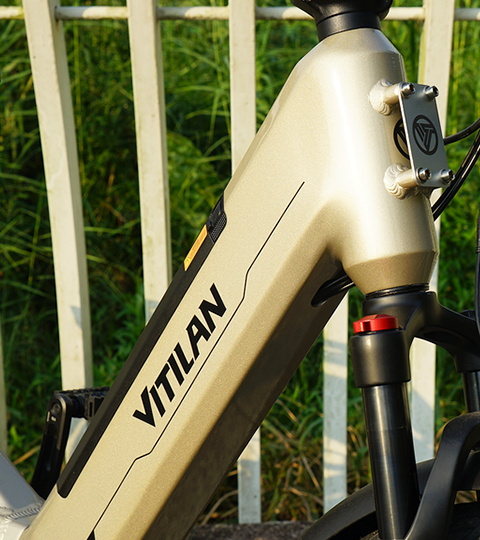

- Frame: Aluminum alloy, fully integrated & lockable down tube battery

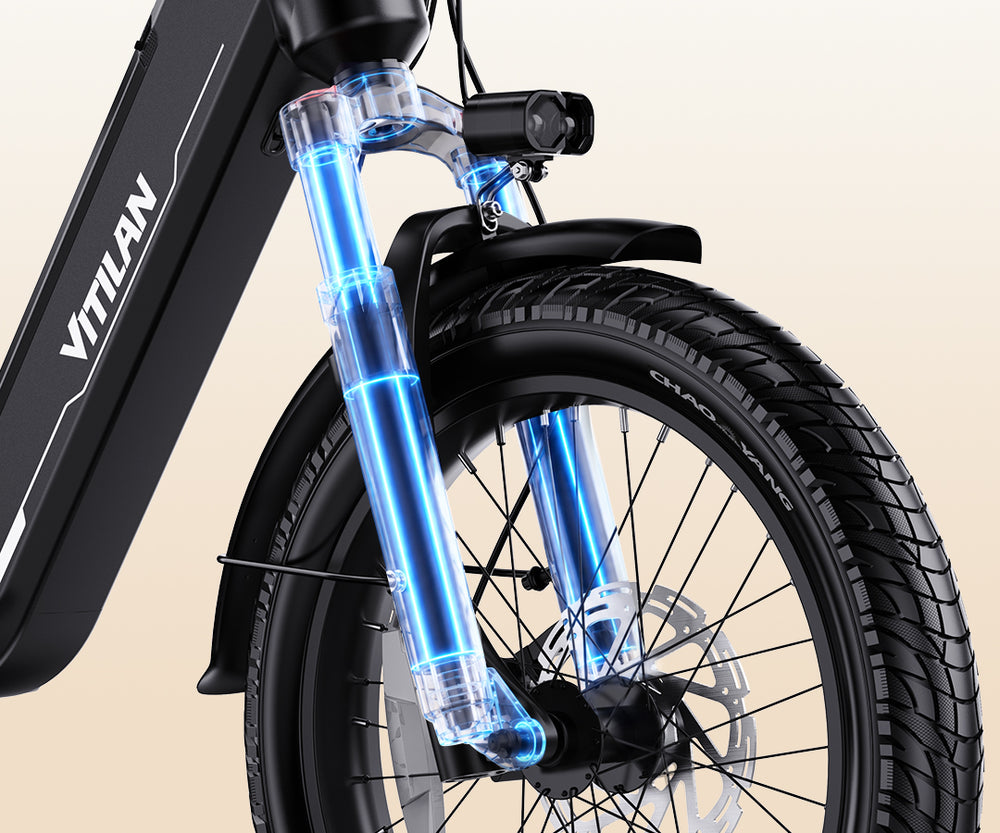

- Fork: Hydraulic Shock-Absorbing Adjustable Lockout Front Fork, 80 mm travel
- Tire: CST 20 × 3.0”, Chaoyang Tires
- Seat Post: Aluminum alloy, 350 mm × 33.9 mm, quick release clamp
- Crankset: Aluminum alloy, 20" × 3.0", 180 mm
- Pedals: Aluminum-alloy folding mountain bike pedals
- Chainrings: 48T
- Chain: KMC C8 Anti-Rust Chain

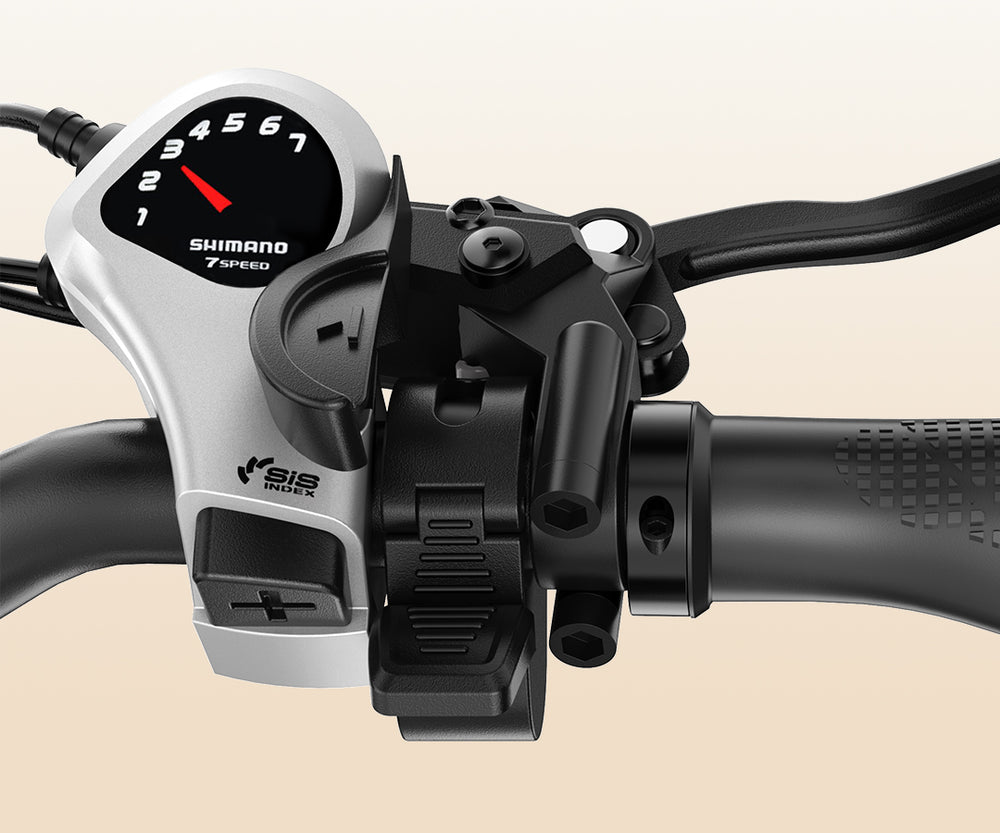

- Shift Lever: Shimano SL-TX50, 7-Speed, thumb shifter
- Motor Hub: 48V 500W (Peak 960W), max torque 65 Nm
- Battery: 48V, 15Ah, 720Wh LG Li-ion, UL certified
- Charger:54.6V 2.0A DC 2.1 Charger
- Display: KD-1926 LCD Instrument Panel, Battery Level and Kilometer Display, Adjustable Cruise Control
- Throttle Assist: Thumb Throttle
- Pedal Assist: Torque Sensor

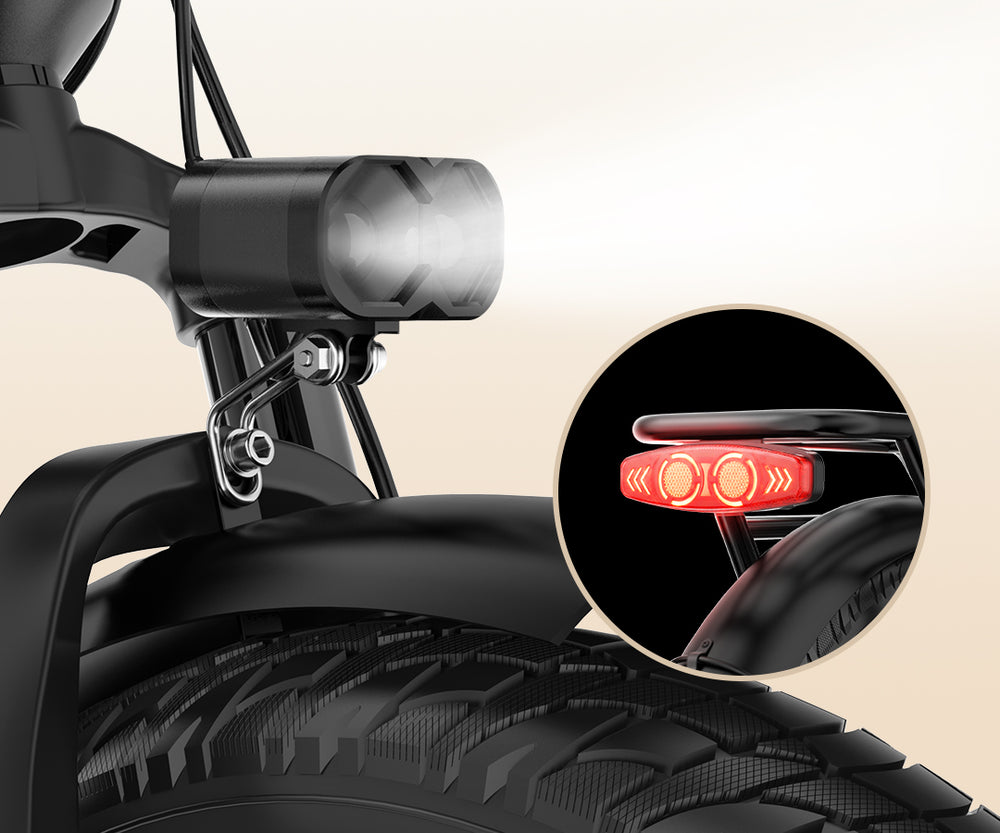

- Headlight: High output integrated LED, IPX6

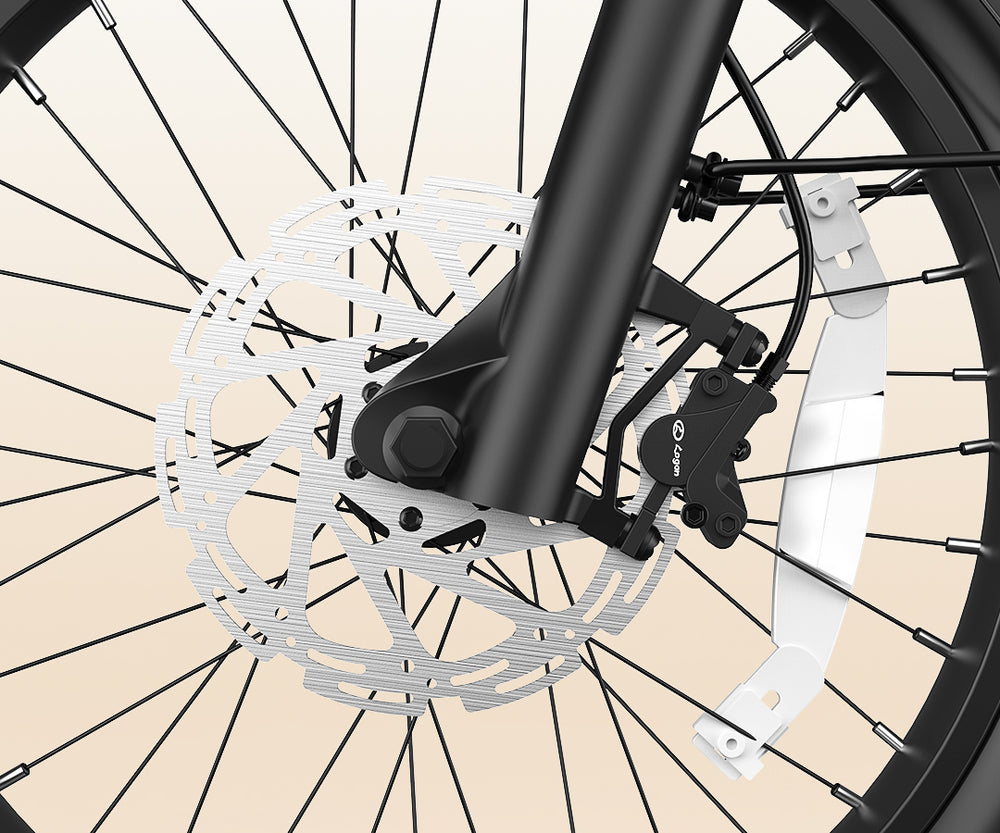

- Brakes: 180 mm front & rear hydraulic disc brakes
- Pedal Assist Range: 80 km
- Throttle Range: 50 km
- Charging Time: 0–80% in 4 hours, 0–100% in 6 hours
- Standard Speed: 45 km/h
- Max Load: 330 lbs
- U9 Weight: 70.5 lbs
- Package Weight & Dimensions: 96.5 lbs; 56.69" × 10.63" × 27.56"
U9 Electric Bike FAQS
The U9 features a step-through frame that makes it easier to get on and off without having to lift your leg over a high top tube. This makes it particularly suitable for frequent stops, everyday commuting and riders who value easier mounting and dismounting. The U9 is recommended for riders approximately 5'3" to 6'5" tall, making it suitable for a wide range of adults.
If easy access is one of your priorities, you can also explore VITILAN’s Step Through Electric Bike range.
The U9 is equipped with a 48V 500W brushless hub motor, with peak power of up to 960W and maximum torque of approximately 65Nm.
This provides useful assistance for everyday urban riding, starts, gentle climbs and changing road conditions. Combined with the torque sensor, the U9 can adjust motor assistance according to how hard you pedal, helping to create a smoother and more natural riding feel.
The U9 is fitted with a 48V 15Ah LG battery, providing approximately 720Wh of capacity.
According to the product specifications, the U9 can provide up to around 80 km of range with pedal assist and up to around 50 km when using the throttle only. Actual range may vary depending on the assistance level, rider weight, gradients, weather conditions, tyre pressure and riding speed.
For daily commuting and weekend leisure rides, this range can help reduce the need for frequent charging.
Yes. The U9 features a folding frame design that helps reduce the amount of space it takes up when stored at home, in a garage or in other limited storage areas.
The folding design is combined with a step-through frame, giving riders both easier access and more convenient storage. This makes the U9 a practical option for riders who value comfort as well as everyday convenience.
If compact storage is an important part of your buying decision, you can also explore VITILAN’s Folding Electric Bike range.
The U9 uses a torque sensor to detect how much pressure the rider applies to the pedals and adjusts motor assistance accordingly.
Compared with a cadence sensor, which mainly detects pedalling movement, a torque sensor can provide assistance that responds more closely to how hard you are actually pedalling. For example, when you pedal harder or begin climbing, the system can provide more support, while lighter pedalling on flatter roads results in gentler assistance.
This creates a more natural riding experience while still giving you the benefit of electric assistance.
The U9’s 48V 15Ah battery takes approximately 4 to 6 hours to charge.
According to the product specifications, charging from 0% to around 80% typically takes about 4 hours, while a full charge takes approximately 6 hours. Actual charging time may vary depending on the remaining battery level, charging conditions and battery status.
Yes. The U9 is supplied with a default maximum speed setting of 25 km/h, in line with European electric bike speed requirements and suitable for everyday commuting and urban riding.
For riders who would like a higher speed setting, the U9 can reach up to approximately 45 km/h once unlocked. For more information about removing the speed limit or adjusting the speed settings, please contact VITILAN Customer Support, and our team will be happy to assist.
