Technical Specifications:
Motor Hub:
48V 500W(peak 960W), max torque 60Nm
Battery:
48V, 15Ah, 720Wh LG Li-ion Battery
Charger:
54.6V, 2.0A, Operates on 110V-240V AC
Display:
LCD Digital Panel
Throttle Assist:
Thumb shifter
Headlight:
High output Integrated LED, IPx6
Pedal Assist Range:
80 KM
Throttle Range:
50 KM
Charging Time:
0-80% 4 Hours,0-100% 6 Hours
Power & Energy:
Peak Motor
500/960W
Top Speed
40KM/H
Max Range
50-80 KM
Battery
48V 15Ah
Gear Shifting System
9 Speed
Charging Time
4-6 Hours
Size
Standard: 5’3”-6’5”
SIZE
Total Length
75.6"
Handlebar Height
42.5"
Minimum Seat Height
34.3"
Maximum Seat Height
40.2"
Top Tube Length
23.6"
Wheelbase
52.4"
Torque-assisted Dual-suspension All-Terrain Electric Bike

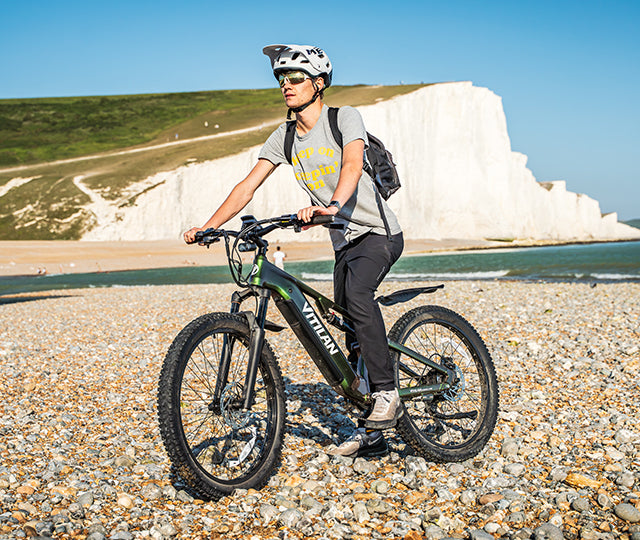

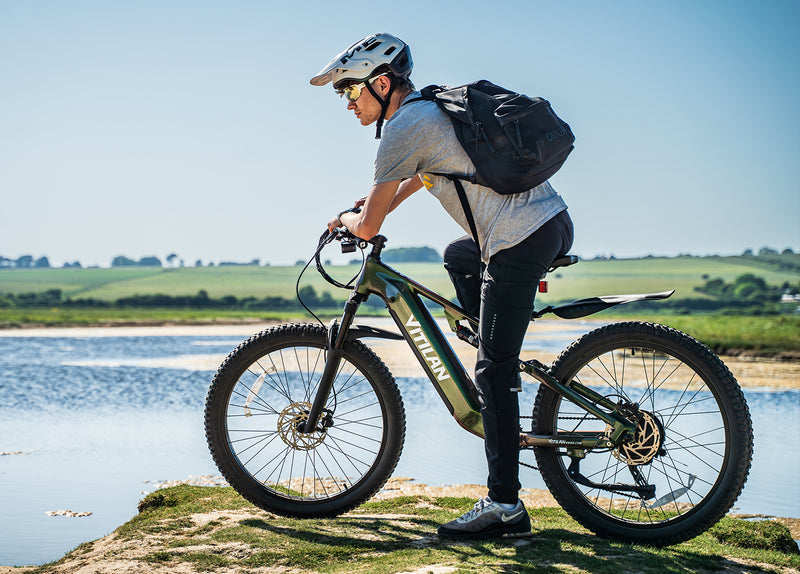

The Vitilan M5 is a full-suspension electric endurance mountain bike that combines a powerful motor, long-travel suspension, a torque sensor, and modern geometry at an affordable price. Its aluminium frame is equipped with a single-leg air suspension fork at the front and a DNM air shock at the rear, ensuring a comfortable ride and confident handling on steep descents, rocky terrain, and root-covered trails, whether in bike parks or on natural singletrack.
48V 15Ah LG Lithium-ion Battery
Equipped with a 48V 15Ah LG lithium battery, the M5 delivers enhanced power and an extended riding range of up to 80 km. The removable battery design adds flexibility and convenience, allowing for easy charging and expanded riding options.
720Wh
Battery Capacity
90 KM
Miles Per Charge
2.0A Charger
Quick Charge
500W Upgraded Brushless Gear Hub Motor
With 500W(960W Peak power)of power and 60Nm of torque, this high-performance brushless gear hub motor significantly improves throttle response and torque sensing performance. Combined with Shimano’s 9-speed gear system, it meets the demands of high-speed riding (40km/h) and hill climbing. It also helps you tackle even the roughest terrain with ease.
The default speed limit is 25 km/h. If you wish to have this limit removed, please contact us.
500W
Motor
25 KM/H
Standard speed
60 Nm
Torque
Control Your Ride
Shimano's 9-speed drivetrain enables precise gear control. Quiet, swift shifting ensures smooth pedaling for efficient commutes or off-road rides.
Torque Sensor
Instantly adjusts motor output to match your pedaling force and cadence. Delivers smooth, natural, and efficient rides on trails or streets.
Conquer Rough Terrain
The Vitilan M5 is equipped with front and rear suspension systems designed to enhance riding comfort and handling. The rear four-link suspension system features adjustable rebound damping and a lockout mode to optimise pedalling efficiency, whilst the front air fork ensures front-end stability. These features provide excellent shock absorption and front-to-rear balance when climbing steep gradients or accelerating rapidly from a standstill, making it easy to tackle rough terrain.
More Features

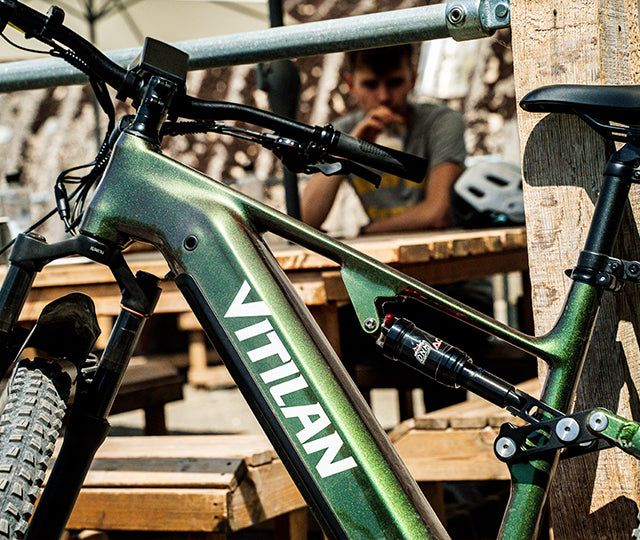

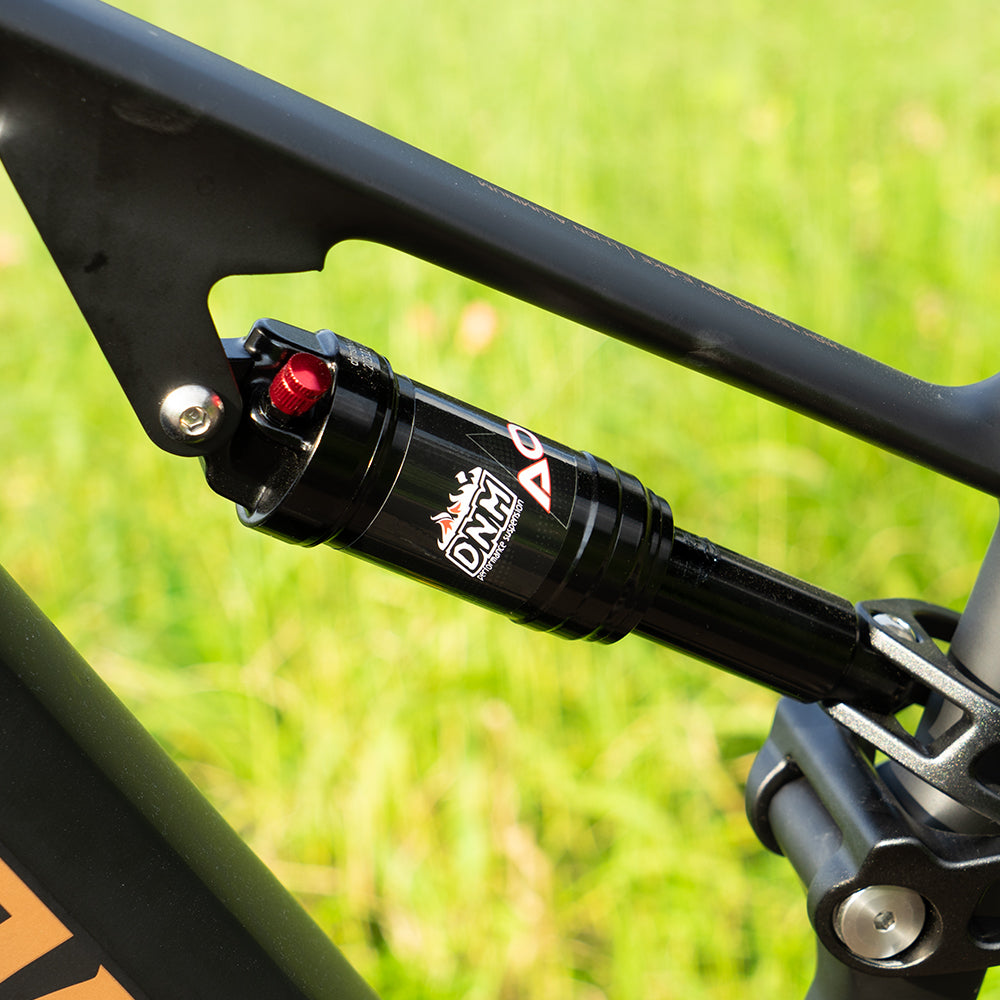

DNM Center Shock Absorber
The DNM 50mm mid shock absorbs rear-wheel impacts with precision. Delivers a smoother ride over rocky or uneven trails.

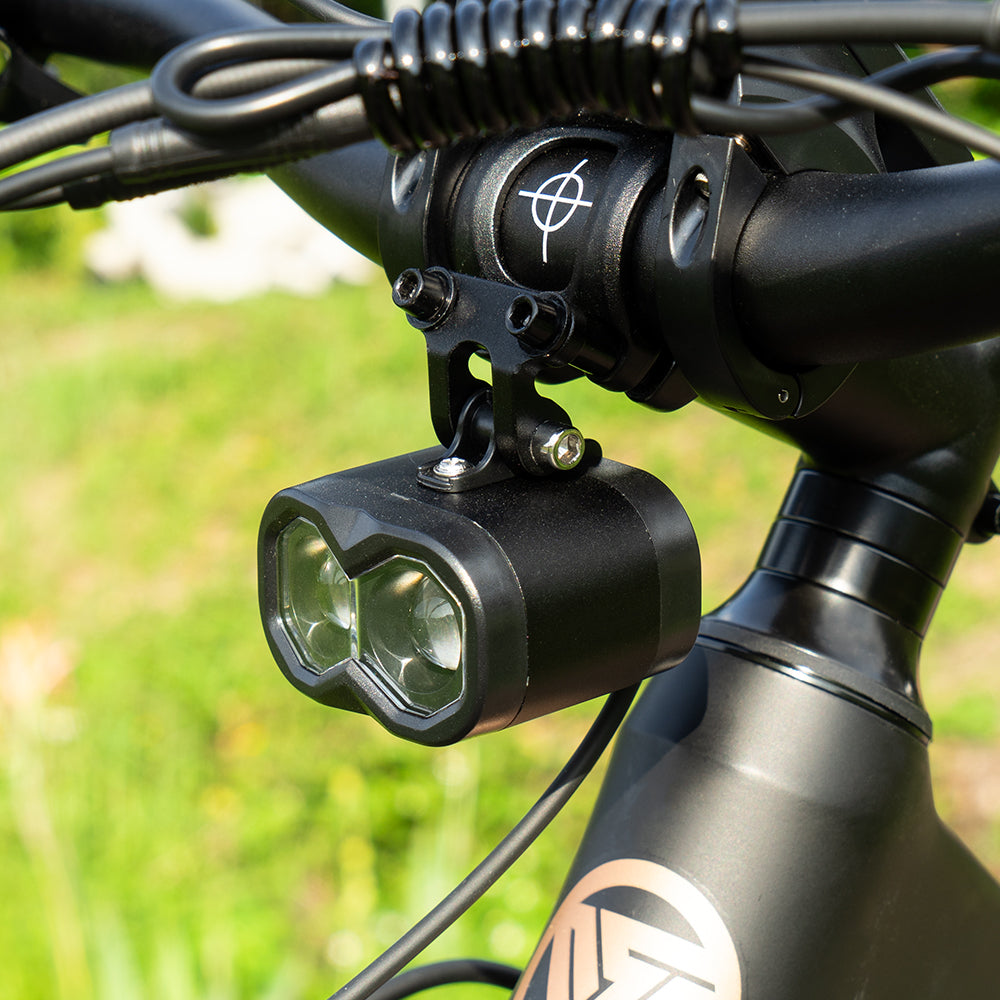

Integrated Headlight
The bright 48V front headlight and rear reflectors provide clear illumination, ensuring safer cycling both day and night. The integrated rear indicators enhance visibility and serve as an effective safety warning when cycling in areas with heavy traffic or large crowds.

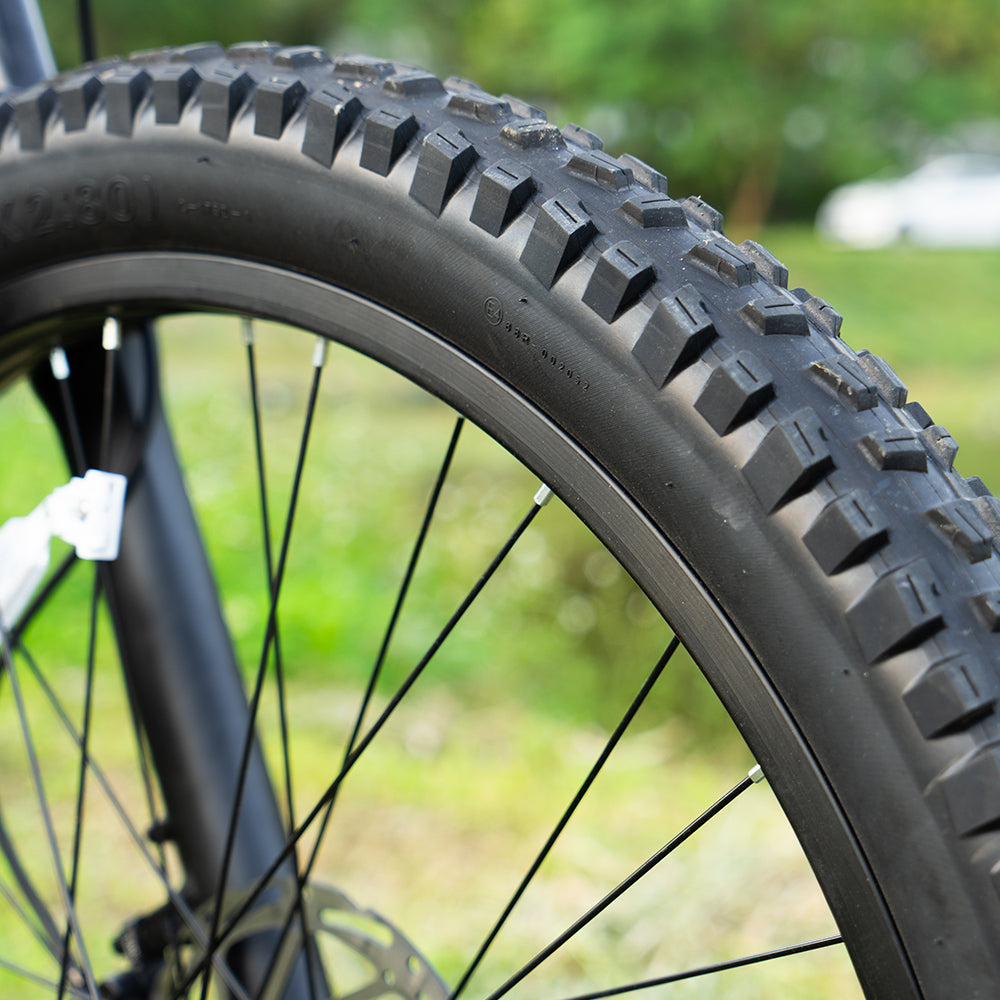

CST Puncture-Resistant Tyres
The 27.5×2.8-inch puncture-resistant tyres help you navigate both flat and rugged terrain with ease. The non-slip, wear-resistant CST tyres effortlessly tackle sandy paths, dirt tracks, grassy areas, mountain trails, footpaths and hilly terrain.

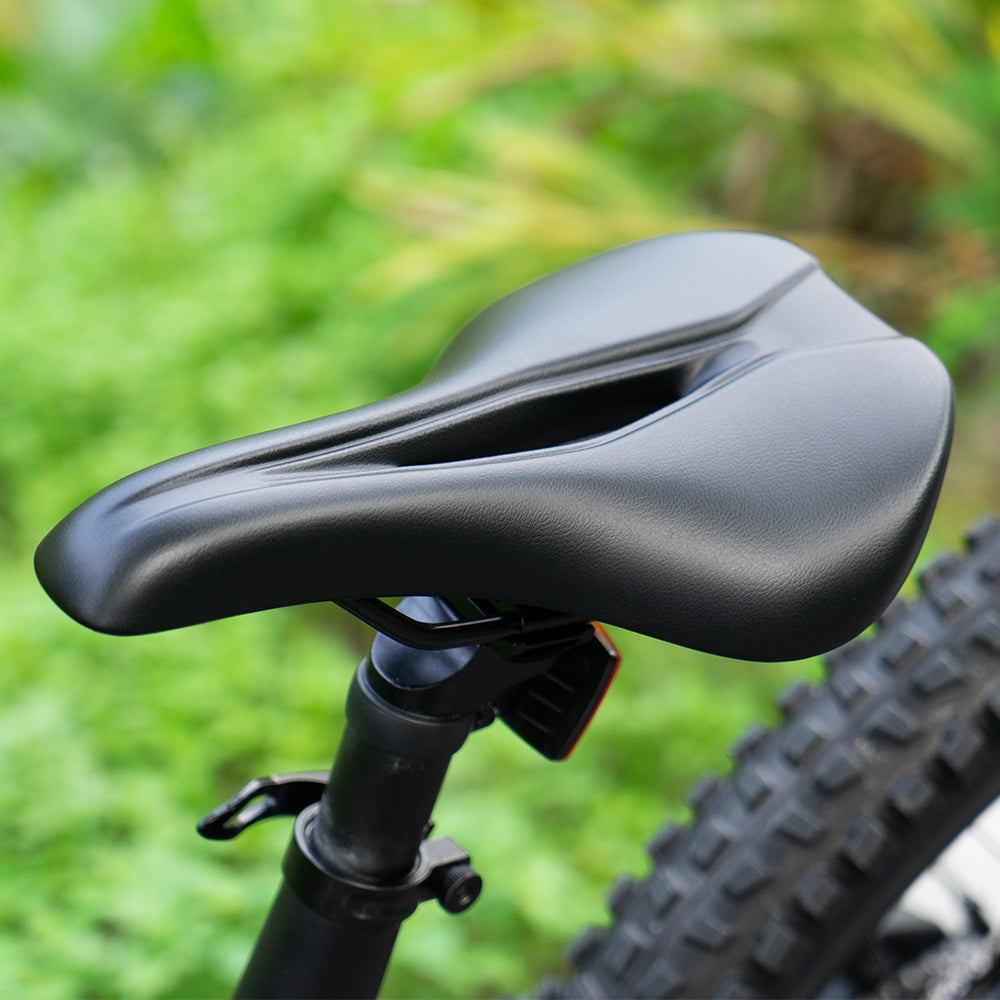

Soft Bike Seat
M5 seats are ergonomically designed to fit your body. They are shaped to match your riding position and will free you from strain and fatigue caused by long rides.

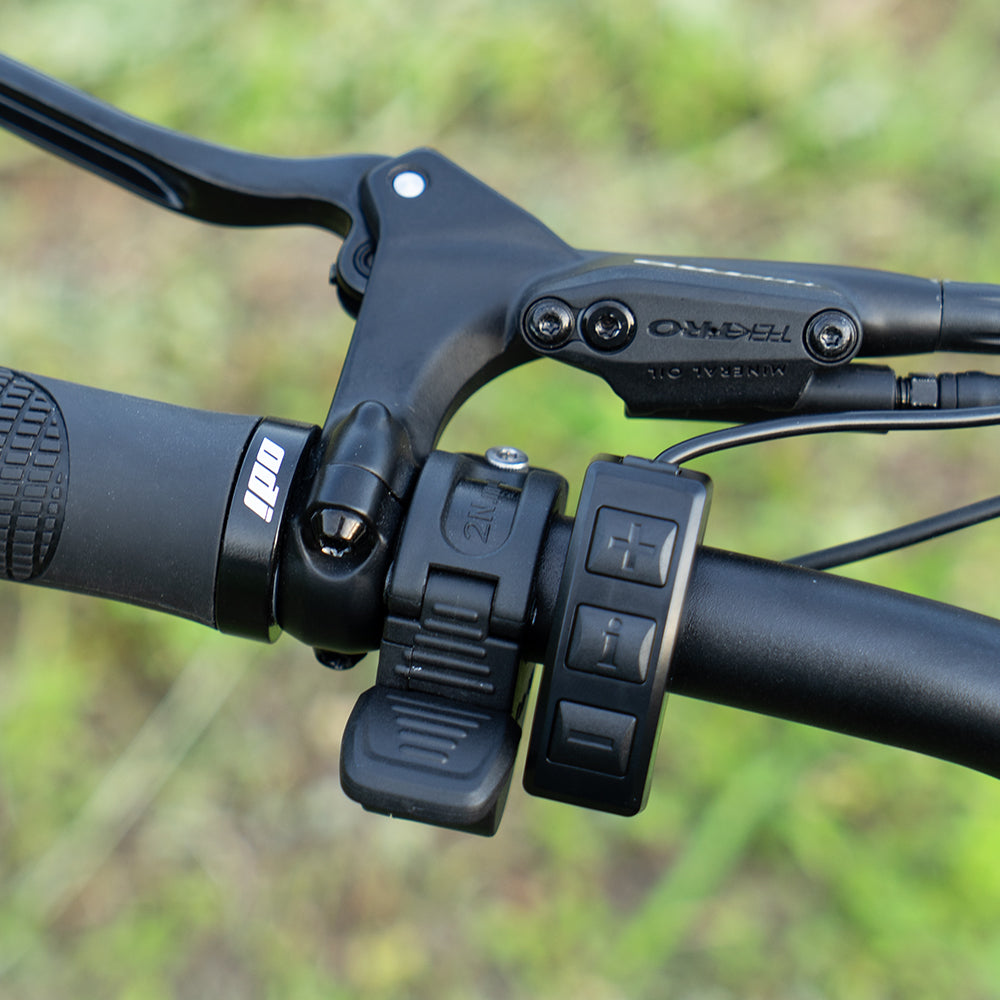

Thumb Throttle
Thanks to the assist sensor, you can save both time and energy whilst cycling. With the Thumb Throttle, you can easily keep up with traffic and navigate rush-hour journeys with ease, even without pedalling hard.

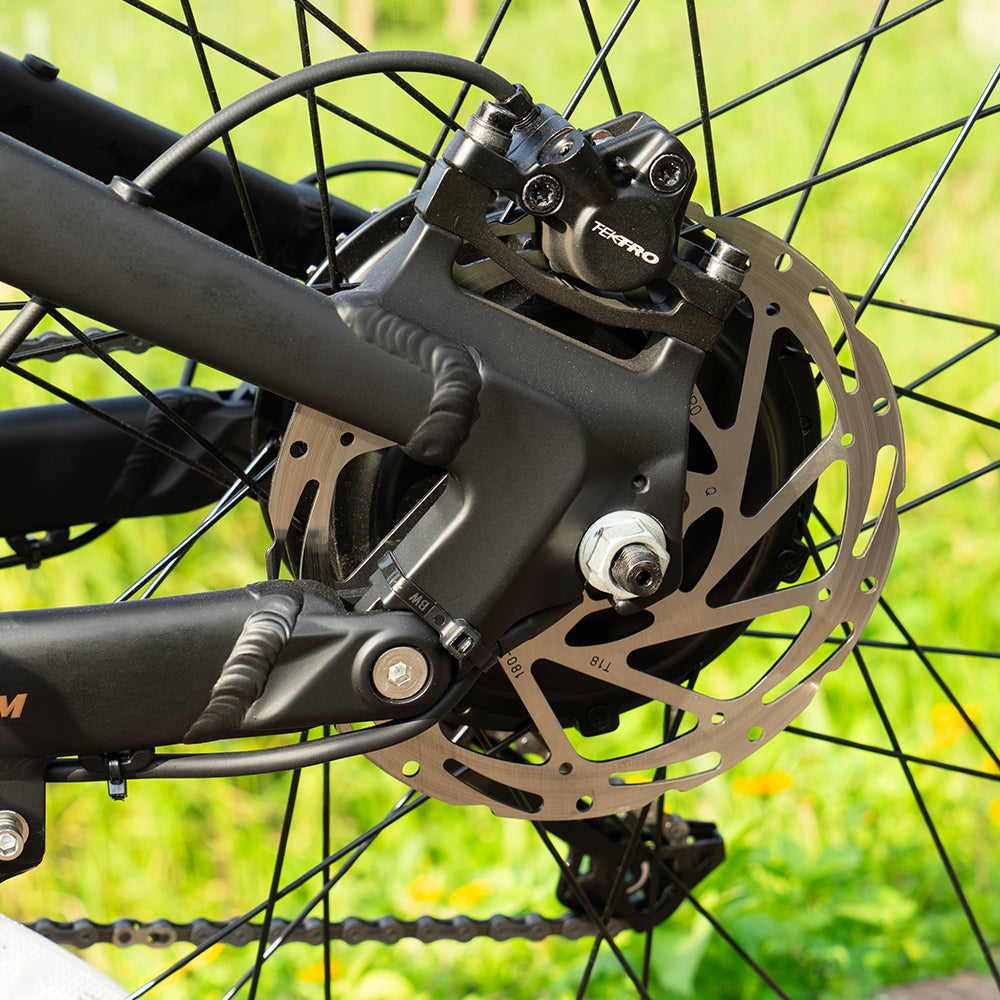

Instant Braking
Instant Braking Quad-piston hydraulic brakes double the stopping power. Delivers instant response with a light touch on levers, ensuring precise control and safety on complex terrain.
Air Suspension Front Fork
The air suspension front fork effectively absorbs bumps and shocks on rugged or uneven routes, significantly reducing vibration and rider fatigue.
Specification & Geometry
Size & Fit
Geometry
Technical
Performance

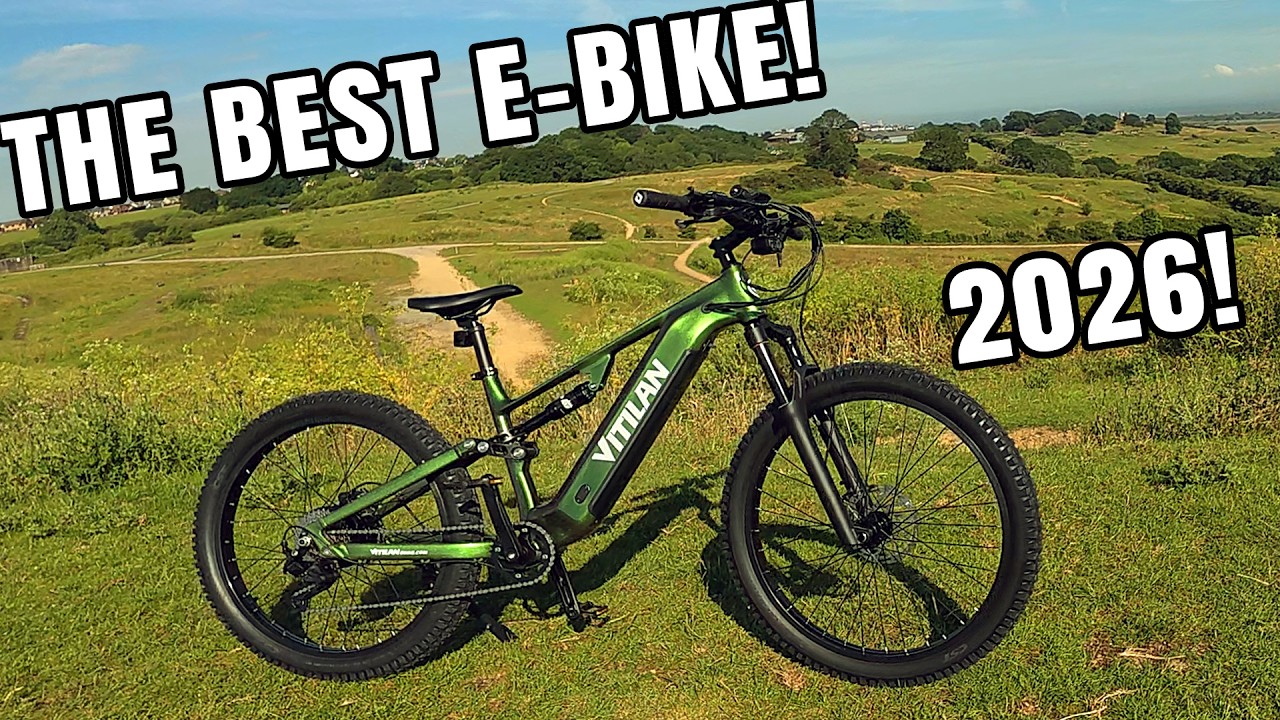

Assembly Video
Parts
Size
A.Total Length
75.6"
B. Handlebar Height
42.5"
C.Minimum Seat Height
34.3"
D.Maximum Seat Height
40.2"
E. Top tube length
23.6"
F. Frame to Ground Height
16.9"
G. Handlebar length
28.0"
H. Head tube length
27''
I. Wheelbase
52.4"
Recommended Height
5'5''-6'7''

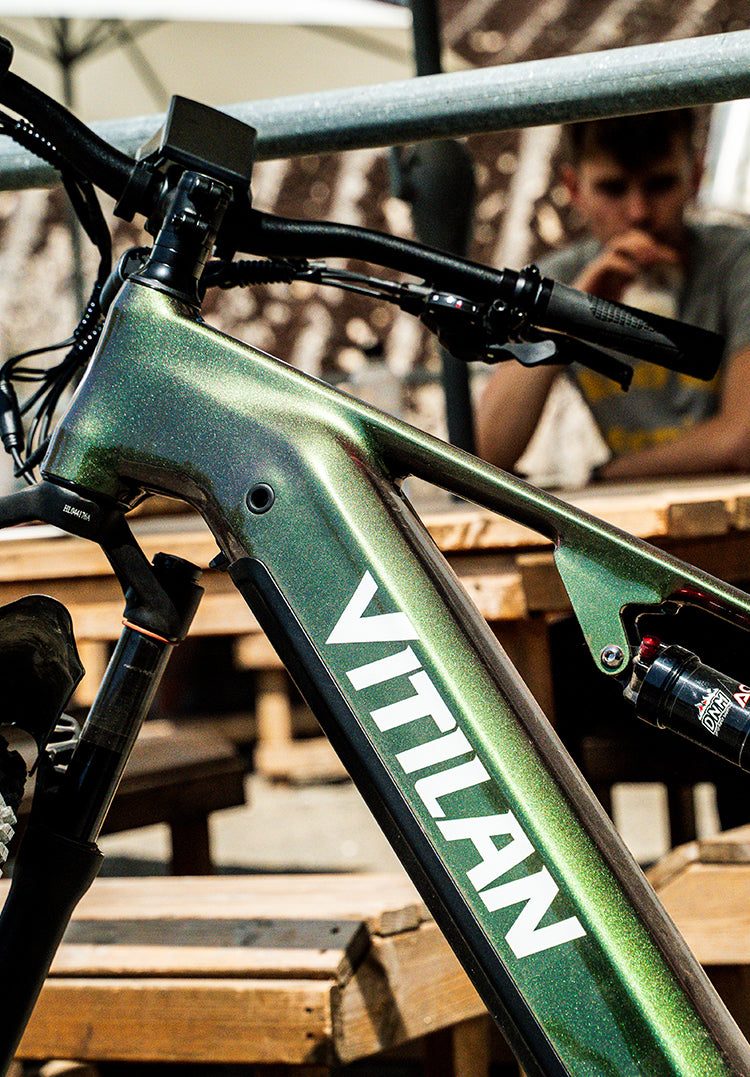

- Frame: Aluminum alloy, fully integrated & lockable down tube battery
- Fork: Single-sided shock-absorbing air-pressure front fork with DNM air pressure shock absorber
- Tire: CST 27.5” × 2.8”, puncture-resistant liner
- Rims: Aluminum alloy
- Seat Post: Aluminum alloy, 300 mm × 30.4 mm
- Crankset: Aluminum alloy, 170 mm
- Pedals: Full aluminum mountain bike pedals (with pegs)
- Shift Lever: Shimano SL-U4000, 9-Speed
- Chain: Anti-rust chain
- Motor Hub: 48V 500W (Peak 960W), max torque 60 Nm
- Battery: 48V, 15Ah, 720Wh LG Li-ion Battery
- Charger: 54.6V, 2.0A, operates on 110V–240V AC, 50–60Hz
- Sensor: Torque sensor
- Display: Lishui controller with Fahrenheit temperature display, adjustable steering gear shift & adjustable cruise control
- Throttle Assist: Thumb throttle
- Headlight: High-output integrated LED, IPX6
- Brake: TEKTRO 180 mm front & rear hydraulic disc brakes
- IP Level: IPX6
- Max Speed: 40 km/h
- Pedal Assist Range: Up to 80 km
- Throttle Range: Up to 50 km
- Charging Time: 0–80% in 4 hours, 0–100% in 6 hours
- Max Load: 330 lbs
- M5 Weight: 29 kg (63.9 lbs)
- Package Weight: 96.5 lbs
- Package Dimensions: 61.8" × 14.1" × 33.8"

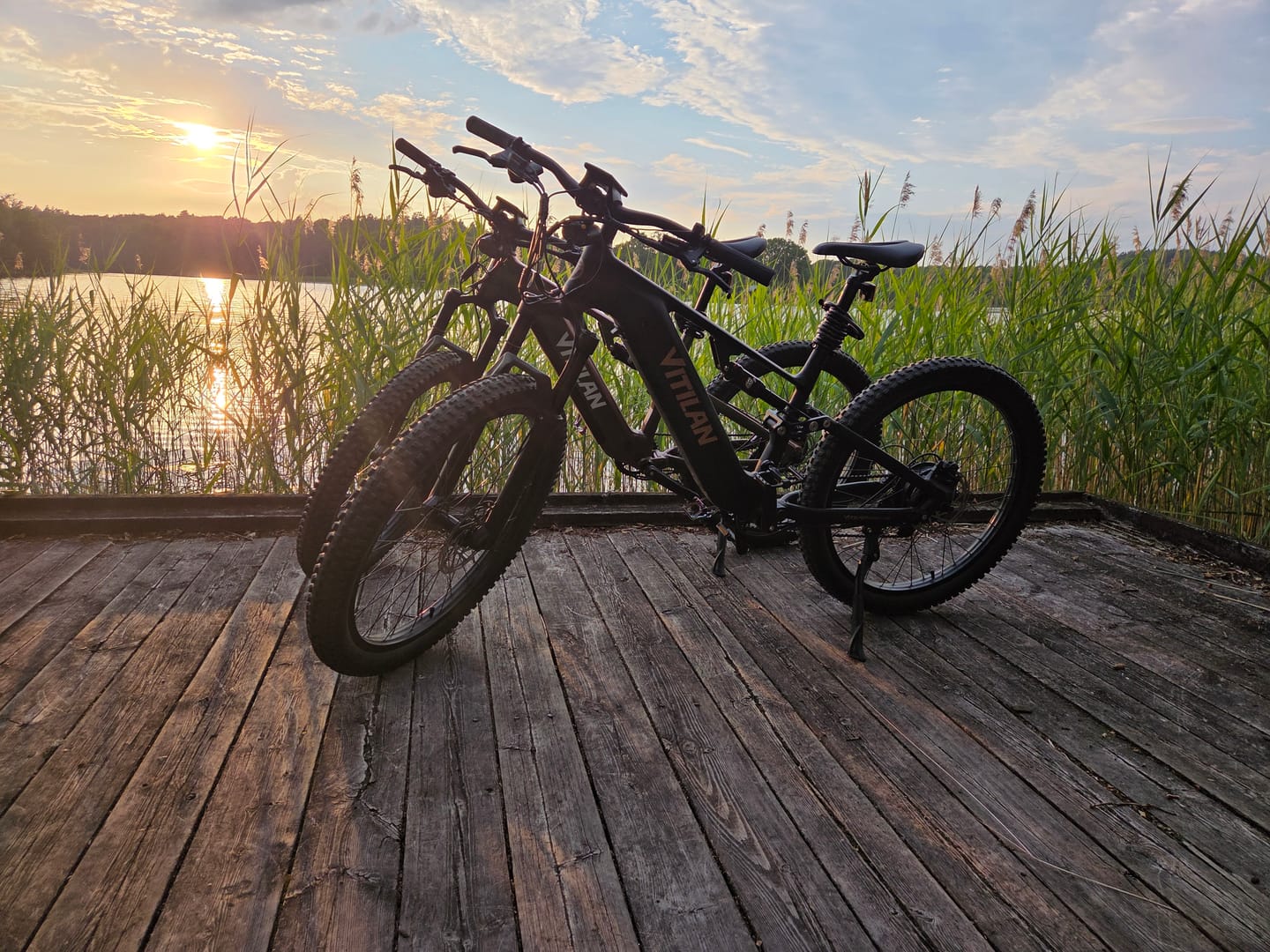

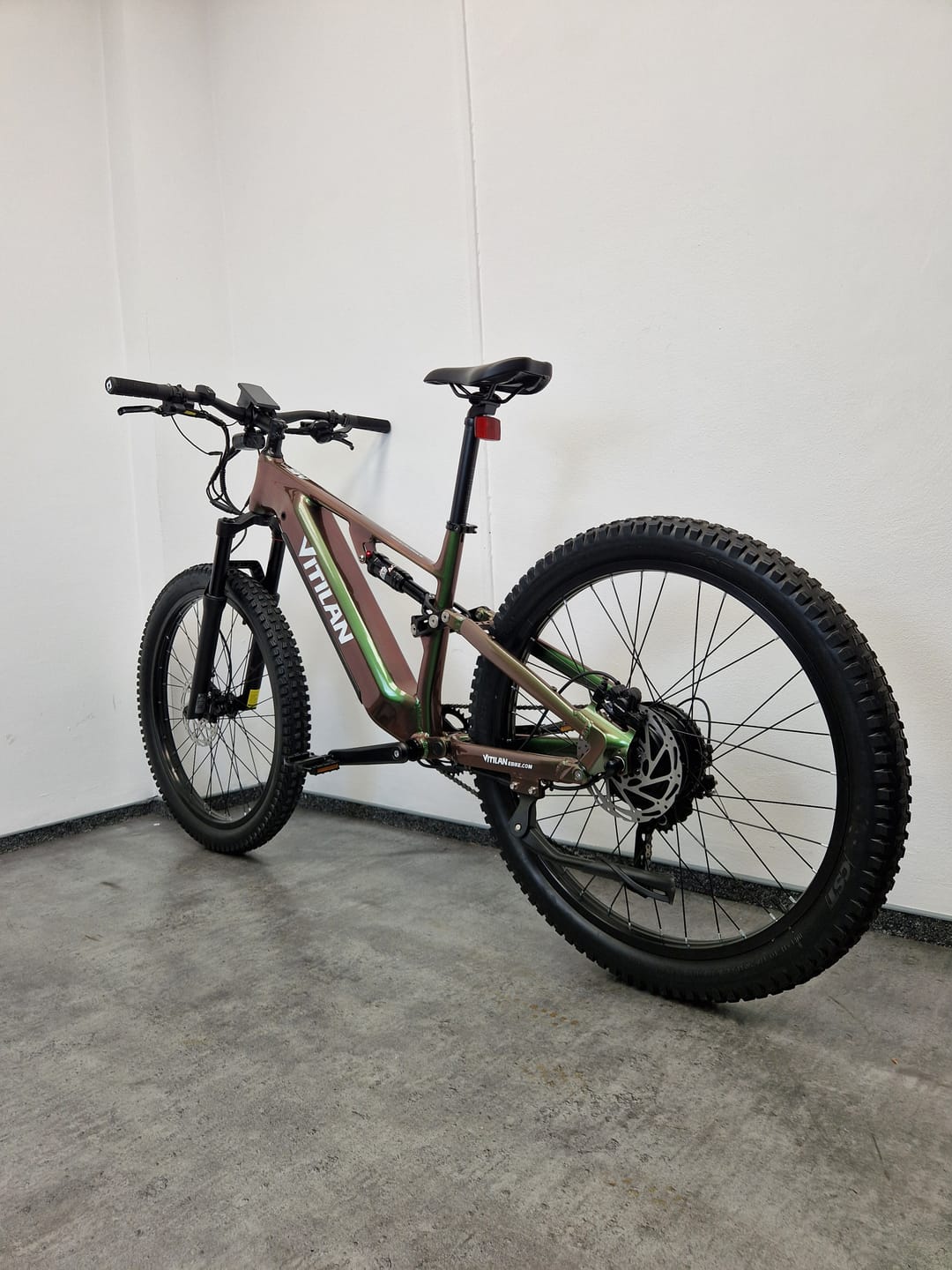

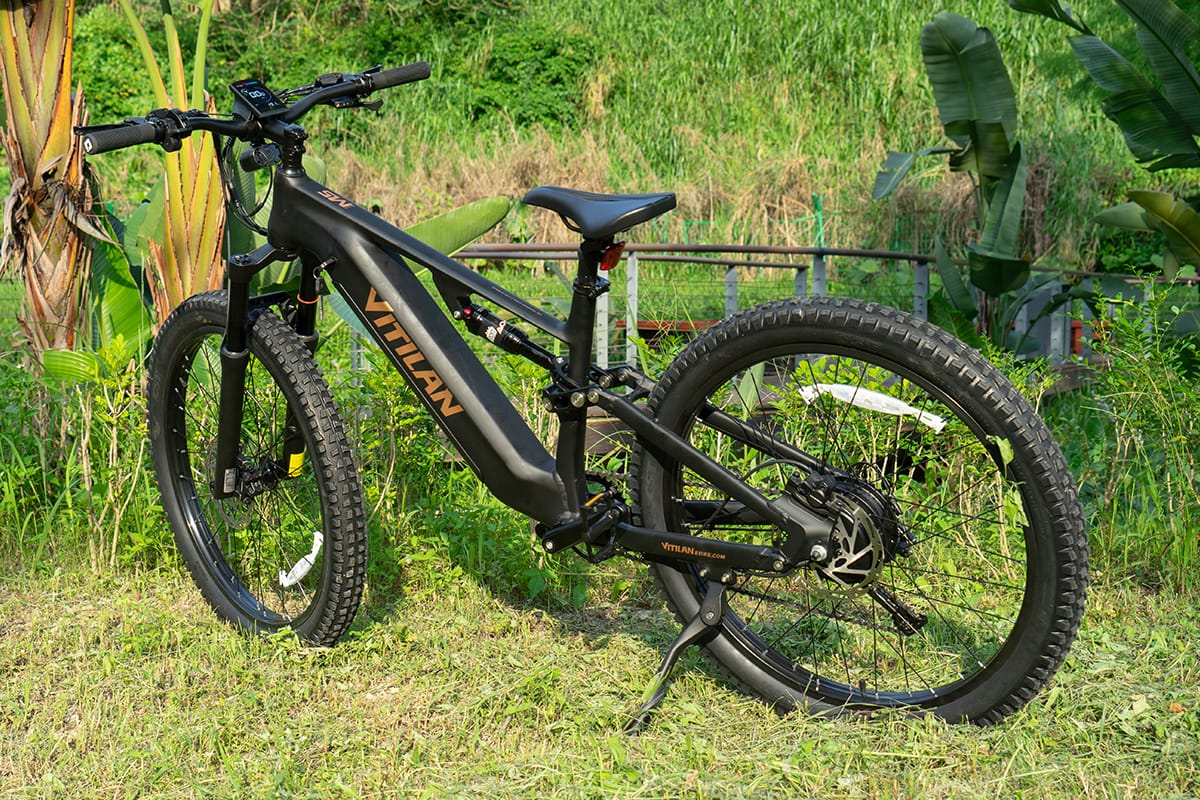

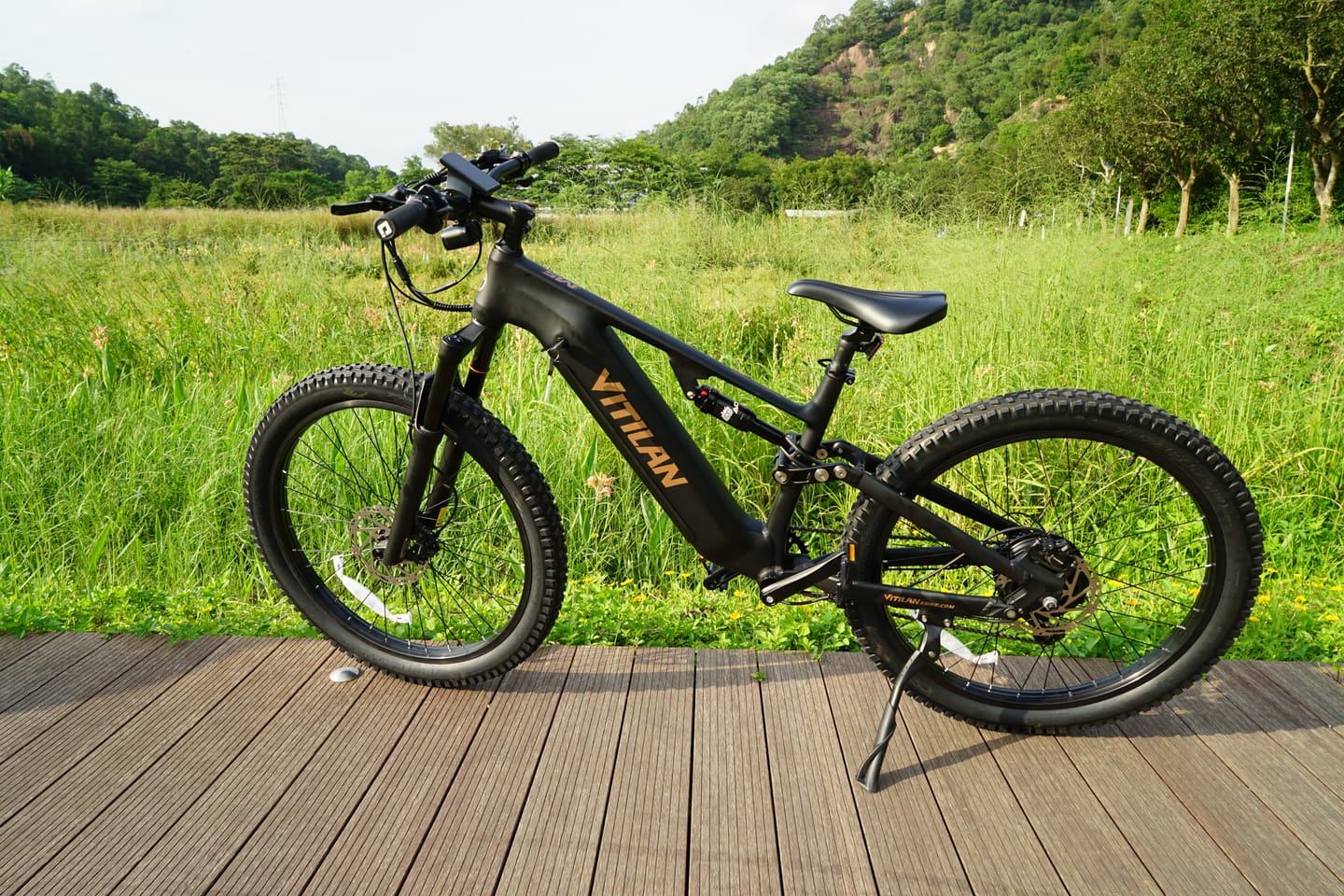

What do they say?
M5 FAQS
Equipped with27.5"×2.8" tires, the M5 delivers excellent grip on gravel, loose dirt, and similar surfaces. Combined with atorque sensor + 500W motor, it provides instant and linear power response. Under normal load, the M5 can climb slopes of up to30°, making it easy to tackle mountain trails and off‑road adventures.
Traditional cadence sensors only detect pedaling speed, often causing abrupt power delivery. The M5'storque sensorinstantly measures how hard you pedal and delivers proportional assistance – linear, natural, and intuitive. No sudden surges – you go as fast or as slow as you want, for a smooth, body‑friendly ride.
The M5 features afront adjustable air fork (with lockout) + rear DNM air shock. Locking the front fork prevents energy loss on climbs and improves efficiency on flat terrain; opening it absorbs bumps and impacts. The rear shock smooths out large drops and continuous ruts, protecting your back. Whether on gravel, tree roots, or uneven trails, the M5 offers extreme comfort and confident handling.
Powered by a48V 15Ah LG lithium‑ion battery, the M5 delivers a real‑world range of50‑80 km(depending on riding mode, terrain, and load). A full charge takes about 4‑6 hours with the standard charger. The battery is removable for convenient indoor charging.
The M5 is set with a default speed of 25 km/h, making it ideal for outdoor exploration and long-distance rides. When the speed limit is removed, the e-bike can reach a top speed of up to 40 km/h. For instructions on how to safely unlock the speed limit, please contact our customer service team.
The estimated delivery time is 2–9 business days. Certain exceptional situations may result in logistic delays.

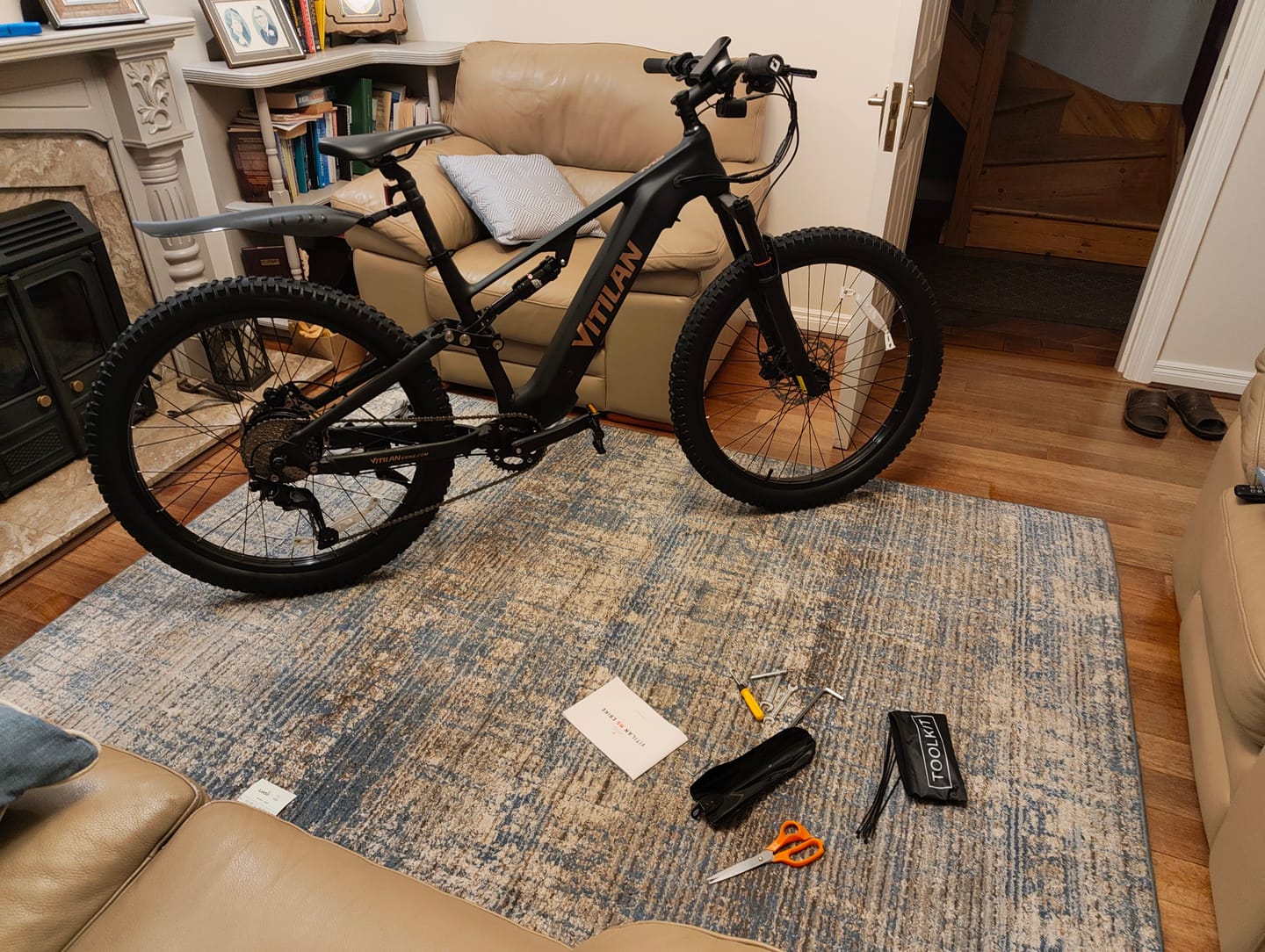

We have pre-assembled 90% of the bike for you. You only need to tighten the wheel bolts, install the seat and handlebars, and attach a few remaining parts to be ready to ride.
The M5 covered for 18 months.
For detailed warranty terms, please refer to our Warranty Policy.
The M5 cable meets the IPX6 waterproof standard, protecting against light to moderate rain and splashes.
Avoid riding in heavy rain or extreme weather, and never leave the bike exposed for long periods. Ride safely at all times.
